About the product

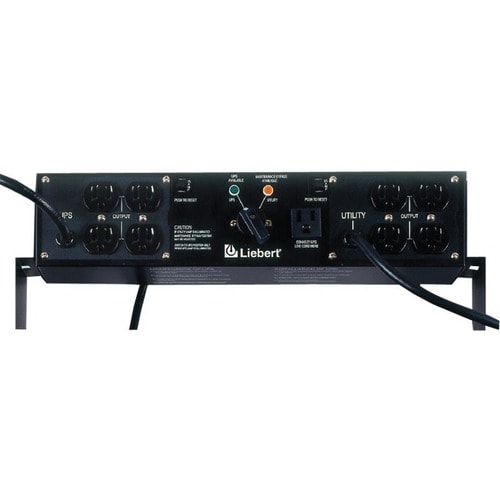

Liebert® MicroPOD allows manual uninterruptible power supply (UPS) bypass, powering the connected load with utility power during UPS maintenance or replacement, to ensure continuous operation of critical computer equipment. The unit has two modes of operation, UPS mode (UPS available) and utility mode (maintenance bypass). The rackmount unit can support any brand of UPS, 3kVA or smaller; in 50Hz or 60Hz models.
Technical Specifications
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Current | 24 A |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Liebert Micro-UPS Systems |
| Certifications & Standards |
|
| Country of Origin | China |
| Physical Characteristics | |
| Form Factor | External |
| Height | 3.50" (88.90 mm) |
| Width | 17" (431.80 mm) |
| Depth | 3.50" (88.90 mm) |
| Technical Information | |
| Protection Type | Signal |
| Surge | |
| Receptacles | 1 x NEMA L5-30R |
| 2 x NEMA 5-15R | |
| 4 x NEMA 5-20R | |
| Plug/Connector Type | NEMA L5-30P |
| General Information | |
| Product Type | Bypass Switch |
| Manufacturer Part Number | MP2-130E |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MP2-130E |
| Product Name | MicroPOD MP2-130E Bypass Switch |
| Product Line | MicroPOD |
| Brand Name | Vertiv Liebert |
