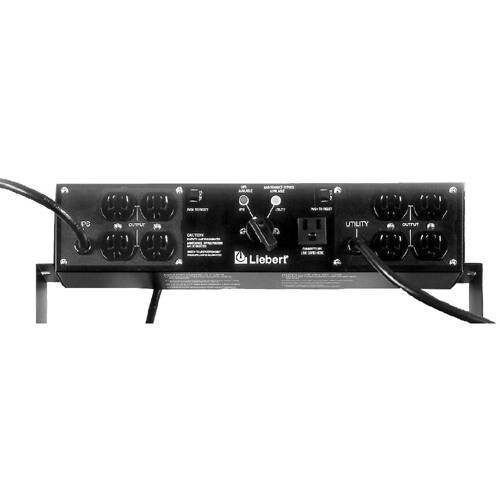

Vertiv Liebert Micro Pod 3kVA PDU - 2 x NEMA L5-20R, 4 x NEMA 5-15R -

Name: Vertiv Liebert Micro Pod 3kVA PDU - 2 x NEMA L5-20R, 4 x NEMA 5-15R -
Brand: Vertiv
SKU: RSC474840
Price: 678.96 CAD
Availability: OutOfStock

$678.96 CAD

~~$760.44 CAD~~ $678.96 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Vertiv Liebert Micro Pod 3kVA PDU - 2 x NEMA L5-20R, 4 x NEMA 5-15R - 3kVA - Cabinet, Rack-mountable

VPN:MP2-130P SKU:RSC474840 UPC:835514003373

Please see below description

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Vertiv Liebert Micro Pod 3kVA PDU - 2 x NEMA L5-20R, 4 x NEMA 5-15R -

About the product

Liebert® MicroPOD allows manual uninterruptible power supply (UPS) bypass, powering the connected load with utility power during UPS maintenance or replacement, to ensure continuous operation of critical computer equipment. The unit has two modes of operation, UPS mode (UPS available) and utility mode (maintenance bypass). The rackmount unit can support any brand of UPS, 3kVA or smaller; in 50Hz or 60Hz models.

Technical Specifications

Power Description
Input Voltage	120 V AC
Output Voltage	120 V AC
Current	24 A
Miscellaneous
Additional Information	The POD is designed to operate as a maintenance bypass system in the following modes Normal - The UPS is continuously supplied available utility power by the POD. The UPS output power is returned to the POD and distributed to the critical AC load through the POD output receptacles Maintenance Bypass - The bypass switch allows a transfer of the critical AC load from the UPS inverter to the utility source; to allow for service to or replacement of the UPS, without interrupting the load Bypass Switch: The bypass switch is capable of switching up to 20 or 30 amps, based on the model of the POD. The switch is a break before make type, with a maximum transfer time of 6ms Connection to UPS Input: L5-30R Connection to UPS Output & cord length: L5-30P on attached 6 foot cord
Package Contents	MicroPOD MP2-130P Bypass Switch Brackets for Rack Mounting
Compatibility	Liebert Micro-UPS Systems
Certifications & Standards	UL cUL
Country of Origin	China
Physical Characteristics
Form Factor	Rack-mountable
Rack Height	2U
Height	3.50" (88.90 mm)
Width	17" (431.80 mm)
Depth	3.50" (88.90 mm)
Technical Information
Protection Type	Surge
	Signal
Receptacles	2 x NEMA L5-20R
	4 x NEMA 5-15R
Plug/Connector Type	NEMA L5-30P
General Information
Product Type	Bypass Switch
Manufacturer Part Number	MP2-130P
Manufacturer Website Address	http://www.vertiv.com/
Manufacturer	Vertiv
Product Model	MP2-130P
Product Name	MicroPOD MP2-130P Bypass Switch
Product Line	MicroPOD
Brand Name	Vertiv Liebert
