About the product

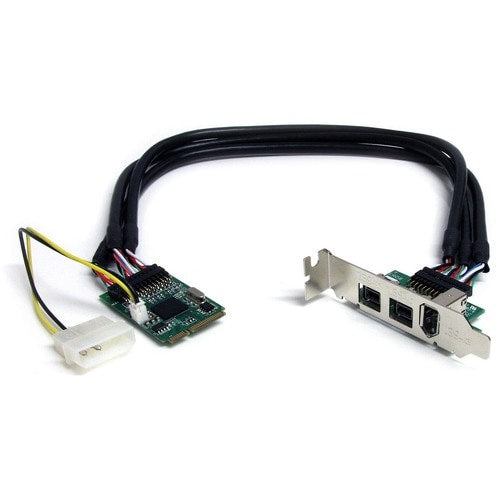

The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps.
Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- 2 external 9-pin FireWire-800 ports with support for data transfer rates up to 800 Mbps
- 1 external 6-pin FireWire-400 port with supported transfer rates up to 400 Mbps
- Compliant with PCI Express Mini Card specification 1.2
- Optional external power support for high-powered FireWire devices
- Compliant with IEEE 1394b and backward compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
- Plug-and-Play and hot-swap compatible
Technical Specifications
| Technical Information | |
| Host Interface | Mini PCI Express |
| Media & Performance | |
| Data Transfer Rate | 800 MB/s |
| 400 MB/s | |
| Interfaces/Ports | |
| Total Number of FireWire/i.LINK Ports | 3 |
| Number of FireWire/i.LINK 400 Ports | 1 |
| Number of FireWire/i.LINK 800 Ports | 2 |
| Physical Characteristics | |
| Weight (Approximate) | 3.20 oz (90.72 g) |
| Form Factor | Plug-in Card |
| Length | 2" (50.80 mm) |
| Height | 0.20" (5.08 mm) |
| Width | 1.20" (30.48 mm) |
| General Information | |
| Product Type | FireWire Adapter |
| Manufacturer Part Number | MPEX1394B3 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Additional Information |
OS Compatibility:
|
| Package Contents |
|
| Platform Supported | Linux |
| PC | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Software | |
| Operating System Supported | Windows XP |
| Windows Vista | |
| Windows Server 2022 | |
| Windows Server 2019 | |
| Windows Server 2016 | |
| Windows Server 2012 | |
| Windows Server 2008 R2 | |
| Windows Server 2003 | |
| Windows 8.1 | |
| Windows 8 | |
| Windows 7 | |
| Windows 2000 | |
| Windows 11 | |
| Windows 10 | |
| Mac OS X 13.0 Ventura | |
| Mac OS X 12.0 Monterey | |
| Mac OS X 11.0 Big Sur | |
| Mac OS X 10.8 Mountain Lion | |
| Mac OS X 10.14 Mojave | |
| Mac OS X 10.15 Catalina | |
| Mac OS X 10.6 Snow Leopard | |
| Linux 3.5.x | |
| Mac OS X 10.10 Yosemite | |
| Mac OS X 10.11 El Capitan | |
| Mac OS X 10.12 Sierra | |
| Mac OS X 10.13 High Sierra |
