About the product
Add Four RS232 Serial Ports to an Embedded System through a mini PCI Express Slot.

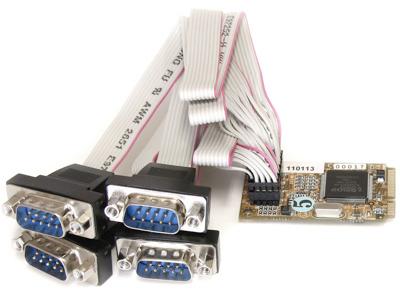

The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality.
A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards.
Technical Specifications
| Primary Information | |
| Product Description: | StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART (MPEX4S552) - serial adapter - Mini PCI Express - RS-232 x 4 |
| Device Type: | Serial adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | Mini PCI Express |
| PCI Specification Revision: | PCIe 1.1 |
| Ports: | RS-232 x 4 |
| Dimensions (WxDxH): | 0.4 in x 2.4 in x 1.2 in |
| Weight: | 5.29 oz |
| Data Link Protocol: | RS-232 |
| Data Transfer Rate: | 921.6 Kbps |

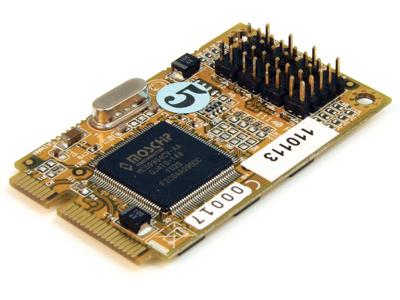

| Processor: | MosChip Semiconductor MCS9904CV-AA |
| System Requirements: | Microsoft Windows 2000, Microsoft Windows Server 2008 R2, Linux Kernel 2.6.x, Microsoft Windows Vista (32/64 bits), Microsoft Windows CE 6.0, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits) |
| Manufacturer Warranty: | Limited lifetime warranty |
| General | |
| Device Type: | Serial adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | Mini PCI Express |
| PCI Specification Revision: | PCIe 1.1 |
| Networking | |
| Ports: | RS-232 x 4 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | RS-232 |
| Data Transfer Rate: | 921.6 Kbps |
| Processor / Memory | |
| Processor: | MosChip Semiconductor MCS9904CV-AA |
| Expansion / Connectivity | |
| Interfaces: | 4 x RS-232 - 9 pin D-Sub (DB-9) |
| Compatible Slots: | 1 x Mini PCI Express - full-length |
| Miscellaneous | |
| Compliant Standards: | FCC, RoHS |
| Software / System Requirements | |
| OS Required: | Microsoft Windows 2000, Microsoft Windows Server 2008 R2, Linux Kernel 2.6.x, Microsoft Windows Vista (32/64 bits), Microsoft Windows CE 6.0, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits) |
