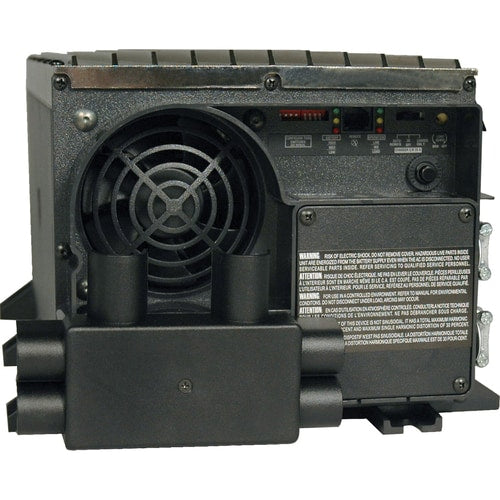

About the product
The PowerVerter MRV2012UL Inverter is the quiet alternative to gas generators -- with no fumes, fuel or noise to deal with!. This heavy-duty inverter with automatic line-to-battery transfer and integrated charging system serves as an extended-run UPS, a standalone power source or an automotive inverter suitable for rugged RV applications. Supplies up to 2000 watts of continuous 120V AC power from any 12V DC battery or automotive DC source. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3-stage charging system with user-selectable 25/100 amp charger output. In UPS mode, the MRV APS system responds to blackouts and voltage fluctuations with a near-instantaneous automatic transfer to battery-derived AC output. Highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery power transfer voltages.
- Heavy-duty DC-to-AC, PWM sine wave inverter with automatic line-to-battery transfer and integrated charging system
- Functions as an extended-run UPS, a standalone power source or an automotive inverter
- 2000 watts continuous, 3000 watts OverPower™ and 4000 watts DoubleBoost™ inverter output
- 12V DC or 120V AC input; 120V, 60 Hz output (hardwired)
- 3-stage battery charger with user-selectable 25/100 amp, wet/dry cell operation
- Built-in Isobar® premium AC surge protection
- Unlimited back up time with user supplied batteries
Technical Specifications
| Technical Information | |
| Receptacles | Hardwired |
| Plug/Connector Type | Hardwired |
| Miscellaneous | |
| Additional Information | Extra Input: AC In |
| Package Contents |
|
| Certifications & Standards | UL 458 (US & Canada) |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 43.20 lb (19595.19 g) |
| Height | 8" (203.20 mm) |
| Width | 10.50" (266.70 mm) |
| Depth | 17.50" (444.50 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Power Inverter |
| Manufacturer Part Number | MRV2012UL |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | MRV2012UL |
| Product Name | PowerVerter MRV2012UL Inverter |
| Product Line | PowerVerter |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Input Voltage | 110 V AC |
| 12 V DC | |
| Output Voltage | 120 V AC |
| 12 V DC | |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Maximum Frequency | 60 Hz |
| Peak Power Load | 4 kW |
| Continuous Power Load | 2 kW |
