About the product
High-speed and Powerful Network with a Compact Switch
NETGEAR Plus Switches with PoE meet business networks growing needs by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price. The new model MS108EUP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other applications. This new Plus switch includes advance PoE control to help optimize the performance and troubleshooting of business networks. The new and improved businessfriendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-in-one solution, providing management and power to these applications would be ideal.
Highlights
NETGEAR Plus Switches with PoE meet business networks growing needs by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price. The new model MS108EUP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other applications. This new Plus switch includes advance PoE control to help optimize the performance and troubleshooting of business networks. The new and improved businessfriendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-in-one solution, providing management and power to these applications would be ideal.
Highlights

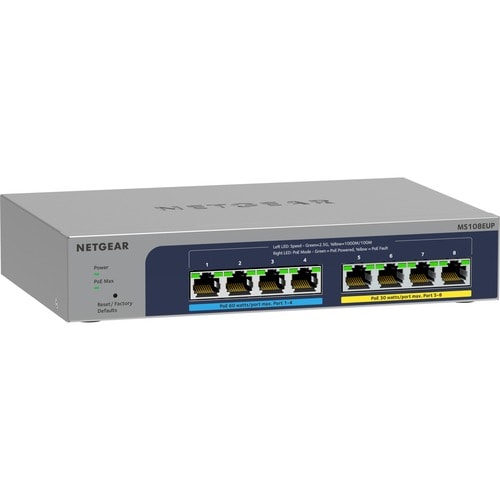

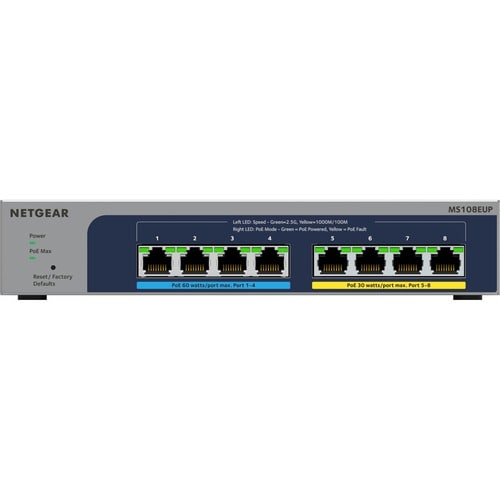

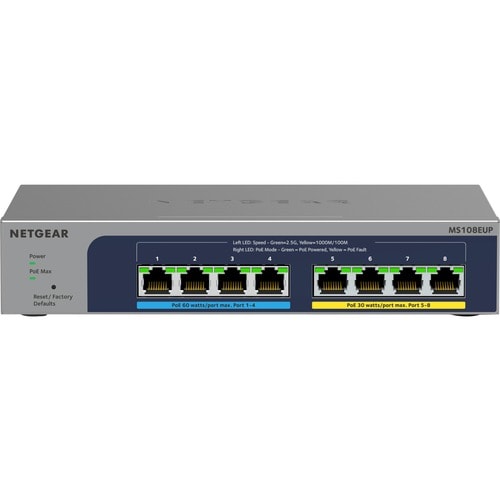

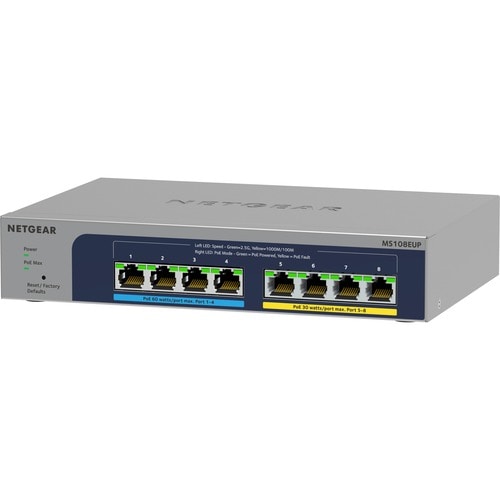

- 802.3bt standard offering up to 60W/ port on Port 1-4, 802.3at (30W/port) on Port 5-8
- Enable network configuration and management at the price point of Unmanaged Switches
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Business-friendly and easy-to-use web browser-based management GUI
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto "denial-of-service" (DoS) prevention
- Troubleshoot connection issues via cable test
- Energy Efficient Ethernet (IEEE 802.3az) support for maxium power savings
- Loop prevention and broadcast storm controls
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Advanced features such as per port PoE controls
- Fanless, silent operation with desktop and wall-mount options
- Lifetime 24/7 Chat Technical Support
- Next-Business-Day Hardware Replacement
- Limited Lifetime Hardware Warranty
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Quickly and easily set up a wired network with 8 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
Technical Specifications
| Management & Protocols | |
| Switch Management Type | Easy Smart Managed |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Thailand |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE++ |
| Media & Performance | |
| Network Technology | 2.5GBase-T |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Power Description | |

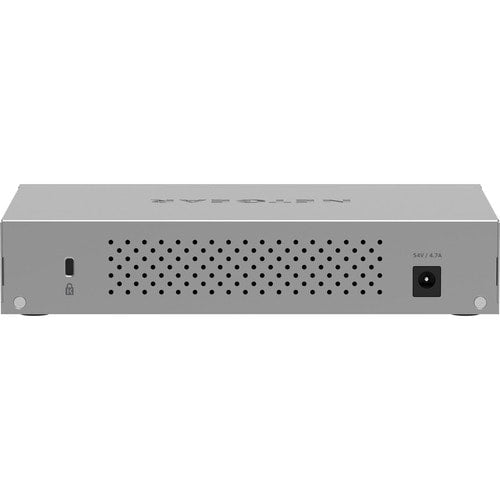

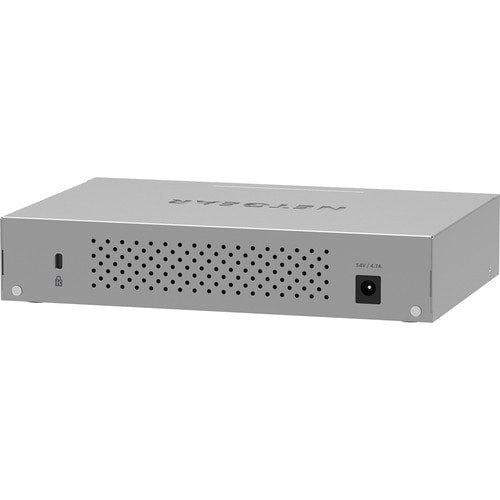

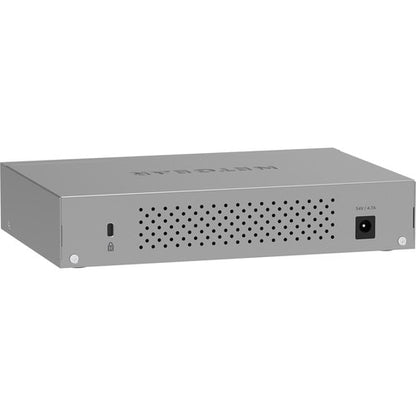

| Power Source | Power Adapter |
| Number of Power Supplies Installed | 1 |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 230 W |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | MS108EUP-100NAS |
| Manufacturer Website Address | http://www.netgear.com |
| Manufacturer | Netgear, Inc |
| Product Model | MS108EUP |
| Product Name | 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch |
| Brand Name | Netgear |
| Physical Characteristics | |
| Weight (Approximate) | 1.98 lb (900 g) |
| Form Factor | Wall Mountable |
| Desktop | |
| Height | 1.57" (40 mm) |
| Width | 8.27" (210 mm) |
| Depth | 5.51" (140 mm) |
| Product Material | Metal |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3x |
| IEEE 802.3u | |
| IEEE 802.3bt | |
| IEEE 802.3az | |
| IEEE 802.3at | |
| IEEE 802.3af | |
| IEEE 802.3ad | |
| IEEE 802.1p | |
| IEEE 802.3 | |
| IEEE 802.1Q | |
| IEEE 802.3ab |
