About the product

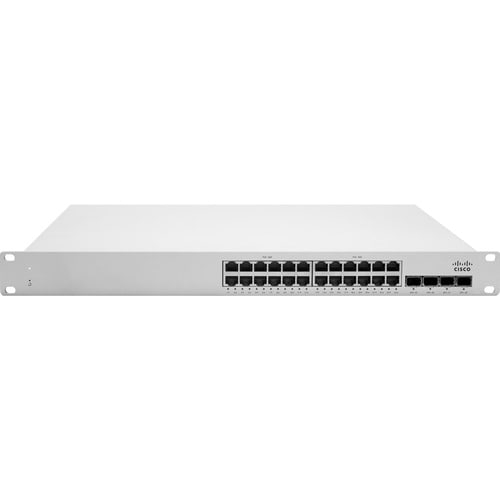

The Cisco Meraki MS225 series switches provide layer 2 access switching and are ideal for deploying to branch locations. With stacking capabilities and 10G SFP+ uplinks on every model, performance is guaranteed. This family also supports an optional, rack-mountable remote PSU (Cisco RPS-2300) for power redundancy requirements.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- The desktop installation makes it ideal for deployments outside the wiring closet
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 448 W |
| Redundant Power Supply Supported | No |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 6.0 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 10/100/1000Base-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Uplink |
| 24 x Gigabit Ethernet Network | |
| 2 x Stack | |
| Physical Characteristics | |
| Weight (Approximate) | 8.18 lb (3710.385587 g) |
| Form Factor | Rack-mountable |
| Desktop | |
| Height | 1.72" (43.69 mm) |
| Width | 19.08" (484.63 mm) |
| Depth | 9.84" (249.94 mm) |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | MS225-24P-HW |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | MS225-24P |
| Product Name | MS225-24P Ethernet Switch |
| Product Series | MS225 |
| Brand Name | Meraki |
