About the product
Elevate your business above the 1Gb barrier
As a leading provider of network equipment, NETGEAR® Business understands the importance of providing a great choice of speed and power to support core business needs. With the growth of network speed, virtualization, and cloud-based applications like VoIP, video streaming, and IP surveillance, businesses in all sectors must keep up to ensure success. Also, the increase in speeds for WiFi 6 and WiFi 6E access points now require faster speeds in the network.

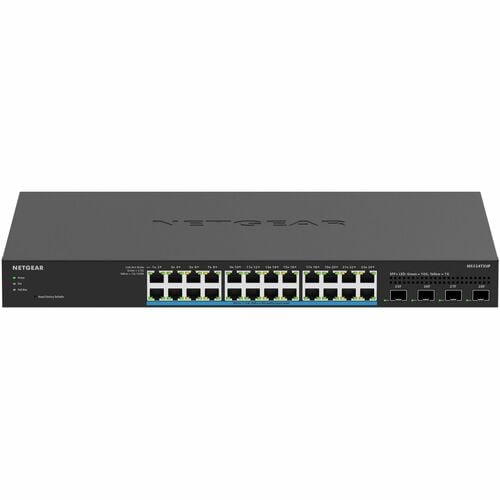

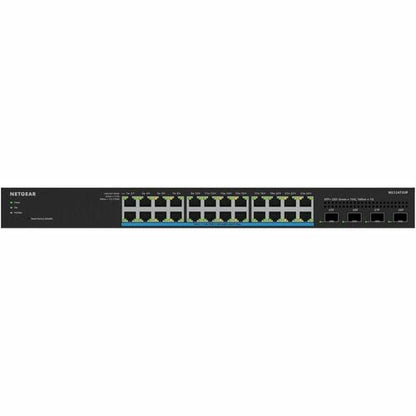

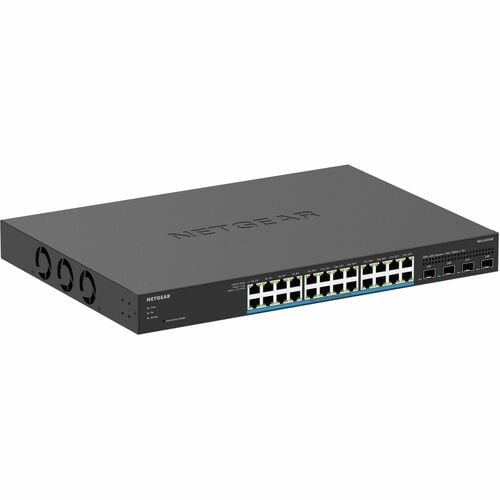

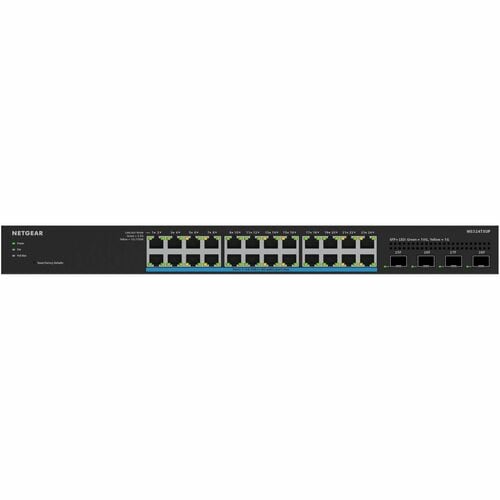

The MS324TXUP 24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports joins the NETGEAR Smart Switch family, adding Multi-Gigabit/10G speed, a high PoE budget for all PoE/PoE+ devices, and Ultra60 PoE++ support. NETGEAR Pro WiFi Access Points and other PoE devices with multi-gig capabilities are perfect for use with the MS324TXUP.
NETGEAR Smart Switches offer powerful L2+/Lite L3 features, great PoE functionality, and enhanced performance and usability. They are purposely esigned for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion.
Furthermore, for 2.5G speeds there is no requirement to upgrade your cabling beyond Cat5E, allowing for higher speeds without additional cabling upgrade costs.
The MS324TXUP switch supports NETGEAR Insight Cloud management, allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Useful for the multi-tenant unit and multi-business unit with Layer 4 traffic classifiers and bandwidth limit
- Management capability provides control over setup and configuration of your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Quickly and easily set up a wired network with 24 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Cascade to other network devices through the uplink port to expand your local area network
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Media & Performance | |
| Network Technology | 2.5GBase-T |
| 10GBase-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| 24 x 2.5 Gigabit Ethernet Ultra60 PoE++ | |
| Miscellaneous | |
| Application/Usage | Business |
| Wireless Access Point | |
| VoIP Phone | |
| Surveillance | |
| Network | |
| Package Contents |
|
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 765 W |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 720 W |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | MS324TXUP100NAS |
| Manufacturer Website Address | http://www.netgear.com |
| Manufacturer | Netgear, Inc |
| Product Model | MS324TXUP |
| Product Name | 24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports |
| Brand Name | Netgear |
| Physical Characteristics | |
| Weight (Approximate) | 9.78 lb (4436.13 g) |
| Form Factor | Rack-mountable |
| Table Top | |
| Desktop | |
| Height | 1.69" (43 mm) |
| Width | 12.20" (310 mm) |
| Depth | 17.32" (440 mm) |
| Network & Communication | |
| Layer Supported | 4 |
| Networking Standards | IEEE 802.1Q |
| IEEE 802.1p | |
| IEEE 802.1s | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3ad | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.1D | |
| IEEE 802.1ab | |
| IEEE 802.3az | |
| IEEE 802.3bt | |
| IEEE 802.3x |
