About the product

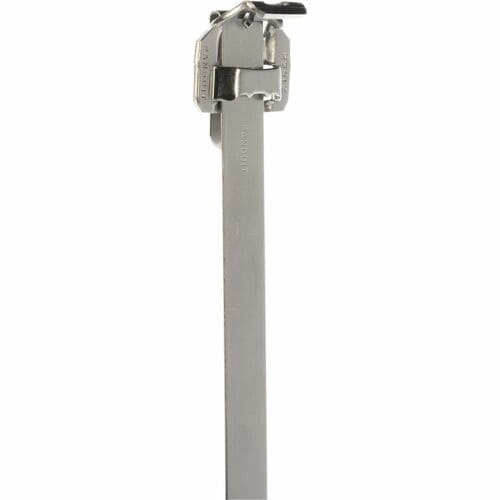

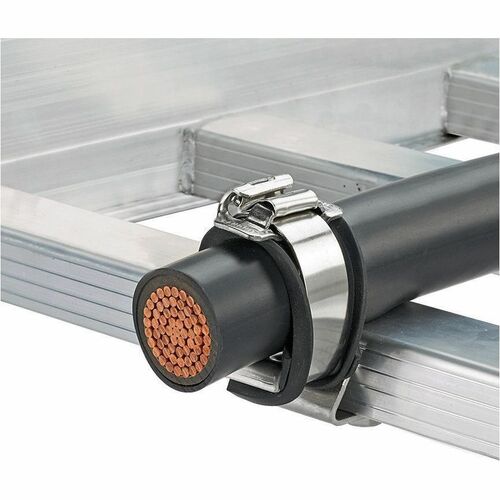

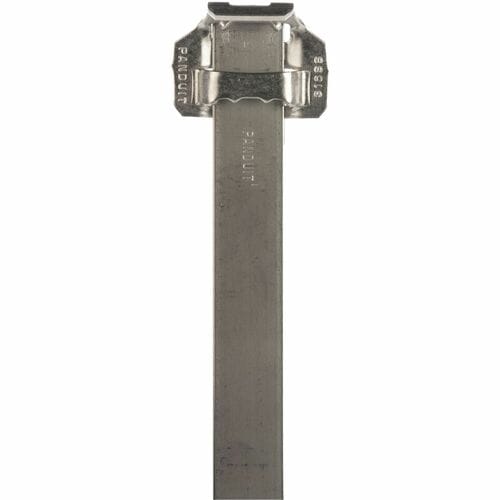

The MS8W75T30-Q6 Discrete Length Stainless Steel Buckle Strap cable cleat is an effective option for protecting against high short circuit fault current requirements in harsh environments. The variable design is compatible with quad, trefoil, and multicore cables and certified to IEC61914:2015, tested up to 188kA peak fault current. The product features a low-profile fold-over buckle, 316L AISI Stainless Steel, 831mm length, 19mm width, 10656N tensile strength, and 203mm bundle capacity.
Technical Specifications
| Miscellaneous | |
| Compatibility | PANDUIT Pan-Steel BT75SDT Strapping Tool |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Information | |
| Features | UV Resistant |
| Cable Manager Type | Cable Strap |
| Minimum Loop Tensile Strength | 2400 lb (1088621.69 g) |
| Physical Characteristics | |
| Thickness | 0" (0.70 mm) |
| Length | 32.1" (815.34 mm) |
| Width | 0.8" (19.05 mm) |
| Product Color | Natural |
| Color Family | Other |
| Product Material | Stainless Steel |
| General Information | |
| Product Type | Cable Tying |
| Manufacturer Part Number | MS8W75T30Q6 |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 25 Pack |
| Manufacturer | PANDUIT CORP |
| Product Name | Pan-Steel MS8W75T30-Q6 Cable Cleat, MS Strap, 316L SS, Single/Trefoil/Quad |
| Product Line | Pan-Steel |
| Brand Name | Panduit |
