StarTech.com 4-Port DisplayPort 1.2 Splitter, DisplayPort to 4x DP Multi

StarTech.com 4-Port DisplayPort 1.2 Splitter, DisplayPort to 4x DP Multi

Regular price $136.62 CAD
Regular price $157.11 CAD Sale price $136.62 CAD
-13% OFF Ask for quote
Shipping calculated at checkout.
StarTech.com 4-Port DisplayPort 1.2 Splitter, DisplayPort to 4x DP Multi-Monitor Adapter, Quad 1080p 60Hz Computer MST Hub, Windows Only~4-Port Multi Monitor Adapter, DisplayPort 1.2 MST Hub, 4x 1080p, DP Video Splitter for Extended Desktop Mode, Windows Only - 4-port DisplayPort multi-monitor adapter drives 4x 1080p 60Hz DP displays to extend or mirror your desktop; DP 1.2/HBR2/MST; MST Hub/video splitter w/latching DP connector; Universal Power Adapter included; No Drivers / Windows only

VPN:MSTDP124DP SKU:988868NDS UPC:65030860581

  • MULTI-MONITOR CONFIGURATION: Quad-Monitor DisplayPort 1.2 MST Hub drives up to 4x 1080p 60Hz DisplayPort monitors using a DP video port on a Windows desktop PC or laptop; Not compatible with macOS
  • NO DRIVERS OR SOFTWARE: Increase productivity by adding four extended or mirrored displays to a Windows computer; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
  • HARDWARE COMPATIBILITY: Host system must support DP 1.2 / HBR2 / MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays;

Volume discount available - Ask for quote..

View full details

Recently Viewed

StarTech.com 4-Port DisplayPort 1.2 Splitter, DisplayPort to 4x DP Multi

Product information summary

StarTech.com 4-Port DisplayPort 1.2 Splitter, DisplayPort to 4x DP Multi

About the product

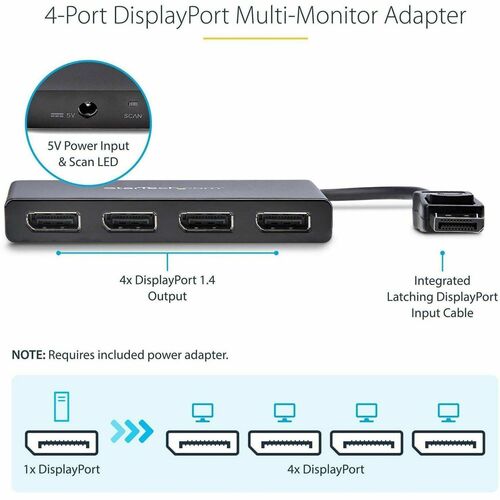

This MST hub lets you connect four monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.

Increase productivity with multiple screens

The newest generations of computers are more portable than ever, which often means that you're left with fewer video outputs and smaller integrated screens. ThisMST hubsolves both of these problems by letting you connect four additional displays to your computer, which makes multitasking much easier.

Connect to any display

With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

Configure your displays for any environment

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displaysfor remote viewing applications such as digital signage.

Enjoy amazing video quality, without draining system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.

Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.

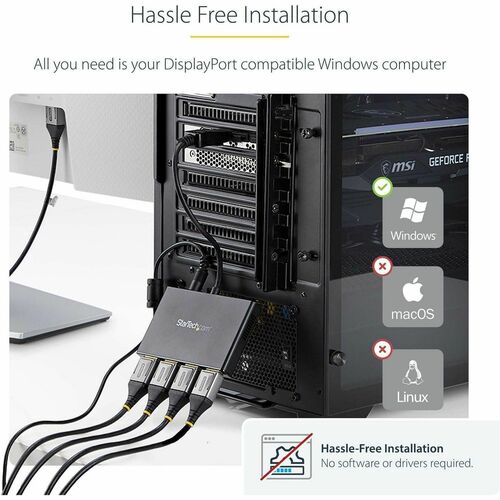

The MSTDP124DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: MST shares 21.6Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.

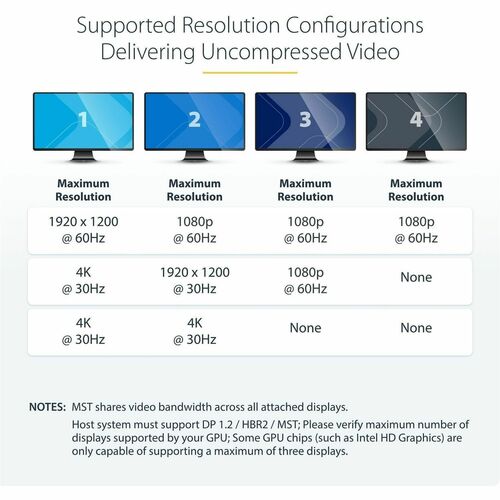

Average resolution bandwidth allocation:

1920x1080 (High-definition 1080p) @60hz - 22% 1920x1200 @60hz - 30% 2560x1440 @60hz - 35% 2560x1600 @60hz - 38% 3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.

Examples of supported resolution configurations:

Screen 1 Resolution

Screen 2 Resolution

Screen 3 Resolution

Screen 4 Resolution

Total % of Bandwidth

1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 88% 1920x1200 @60hz (30%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) 96% 3840x2160 @30hz (38%) 1920x1080 @60hz (22%) 1920x1080 @60hz (22%) off 82% 3840x2160 @30hz (38%) 1920x1200 @30hz (30%) 1920x1080 @60hz (22%) off 90% Examples of unsupported resolution configurations Screen 1 Resolution Screen 2 Resolution Screen 3 Resolution Screen 4 Resolution Total % of Bandwidth 2560x1600 @60hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 136% 3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 136% 3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 2560x1440 @60hz (35%) 1920x1200 @60hz (30%) 141% 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) off 114%

  • MULTI-MONITOR CONFIGURATION: Quad-Monitor DisplayPort 1.2 MST Hub drives up to 4x 1080p 60Hz DisplayPort monitors using a DP video port on a Windows desktop PC or laptop; Not compatible with macOS
  • NO DRIVERS OR SOFTWARE: Increase productivity by adding four extended or mirrored displays to a Windows computer; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
  • HARDWARE COMPATIBILITY: Host system must support DP 1.2 / HBR2 / MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays;
  • EASY TO USE: Extend your desktop at your workstation in the office/home office; Latching DisplayPort connector ensures a reliable connection and prevents accidental disconnection; Not compatible with HDMI output ports; Universal Power Adapter included
  • OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the 4-Port DisplayPort Multi-Monitor Adapter

Technical Specifications

Media & Performance
Maximum Operating Distance78.74" (2000 mm)
Video
Maximum Video Resolution3840 × 2160
Power Description
Input Voltage230 V AC
120 V AC
Interfaces/Ports
DisplayPortYes
Number of DisplayPort Outputs4
Number of DisplayPort Inputs1
Miscellaneous
Additional InformationHardware
  • Audio Yes
  • Chipset ID STDP4320
  • Converter Type MST Hub
  • Output Signal DisplayPort
  • Ports 4
Performance
  • Maximum Digital Resolutions 3840 x 2160 @30hz
  • Supported Resolutions 1024x768
  • 1280x720 (High-definition 720p)
  • 1920x1080 (High-definition 1080p)
  • 1920x1200
  • 2560x1440
  • 2560x1600
  • 3840 x 2160 (Ultra HD 4K) @30hz
  • Wide Screen Supported Yes
Environmental
  • Operating Temperature 0°C to 45°C (32°F to 113°F)
  • Storage Temperature -20°C to 70°C (-4°F to 158°F)

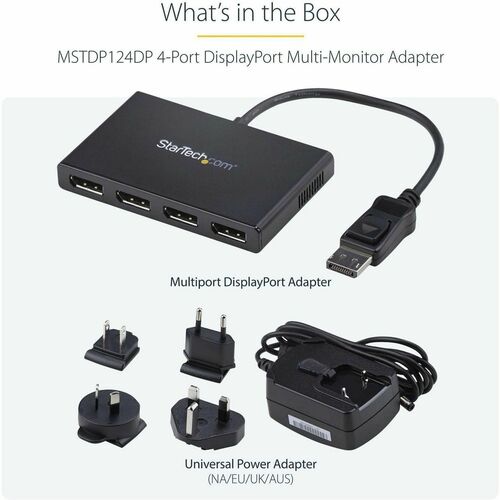

Package Contents
  • MST hub - DisplayPort to 4x DisplayPort
  • 1 x Universal Power Adapter (NA/EU/UK/AUS)
  • 1 x Quick Install Guide
Country of OriginChina
Environmentally FriendlyYes
General Information
Product TypeSignal Splitter
Manufacturer Part NumberMSTDP124DP
Manufacturer Website Addresshttp://www.startech.com
Packaged Quantity1
ManufacturerStarTech.com
Product NameMST hub - DisplayPort to 4x DisplayPort
Brand NameStarTech.com

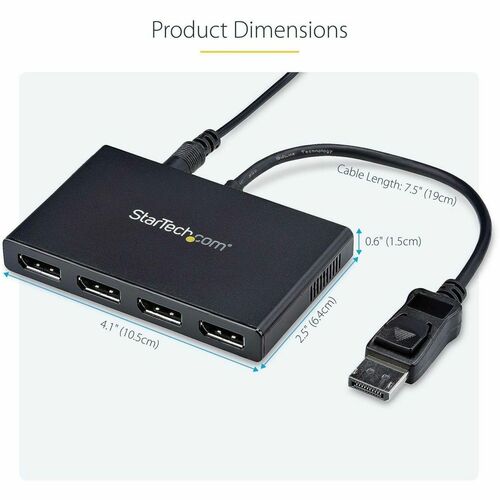

Physical Characteristics
Weight (Approximate)4.55 oz (129 g)
Length15.20" (386.08 mm)
Height0.60" (15.24 mm)
Width2.60" (66.04 mm)
Product ColorBlack
Color FamilyBlack
Product MaterialPlastic
