Dockings & Hubs

Expected delivery 3 to 7 business days (exceptions applied)

Tripp Lite

Tripp Lite by Eaton MTB3-DOCK

Tripp Lite by Eaton MTB3-DOCK

Regular price $299.42 CAD
Regular price $335.35 CAD Sale price $299.42 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.

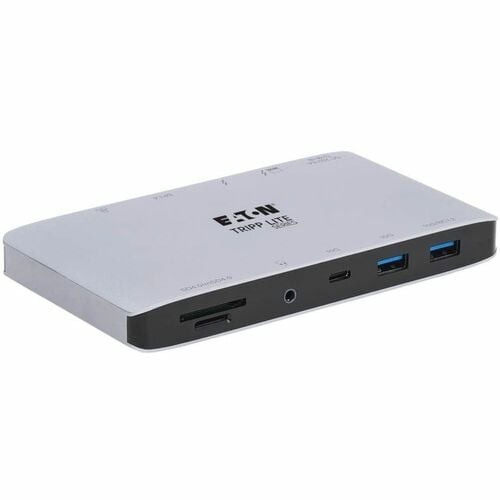

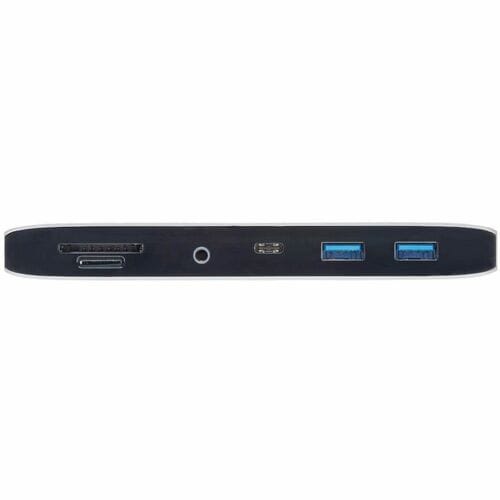

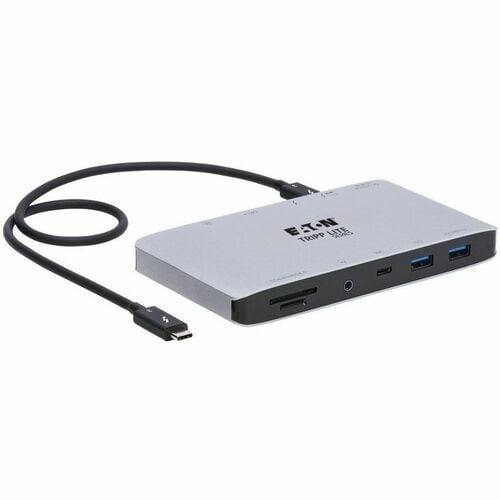

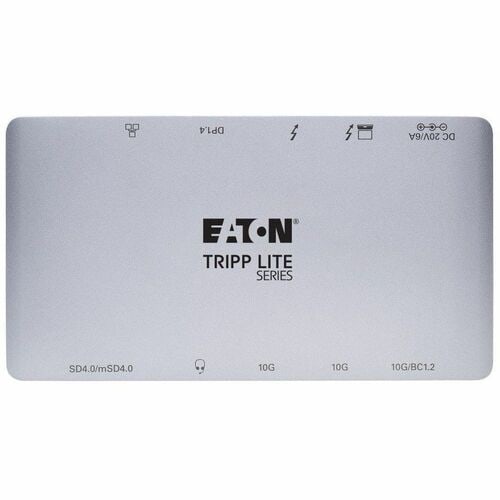

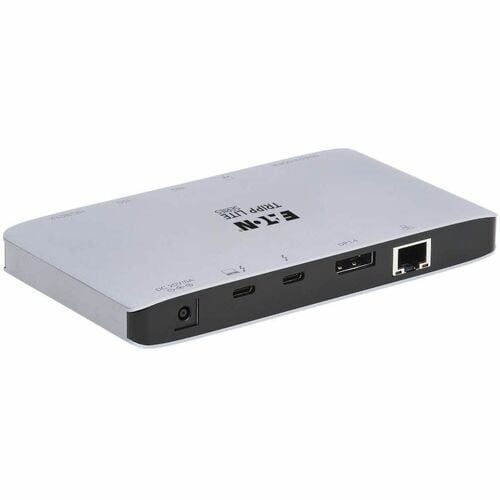

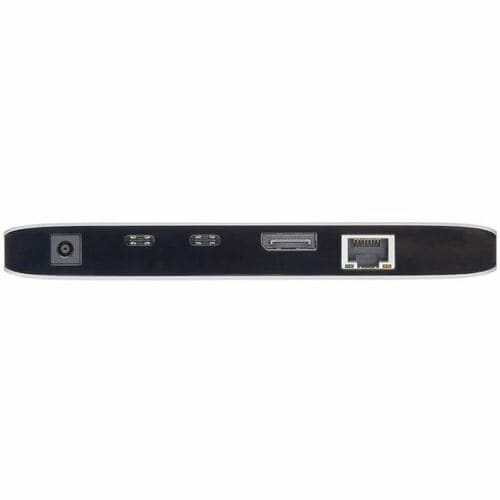

Tripp Lite by Eaton MTB3-DOCK-03INT Docking Station - for Notebook/Monitor - Memory Card Reader - microSD, SD - 120 W - Thunderbolt 3 - 2 Displays Supported - 8K, 4K, 5K - 7680 x 4320, 1280 x 720, 1920 x 1080, 3840 x 2160, 5120 x 2880 - 2 x USB 3.0 - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - DisplayPort - Black, Gray - Thunderbolt - 2 x Thunderbolt 3 Ports - Wired - Gigabit Ethernet - Windows, macOS

VPN:MTB3-DOCK-03INT SKU:AC315846 UPC:Loading

  • Connects 2 displays at the same time for multitasking and increasing productivity
  • Transmits 8K video (7680 x 4320) @ 30 Hz to a single display for professional users
  • Can operate with Thunderbolt 3 or USB-C Multi-Function DisplayPort (MFDP) host
  • Volume discount available - Ask for quote..

    View full details

    Recently Viewed

    Tripp Lite by Eaton MTB3-DOCK

    Product information summary

    Tripp Lite by Eaton MTB3-DOCK

    About the product

    Thunderbolt 3 Dock Turns Your MacBook Pro into a 10-Port 8K Workstation
    This Thunderbolt 3 docking station dramatically expands the potential of your MacBook Pro or Windows laptop by adding 10 ports to its Thunderbolt 3 or USB-C MFDP port. Not only does the MTB3-DOCK-03INT allow you to transmit 8K video to one display or 4K video to two displays, you can also add USB peripherals, record a podcast, connect to a Gigabit Ethernet network, charge your laptop and more, all at the same time.

    Supports DisplayPort Alternate Mode for Transmitting Audio/Video Signals
    By connecting the included Thunderbolt 3 cable to a source device that supports DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.

    Thunderbolt 3 Supports Blisteringly Fast 40 Gbps Data Transfer Speeds
    The included Thunderbolt 3 cable supports bidirectional speeds up to 40 Gbps, which is eight times faster than USB 3.2 Gen 1, four times faster than Thunderbolt 1 and twice as fast as Thunderbolt 2. With dual 20 Gbps channels moving data both directions at the same time, the MTB3-DOCK-03INT is perfectly suited for 4K video streaming and editing on two monitors, as well as transferring large RAW video or CAD files. When connected to a host computer's USB-C MFDP port, the cable supports 26.2 Gbps speeds.

    DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays

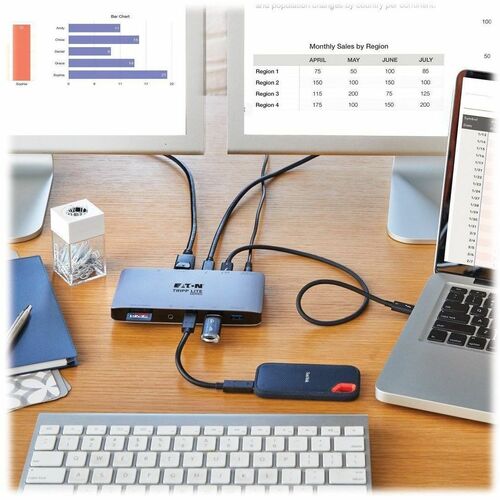

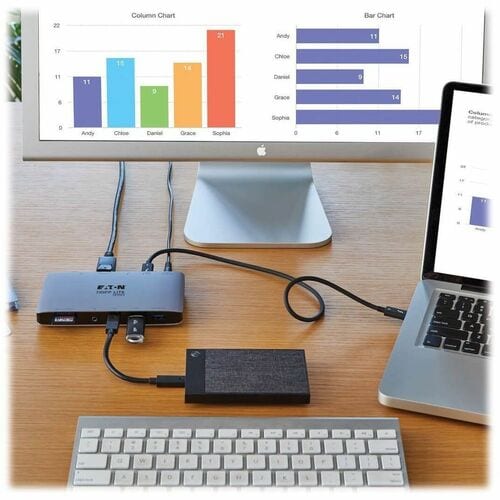

    By connecting the included Thunderbolt 3 cable to a source that supports DisplayPort MST Mode, you may connect two displays simultaneously at resolutions of 8K (30 Hz) plus 4K (30 Hz) or both displays at 4K (60 Hz). This allows you to display the same image on both monitors, extend your host desktop across both with different windows open on each, or combine both into one large display as a video wall.

    Transmits Crystal-Clear 8K and 4K Video for Professional Editing and Digital Signage
    Both the DisplayPort and Thunderbolt 3 video ports can achieve resolutions up to 8K (7680 x 4320) at 30 Hz, when used with a Thunderbolt 3-enabled source computer and Thunderbolt 3 cable. When used with an MFDP-enabled source computer, the DisplayPort connector's maximum resolution is 4K (3840 x 2160) at 60 Hz. The Thunderbolt 3 port also allows daisy-chaining up to six Thunderbolt 3 devices, including RAID memory and other storage devices.

    • Connects 2 displays at the same time for multitasking and increasing productivity
    • Transmits 8K video (7680 x 4320) @ 30 Hz to a single display for professional users
    • Can operate with Thunderbolt 3 or USB-C Multi-Function DisplayPort (MFDP) host
    • Supports Thunderbolt 3 speeds up to 40 Gbps between compatible devices
    • USB 3.2 Gen 2 data ports allow connection of flash drives and other peripherals
    • 3-year limited warranty

    Technical Specifications

    Network & Communication
    Ethernet TechnologyGigabit Ethernet
    Power Description
    Maximum Power Supply Wattage120 W
    Software
    Operating System SupportedWindows
    macOS
    General Information
    Product TypeDocking Station
    Manufacturer Part NumberMTB3DOCK03INT
    Manufacturer Website Addresshttps://tripplite.eaton.com/
    ManufacturerEaton Corporation
    Product ModelMTB3-DOCK-03INT
    Product NameMTB3-DOCK-03INT Docking Station
    Brand NameTripp Lite by Eaton
    Physical Characteristics
    Weight (Approximate)3.37 lb (1529.97 g)
    Height0.69" (17.53 mm)
    Width5.83" (148.08 mm)
    Depth3.15" (80.01 mm)
    Product ColorBlack
    Gray
    Color FamilyDual Color
    Miscellaneous

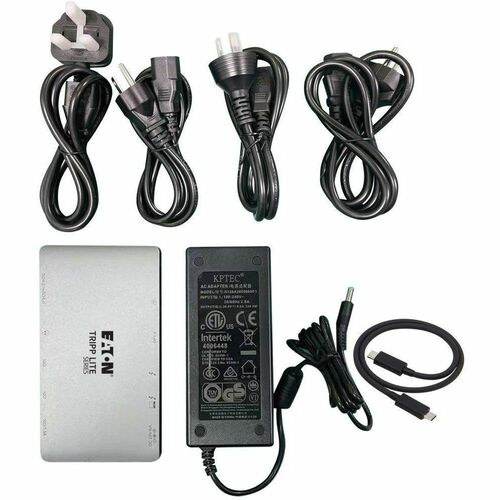

    Package Contents
    • MTB3-DOCK-03INT Docking Station
    • Thunderbolt 3 Cable
    • External Power Supply

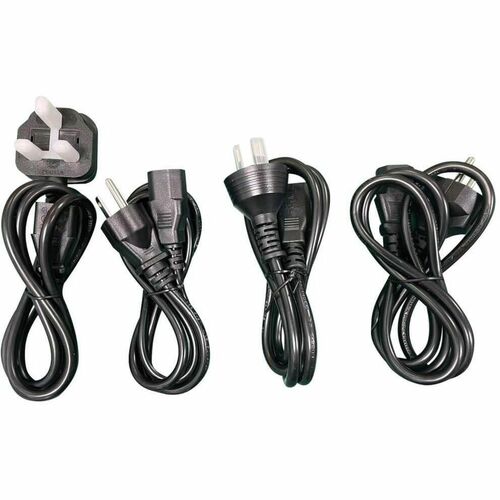

    • 4 x International Plug Adapters
    • Owner's Manual
    CompatibilityMacBook Pro or Windows Laptop
    Country of OriginVietnam
    Environmentally FriendlyYes
    Brand CompatibilityApple
    Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    Restriction of Hazardous Substances (RoHS)
    Waste Electrical and Electronic Equipment Directive (WEEE)
    Interfaces/Ports
    Host InterfaceThunderbolt 3
    HDMIYes
    Network (RJ-45)Yes
    DisplayPortYes
    Number of USB 3.0 Ports2
    ThunderboltYes
    Headphone/Microphone Combo PortYes
    Number of RJ-45 Ports1
    Number of Thunderbolt 3 Ports2
    USB Type-CYes
    DisplayPort Version1.4
    USB Type-AYes
    Technical Information
    Device SupportedNotebook/Monitor
    Connectivity TechnologyWired
    Memory Card SupportedSD
    microSD
    Memory Card ReaderYes
    Number of Displays Supported2
    Supported Resolutions1280 x 720
    7680 x 4320
    1920 x 1080
    3840 x 2160
    5120 x 2880
    Screen Mode Supported8K
    5K
    4K
