About the product
Specifically Designed for Use in Surveillance and Other PoE Applications

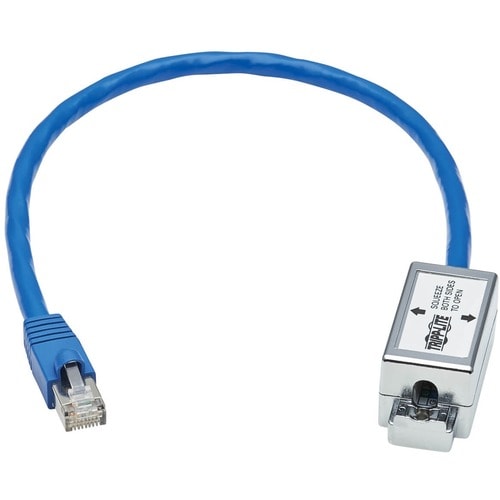

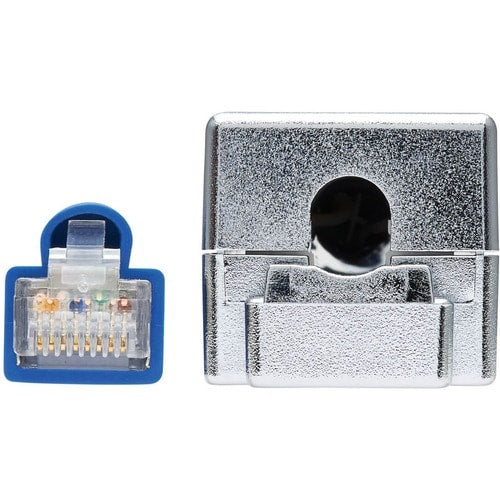

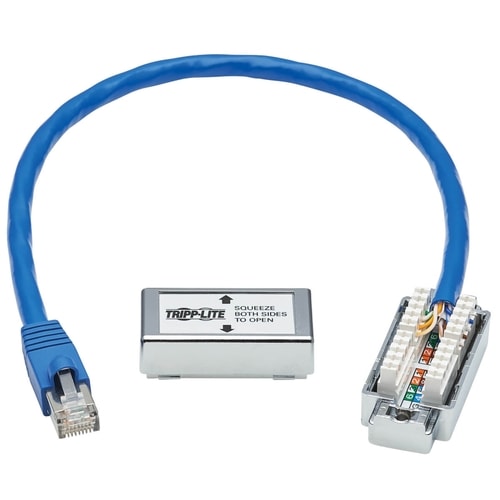

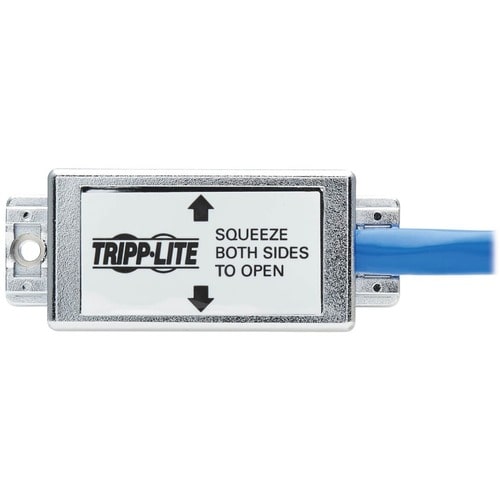

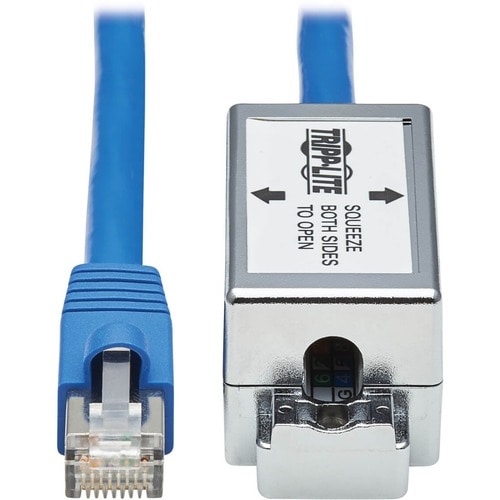

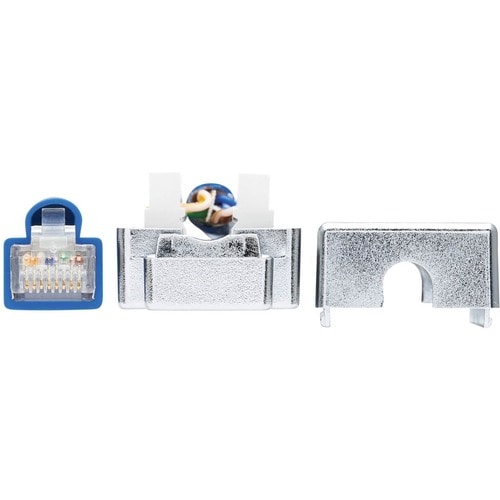

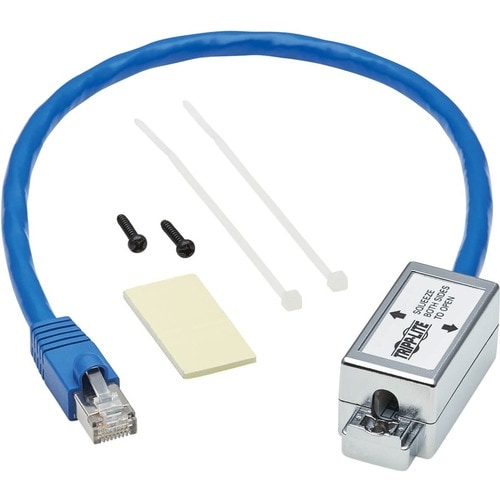

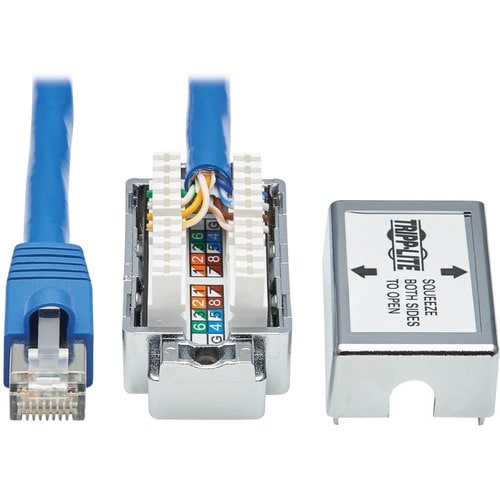

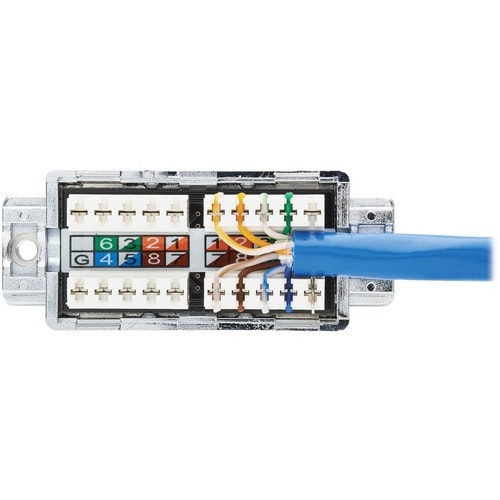

This Cat6a surface-mount assembly is recommended for above-ceiling applications where the use of wall plates is impractical or otherwise not ideal. The 18-inch cable connects your Cat6a premise wiring to an IP camera, wireless access point (WAP), LED lighting scheme, sound equipment or other PoE+ device installed high on a wall, ceiling or any other location far from a convenient power outlet. One end features a 110 IDC punchdown connector for secure permanent installation.
Supports Power over Ethernet to Simplify Installation and Cut Down on Expenses
Because the N237A-P18N-WHSH supplies up to 24W of power to the connected PoE or PoE+ device, it saves you the expense and effort of purchasing, connecting and installing new electrical wiring, outlets and individual power supplies.
CMR-LP Certified for Cable Installations with Increased Power Levels
UL's Limited Power (LP) certification indicates the N237A-P18N-WHSH has been evaluated to handle the marked current under installation scenarios without exceeding the temperature rating of the cable. This CMR-LP-certified cable provides a simple way to prepare installations for increased power levels without having to worry about susceptible issues caused by excessive heat.
- Features PoE+
- Experience a simpler way to connect devices with the entire business network
- Features Category 6a cable type
- Fully compatible with surveillance cameras
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 2.06 oz (58.29 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Blue |
| Color Family | Blue |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N237A-P18N-WHSH |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N237A-P18N-WHSH |
| Product Name | Cat6a Junction Box Cable Assembly, 18 in., Blue |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 1.5 ft (0.46 m) |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Wallplate |
| Access Point | |
| Surveillance Camera | |
| Network Device | |
| Shielding | Yes |
| Features | PoE |
| PoE+ | |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6a |

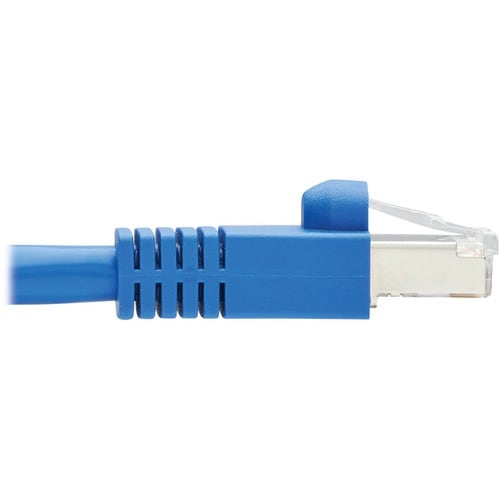

| Connector Type on First End | RJ-45 Network - Male |

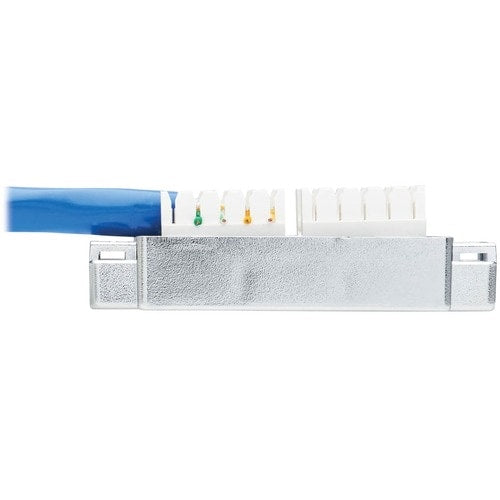

| Connector Type on Second End | 110 Punchdown Block |
| Contact Plating | Gold |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x 110 Punchdown Block |
