About the product

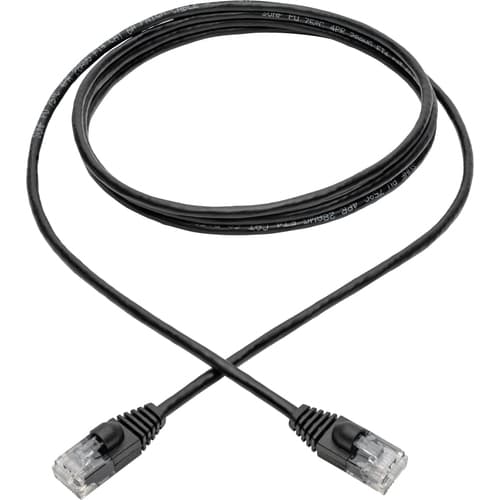

The N261-S06-BK Cat6a 10G Snagless Molded Slim UTP Network Patch Cable (M/M) is ideal for connecting network components like computers, servers, routers, printers, patch panels and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this six-foot black cable ensures peak performance throughout your local area network (LAN).
Manufactured from 28 AWG copper wire, the four-pair stranded UTP N261-S06-BK delivers Gigabit Ethernet speeds up to 10 Gbps. Protected by a PVC jacket, this cable is more than 38% smaller in diameter than standard Cat6a cable, which increases airflow in tight spaces and makes it easier to install around corners and through cable management panels.

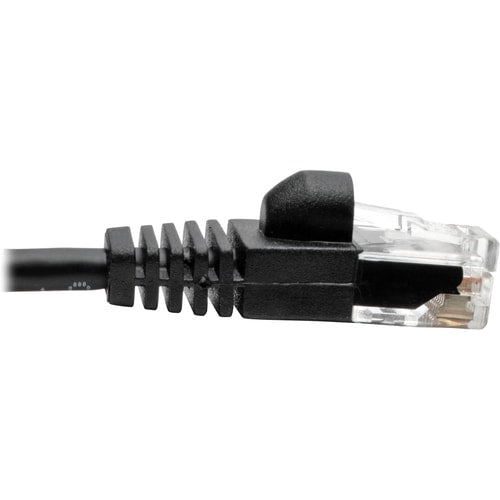

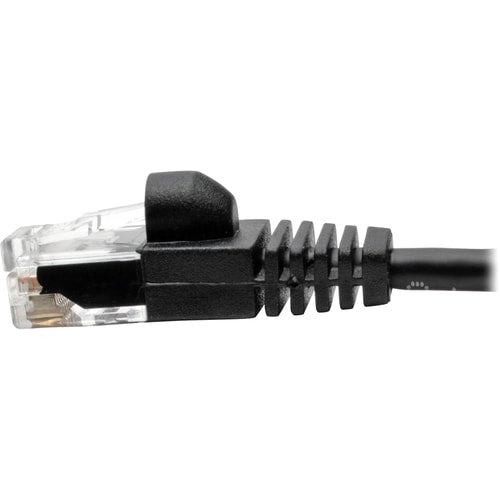

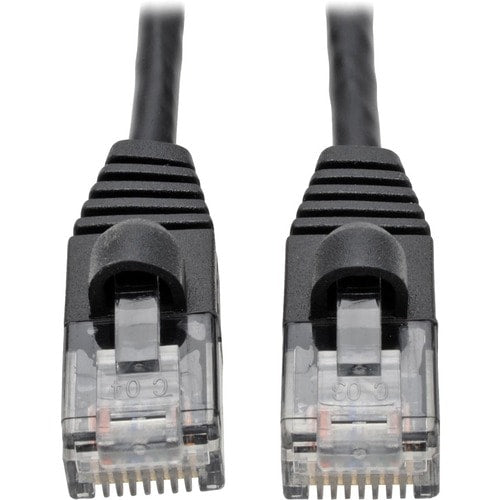

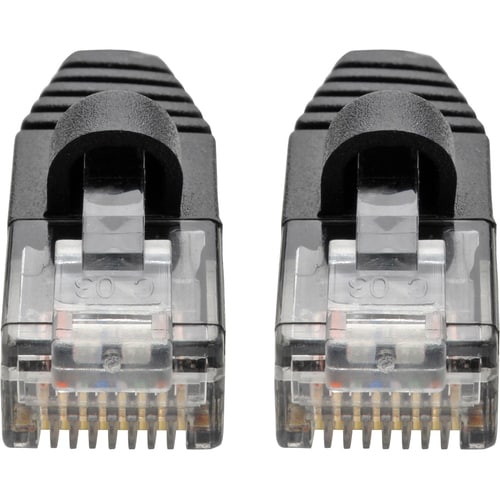

RJ45 male connectors are conducive to an accurate signal transfer, improving near-end crosstalk (NeXT) performance to 650 MHz. The snagless design protects the locking tabs against being damaged or broken off during installation. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.
Each cable has been tested and certified using Fluke® test equipment. Test results are available upon request. It supports IEEE 802.3af, is DTE power compliant and is compatible with T568A/T568B wiring.
- Offers a reliable network connectivity
- Features Category 6a cable type
- Fully compatible with printers
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 3.20 oz (90.72 g) |
| Shipping Height | 0.50" (12.70 mm) |
| Shipping Width | 7" (177.80 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N261-S06-BK |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N261-S06-BK |
| Product Name | Gigabit N261-S06-BK Cat.6a UTP Patch Network Cable |
| Product Line | Gigabit |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 6 ft (1.83 m) |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Switch |
| Server | |
| Printer | |
| Router | |
| PC | |
| Patch Panel | |
| Network Device | |
| Shielding | No |
| Features | Stranded |
| Minimized Near-End Crosstalk (NEXT) | |
| Molded | |
| Strain Relief | |
| Number of Conductors | 4 |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6a |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| American Wire Gauge | 28 AWG |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Boot Type | Snagless |
