About the product

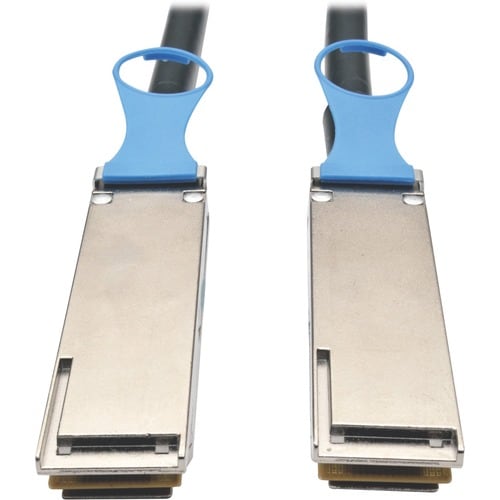

The N282-01M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
This one-meter copper cable integrates a 100G Ethernet-optimized (100 GbE) 38-position "board-as-connector" design with zinc die-cast male QSFP+ connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 100-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand.
Flexible 26 AWG conductors maintain a smooth high-frequency response. The N282-01M-28-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.
- Supports serial data rates up to 100 Gbps
- Complies with MSA SFF-8665 specifications
- Meets or exceeds 100GBASE-CR4 standards
- Multi-platform support for 128G Fibre Channel and EDR InfiniBand
- Pull-tab ejectors for quick, easy connections
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 8 oz (226.80 g) |
| Shipping Height | 0.50" (12.70 mm) |
| Shipping Width | 9.90" (251.46 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N282-01M-28-BK |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | N282-01M-28-BK |
| Product Name | QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M), 1 m (3 ft) |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 3.3 ft (1.01 m) |
| Data Transfer Rate | 100 Gbit/s |
| Device Supported | Network Device |
| Features | Passive |
| Flexible | |
| Crosstalk Protection | |
| Cable Type | InfiniBand |
| Connector Type on First End | QSFP+ Network - Male |
| Connector Type on Second End | QSFP+ Network - Male |
| American Wire Gauge | 26 AWG |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector on Second End Details | 1 x QSFP+ Network - Male |
