About the product

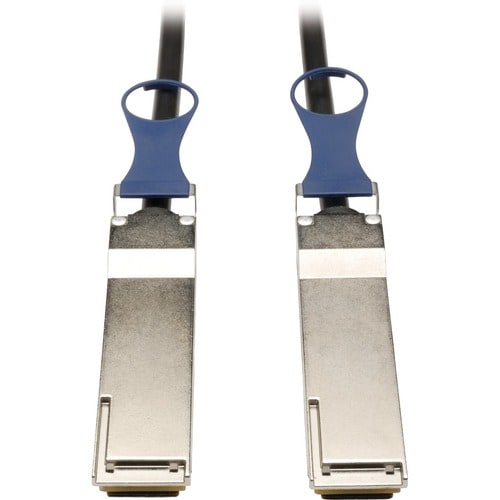

Tripp Lite's 0.5M (20-in.) QSFP+ 40GBASE-CR4 / 802.3ba qualified passive copper cable provides next generation performance by combining four 10 Gb/s SFP+ channels into one affordable high-density package. Our QSFP+ cables integrate a new 40G Ethernet-optimized (40GbE) 38-position "board-as-connector" design, with zinc die-cast backshells for superior EMI resistance, minimal insertion loss, and improved cross-talk performance. Cable featuress 8-pair wire technology optimized for bandwidth-intense applications including 40-Gigabit Ethernet (40GBASE-CR4), 6G SAS, Fibre Channel and SONET. Flexible 30 AWG conductors maintain a smooth, high-frequency response (20 GHz). Each 1m (3.3-ft) length QSFP+ cable goes through a rigorous assembly and test procedure aimed at eliminating unnecessary signal loss. Our cables are fully compliant to the QSFP+ MSA and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports.
- 40Gbps QSFP+ to QSFP+ 0.5M (20-in.) patch cable
- Meets or Exceeds 40-Gigabit Ethernet 4oGBASE-CR4 standards
- Fully compliant to the latest QSFP+ MSA ( Multi Source Agreement )
- SDR, DDR, and QDR Compatible
Technical Specifications
| Miscellaneous | |
| Certifications & Standards | MSA |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 3.68 oz (104.33 g) |
| Shipping Height | 12" (304.80 mm) |
| Shipping Width | 10.50" (266.70 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N282-20N-BK |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | N282-20N-BK |
| Product Name | QSFP+ to QSFP+ 40Gb Passive DAC Copper Infiniband Cable, 0.5M (20-in.) |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 1.7 ft (0.52 m) |
| Device Supported | Network Device |
| Features | Passive |
| Cable Characteristic | Patch Cable |
| Cable Type | QSFP+ |
| Connector Type on First End | QSFP+ Network - Male |
| Connector Type on Second End | QSFP+ Network - Male |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector on Second End Details | 1 x QSFP+ Network - Male |
