About the product

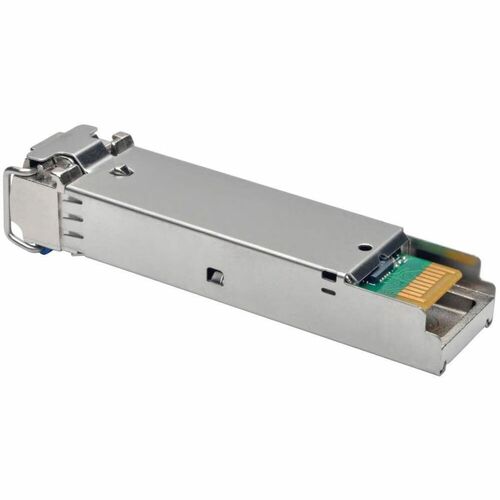

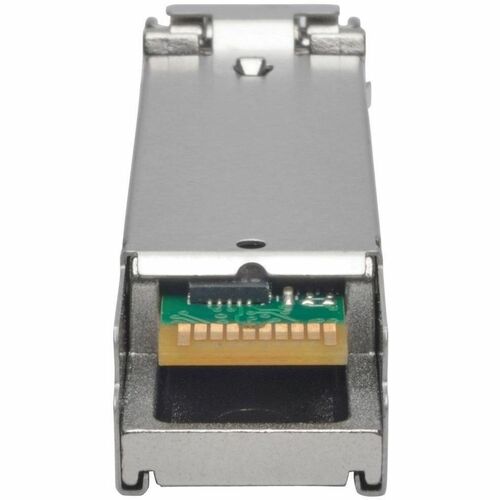

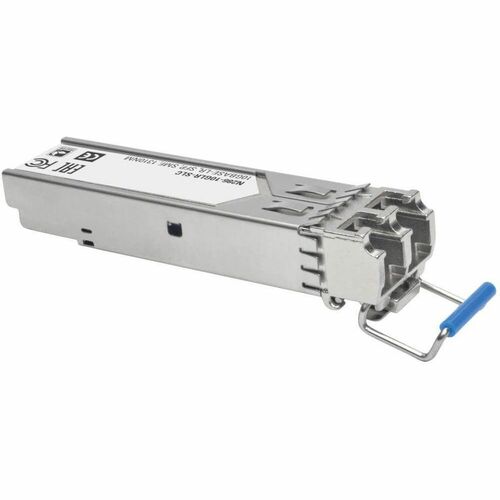

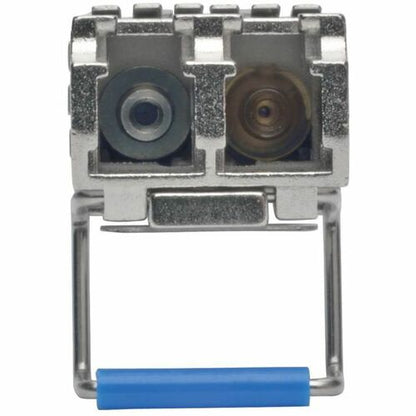

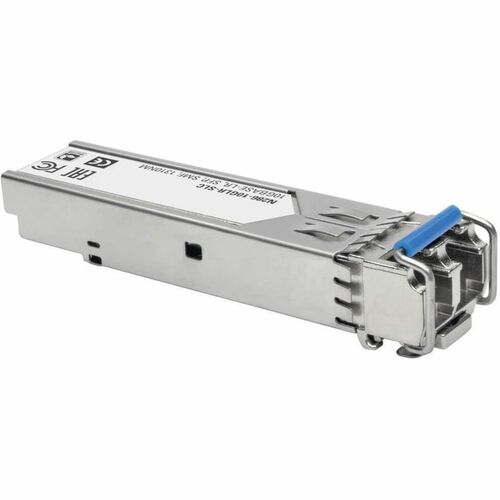

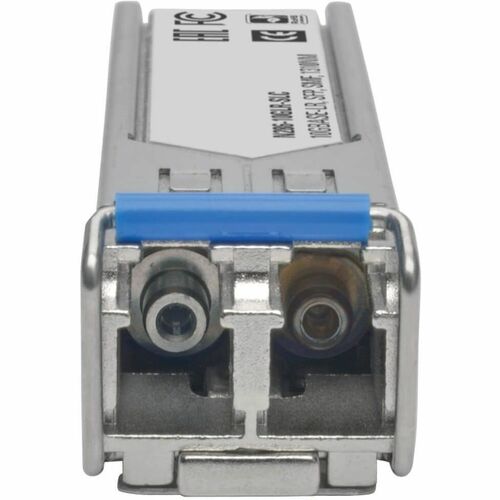

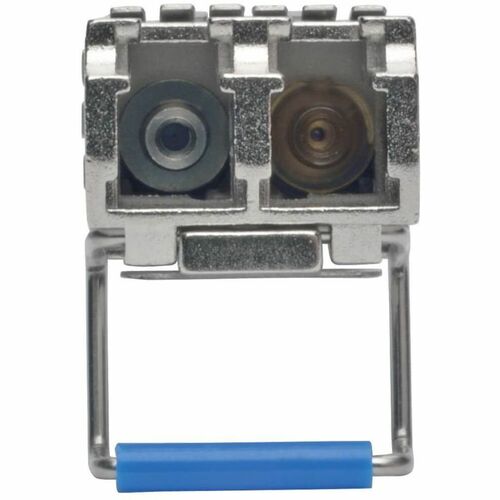

The N286-01GLX-SLX HP J4859C Compatible 1000Base-LX LC SFP Transceiver with a duplex LC female connector functions just like the HP J4859C transceiver module and is designed to operate with HP networking equipment. It also meets or exceeds the J4859C's original specifications and complies with MSA (Multi-Source Agreement) standards.
This 1000Base-LX transceiver is fully hot-pluggable, so you can install it without shutting down the network or rebooting your device. It supports data transfer rates up to 1 Gbps with 1310 nm wavelength signaling. It transmits across six miles (10 kilometers) of 9/125 SMF cabling.
The N286-01GLX-SLX also supports DDM, so you can monitor optical output power, optical input power, temperature, laser bias current and transceiver supply voltage. It is electrical interface-compliant with SFF-8431 specification.
- Supports data transfer rates up to 1 Gbps
- Transmits up to 6 mi. (10 km) with 9/125 SMF cabling
- Supports Digital Diagnostic Monitoring
- Complies with MSA standards
- 100% compatible with HP networking hardware
Technical Specifications
| Technical Information | |
| Application/Usage | Data Networking |
| Optical Network | |
| Interfaces/Ports | |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-LX Network |
| Connector Type | LC |
| Total Number of Ports | 1 |
| Media & Performance | |
| Network Technology | 1000Base-LX |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Miscellaneous | |
| Package Contents |
|
| Compatibility |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 0.80 oz (22.68 g) |
| Form Factor | Hot-pluggable |
| Height | 0.33" (8.38 mm) |
| Width | 0.52" (13.21 mm) |
| Depth | 2.24" (56.90 mm) |
| General Information | |
| Product Type | SFP (mini-GBIC) |
| Manufacturer Part Number | N286-01GLX-SLX |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N286-01GLX-SLX |
| Product Name | HP N286-01GLX-SLX SFP (mini-GBIC) Module |
| Brand Name | Tripp Lite series |
