About the product

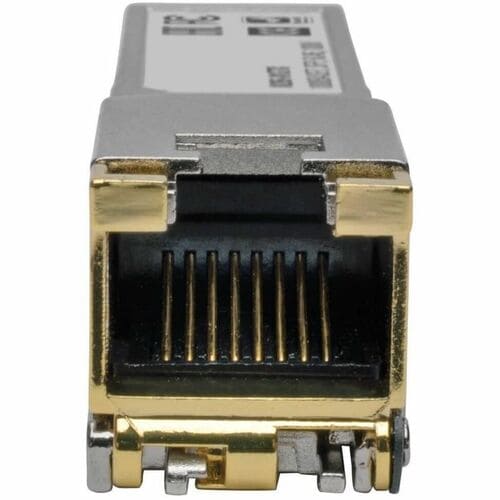

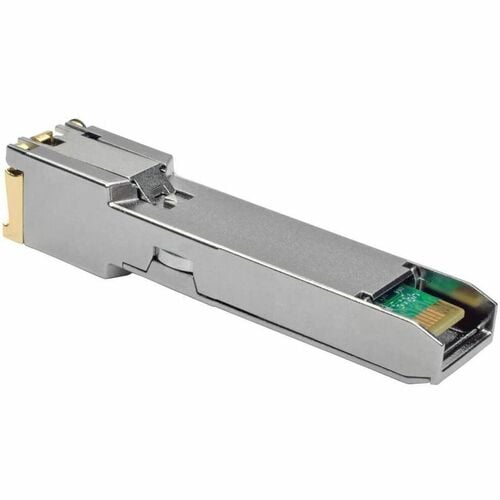

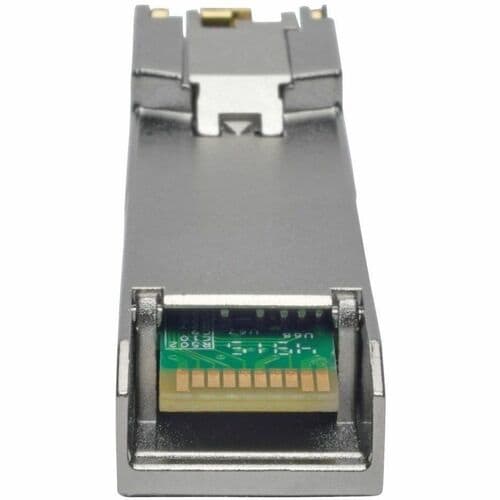

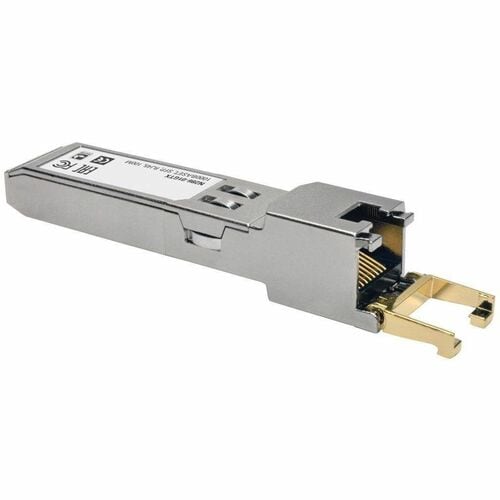

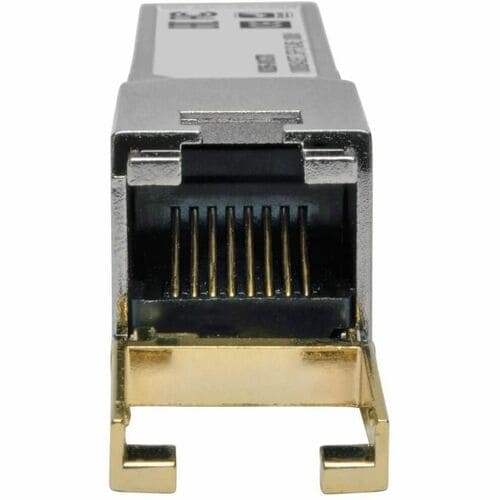

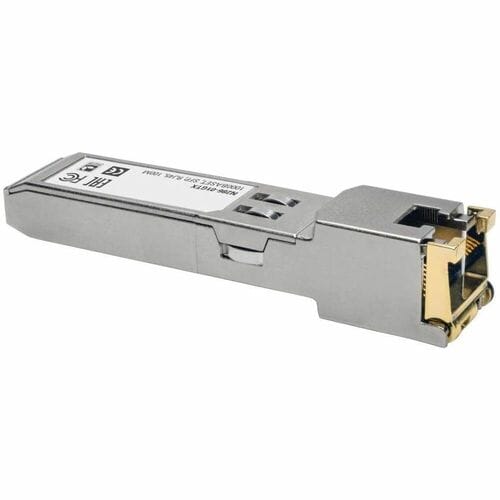

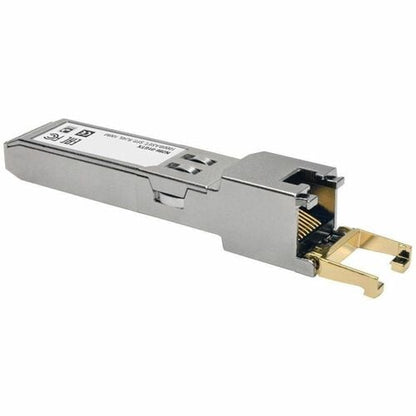

The N286-01GTX Cisco GLC-T Compatible 1000Base-TX Copper RJ45 SFP Mini Transceiver with an RJ45 Ethernet connector functions just like the Cisco® GLC-T transceiver module and is designed to operate with Cisco networking equipment. It also meets or exceeds the GLC-T's original specifications and complies with MSA standards.
This 1000Base-TX copper transceiver is fully hot-pluggable, so you can install it without shutting down the network or rebooting your device. It supports data transfer rates up to 1 Gbps with auto-negotiation up to 328 feet (100 meters) and automatic MDI/MDI-X crossover support. Its metallic housing allows low EMI and power dissipation. It supports up to 1.25 Gbps bi-directional communication.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet connection and provides high-performance
- With 1000Base-TX technology, get up to 1000Mbps data transfer rate over twisted pair cable
Technical Specifications
| Technical Information | |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Interfaces/Ports Details | 1 x RJ-45 1000Base-TX LAN |
| Connector Type | RJ-45 |
| Total Number of Ports | 1 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Media & Performance | |
| Network Technology | 1000Base-TX |
| Twisted Pair Cable Standard | Category 6 |
| Category 5e | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Weight (Approximate) | 0.71 oz (20 g) |
| Form Factor | Hot-pluggable |
| Height | 0.33" (8.40 mm) |
| Width | 0.52" (13.20 mm) |
| Depth | 2.24" (56.90 mm) |
| General Information | |
| Product Type | SFP (mini-GBIC) |
| Manufacturer Part Number | N286-01GTX |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N286-01GTX |
| Product Name | N286-01GTX Cisco GLC-T Compatible 1000Base-TX Copper RJ45 SFP Mini Transceiver |
| Brand Name | Tripp Lite by Eaton |
