About the product
100 GbE Cable Supports Higher Bandwidths Needed for Data Networking

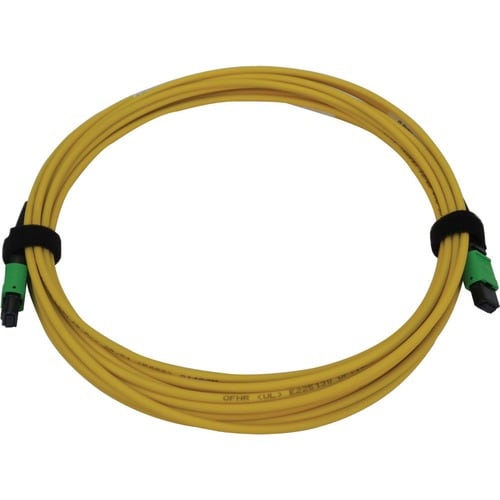

As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths in enterprise applications in wiring closets, telecom rooms and data centers. This singlemode 9/125 OS2 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1550 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb.
100% Tested for Low Insertion Loss and Back Reflection

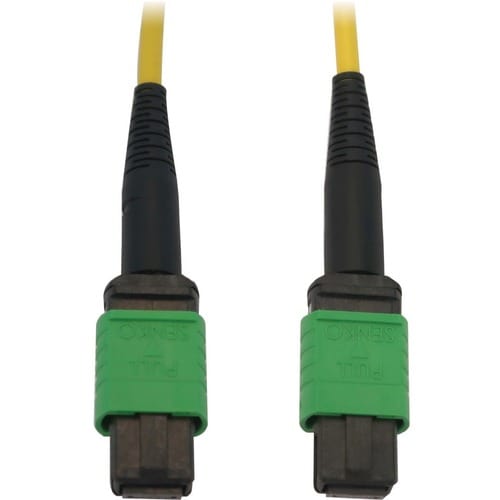

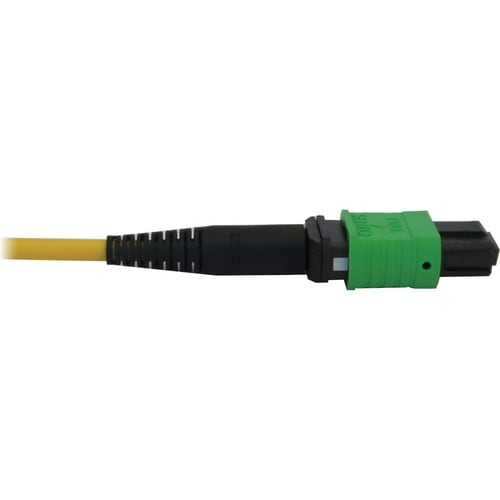

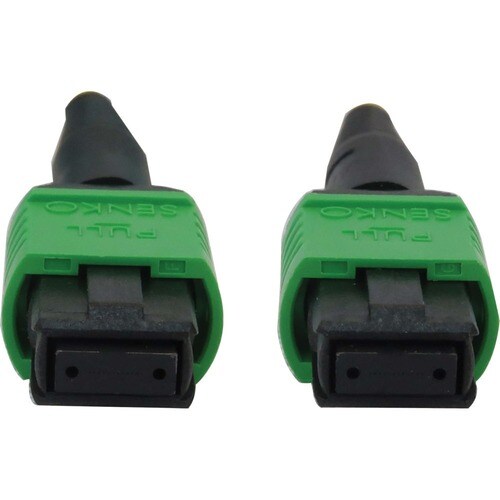

The 12-fiber MTP/MPO APC connectors with green housings help minimize back reflection with low insertion loss.
Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
- Features Bendable
- Offers a reliable network connectivity
- Features Fiber Optic cable type
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N390B05M12AP |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N390B-05M-12-AP |
| Product Name | N390B-05M-12-AP Fiber Optic Network Cable |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 1.87 oz (53.07 g) |
| Shipping Height | 0.50" (12.70 mm) |
| Shipping Width | 7" (177.80 mm) |
| Product Color | Green |
| Color Family | Green |
| Jacket Color | Yellow |
| Connector Color | Black |
| Technical Information | |
| Cable Length | 16.4 ft (5 m) |
| Data Transfer Rate | 400 Gbit/s |
| Device Supported | Switch |
| Network Device | |
| Patch Panel | |
| Jacket Type | OFNR |
| LSZH | |
| Features | Stranded |
| Bendable | |
| Angled Physical Contact (APC) | |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | MTP/MPO Network - Female |
| Fiber Optic Mode | Single-mode |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector on Second End Details | 1 x MTP/MPO Network - Female |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
