About the product

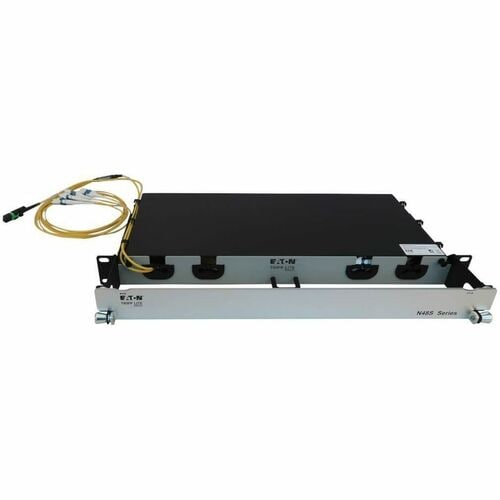

1U panel comes preloaded with spools of singlemode fiber cable that allow you to extend the exact length required and store the excess out of sight.
Description
Preloaded Fiber Panel, 1U - 4x (12F MTP/MPO-APC to 4x LC Duplex F/M) 8F Trunk Cables, OS2 Singlemode, 10 m (32.8 ft.)
Features
1U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time

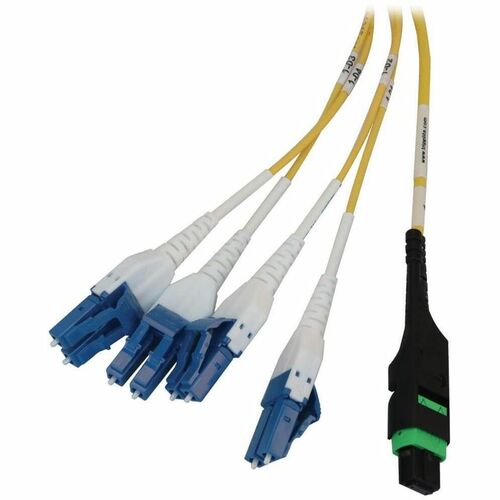

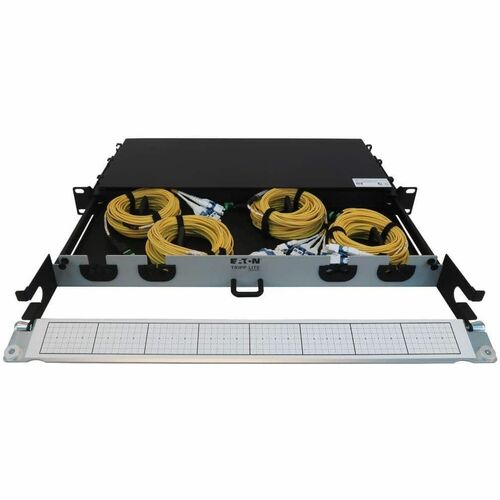

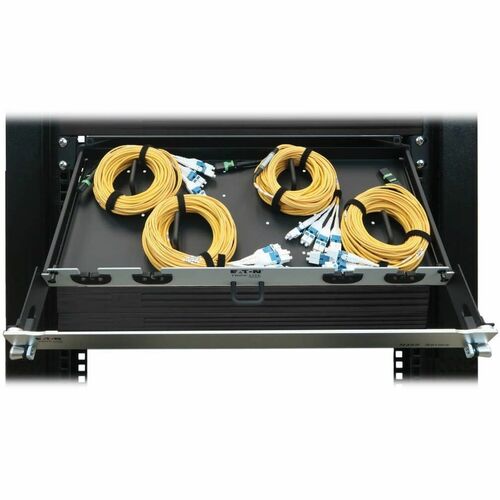

All necessary cabling is included with this preloaded fiber panel, coiled inside and ready for immediate use. The aluminum 1U chassis features four 8-fiber MTP/MPO-APC to LC Duplex singlemode trunk cables, all 10 meters (32.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter, allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. The N48S-4M8L4-10 mounts in just 1U of space in an EIA-standard 19-inch rack.
Technical Specifications
| Interfaces/Ports | |
| Number of LC Ports | 4 |
| LC Port Type | Duplex |
| Miscellaneous | |
| Additional Information | OVERVIEW
Firmware / Software Docs
PHYSICAL
COMMUNICATIONS
|
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | Network Patch Panel |
| Manufacturer Part Number | N48S4M8L410 |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | N48S-4M8L4-10 |
| Product Name | N48S-4M8L4-10 Preloaded Fiber Panel |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.32" (439.93 mm) |
| Depth | 10.20" (259.08 mm) |
| Compatible Rack Unit | 1U |
| Compatible Rack Width | 19" |
| Product Color | Aqua |
| Color Family | Green |
| Product Material | PVC |
| Aluminum |
