About the product
This 7-foot Cat6 cable meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections. Plus, the cable features a durable white PVC jacket that enables you to color code your network cable runs as needed.

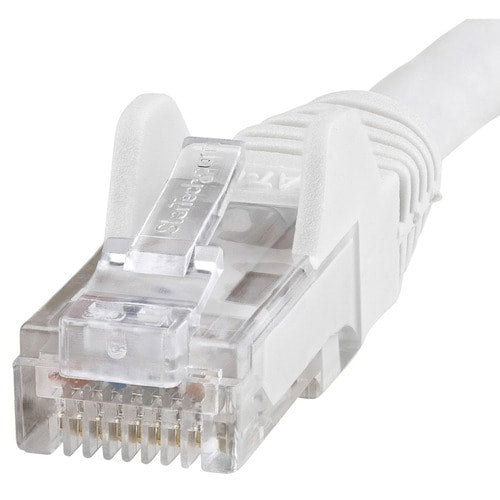

For easier cable runs, the snagless connectors protect the cable's RJ45 clips during installation, making them less likely to snag or break. This ensures a sturdy connection by preventing the cable from becoming loose from the port.
The cable features molded boots that offer connector strain relief, by stopping the RJ45 connector termination points from bending at sharp angles, and reducing the risk of damage to the cable, which could decrease network performance.
Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The N6PATCH7WH is backed by StarTech.com's lifetime warranty for guaranteed reliability.
For easier cable runs, the snagless connectors protect the cable's RJ45 clips during installation, making them less likely to snag or break. This ensures a sturdy connection by preventing the cable from becoming loose from the port.
The cable features molded boots that offer connector strain relief, by stopping the RJ45 connector termination points from bending at sharp angles, and reducing the risk of damage to the cable, which could decrease network performance.
Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The N6PATCH7WH is backed by StarTech.com's lifetime warranty for guaranteed reliability.
More from the Manufacturer
- High quality 24 AWG copper wire
- ETL Verified
- HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 160'; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6; ETL Verified
- POE SUPPORT: 24 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating
- QUALITY CONSTRUCTION: ETL & UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
- EASY INSTALLATION: 7 foot snagless patch cord for easy installation & flexible disconnection in wiring conduits; Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces
- SPECS: Length: 7ft (2m) | Color: White | 650 MHz Rated | Structure: 4 Pair UTP | RJ45 | Jacket: PVC | Wire Gauge: 24 AWG Copper | Wiring: ANSI/T568B | ETL Verified | Warranty: Lifetime
Technical Specifications
| Miscellaneous | |
| Additional Information |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N6PATCH7WH |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Model | N6PATCH7WH |
| Product Name | 7 ft White Snagless Cat6 UTP Patch Cable |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 3.84 oz (108.86 g) |
| Weight (Approximate) | 3.50 oz (99.22 g) |
| Shipping Height | 0.55" (13.97 mm) |
| Shipping Width | 7.87" (199.90 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | White |
| Color Family | White |
| Product Material | Copper |
| Technical Information | |
| Cable Length | 7 ft (2.13 m) |
| Conductor | Copper |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Workstation |
| Wall Outlet | |
| Distribution Panel | |
| Network Device | |
| IP Phone | |
| Hub | |
| Jacket Type | CMG |
| Shielding | No |
| Features | PoE |
| Molded | |
| Minimized Near-End Crosstalk (NEXT) | |
| Heat Resistant | |
| Fray Resistant | |
| Flexible | |
| Damage Resistant | |
| Corrosion Resistant | |
| Stranded | |
| Strain Relief | |
| Snag Resistant | |
| Rust Resistant | |
| PoE++ | |
| Break Resistant | |
| Booted | |
| Bend Resistant | |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6 |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Plating | Gold |
| American Wire Gauge | 24 AWG |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Boot Type | Snagless |
| Molded | |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
