About the product

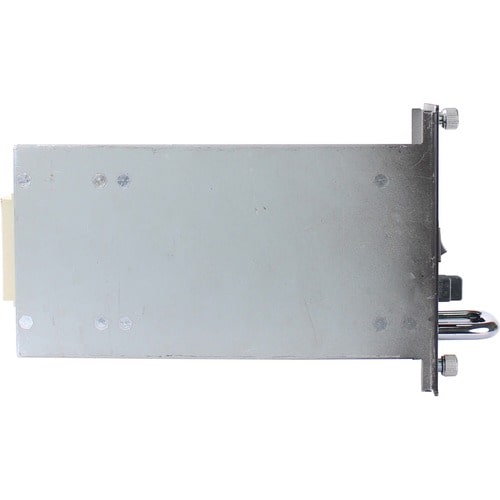

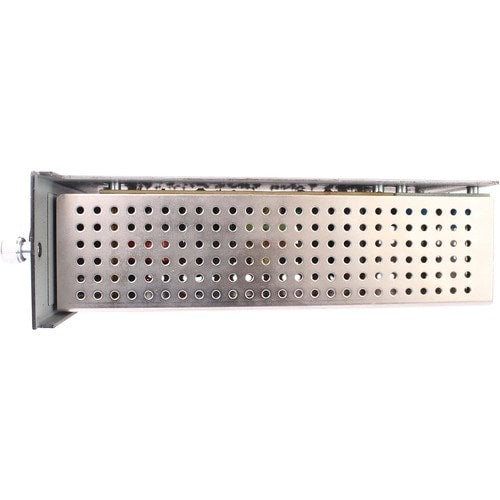

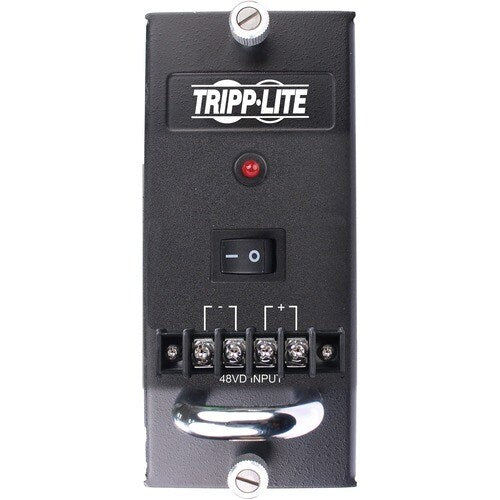

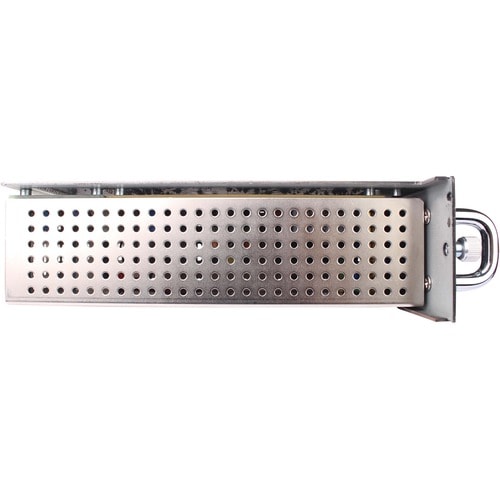

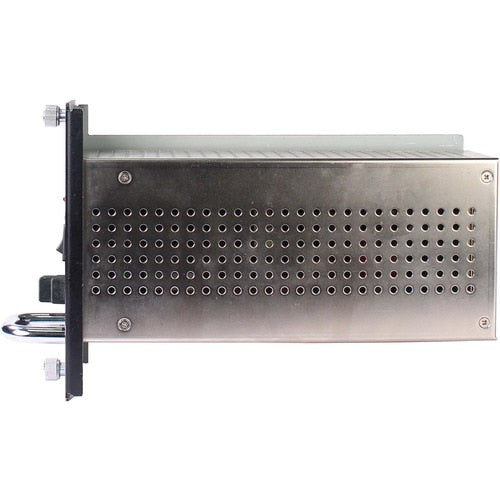

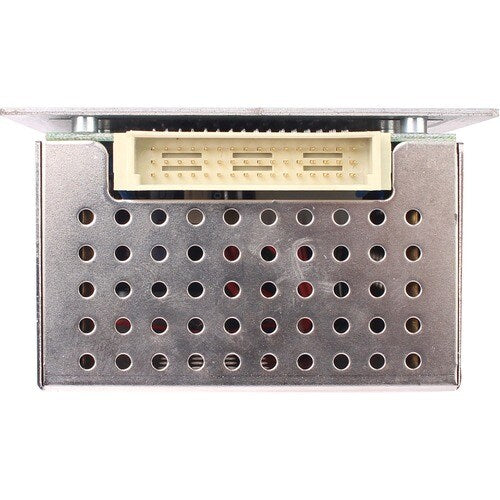

Powers Your Tripp Lite N785-CH12 12-Port Media Converter Chassis
This 75-watt DC power supply works with the Tripp Lite N785-CH12 media converter chassis to provide primary or redundant power. The N785-CH12 comes wiwith a pre-installed AC power supply, but you can swap it out for the N785-CH75W-DC if you prefer DC power. This DC power supply can be used with any DC power source up to 48V 3A. A second DC power supply is also recommended to provide redundant power that helps prevent unwanted and expensive downtime.
Technical Specifications
| Miscellaneous | |
| Compatibility | Tripp Lite N785-CH12 Media Converter Chassis |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 3.75 lb (1700.97 g) |
| Form Factor | Box |
| Height | 3.39" (86.11 mm) |
| Width | 9.25" (234.95 mm) |
| Depth | 10.43" (264.92 mm) |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Power | 75 W |
| Output Voltage | 12 V |
| Output Current | 6.50 A |
| Output Voltage Detail | 12 V @ 6.5 A |
| General Information | |
| Product Type | Power Supply |
| Manufacturer Part Number | N785CH75WDC |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 |
| Manufacturer | Eaton Corporation |
| Product Name | 75W Power Supply |
| Brand Name | Tripp Lite by Eaton |
