About the product
Customizable media converter extends your copper Gigabit Ethernet network connection over fiber optic cable with the addition of PoE.
- Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
- Customizable SFP port supports both 1G single- and multimode transceivers

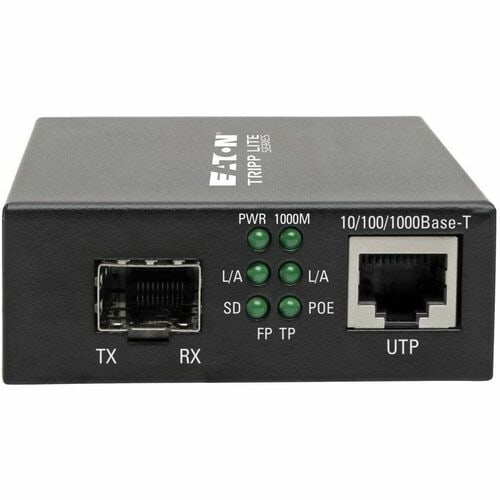

- RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
- Supports both full- and half-duplex operation
- Works in tandem with Tripp Lite N785-Series non-PoE converters (sold separately)
- Connect different types of media within a network with this single port
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over supported network cable
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
Technical Specifications
| Power Description | |
| Power Source | Power Supply |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Single-mode |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| 1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 7.04 oz (199.58 g) |
| Height | 0.98" (24.89 mm) |
| Width | 3.74" (95 mm) |
| Depth | 2.76" (70.10 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | N785-P01-SFP |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N785-P01-SFP |
| Product Name | Gigabit SFP Fiber to Ethernet Media Converter, POE+ - 10/100/1000 Mbps |
| Brand Name | Tripp Lite by Eaton |
