About the product

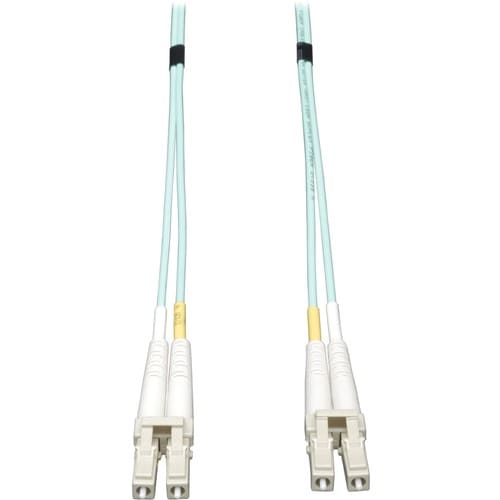

Tripp Lite's N820-20N is an OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cable, for use with 10Gb Ethernet applications. 50/125um, LC/LC Fiber Optic cables provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Single mode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.
- Designed for 10-Gig Ethernet applications...OM3 Rated
- Backward compatible with existing 50/125 fiber
- Max 10Gb distance of 300 meters @850nm
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 3.20 oz (90.72 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Product Color | Aqua Blue |
| Color Family | Blue |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N82012M |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N820-12M |
| Product Name | Fiber Optic Duplex Patch Cable |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 39.4 ft (12 m) |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | LC - Male |
| Connector Type on Second End | LC - Male |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 2 x LC - Male |
| Connector on Second End Details | 2 x LC - Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
Product compare
Product warranty
Standard manufacturer warranty as applicable
Return policy
15 days return in original condition.
