About the product
400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data Networking
As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This duplex multimode 50/125 OM4 cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It is also backward compatible with 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.

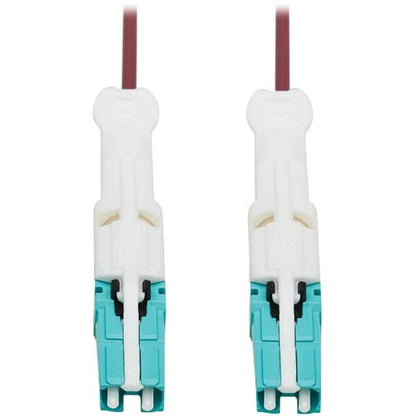

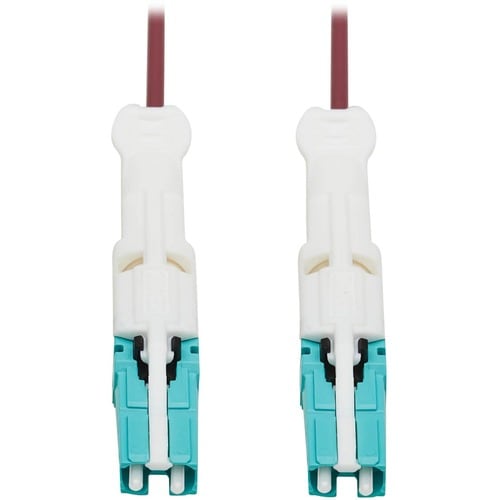

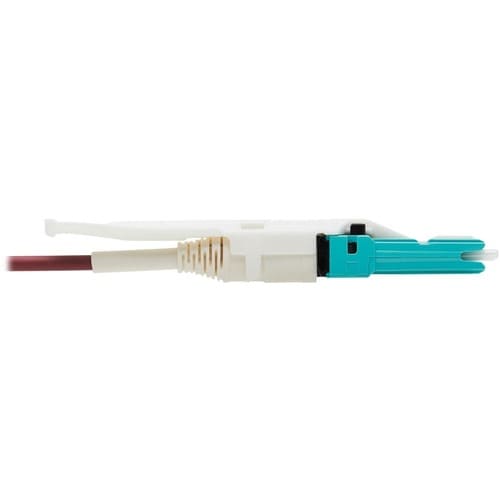

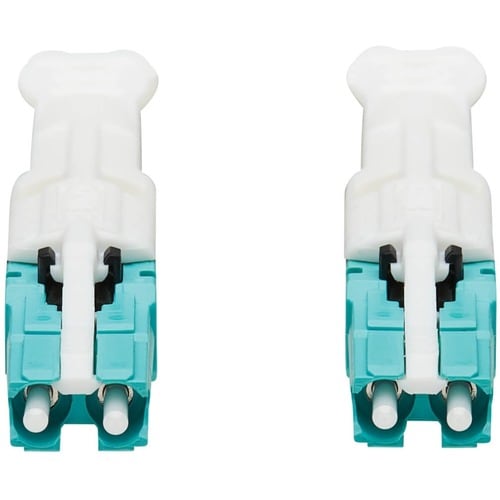

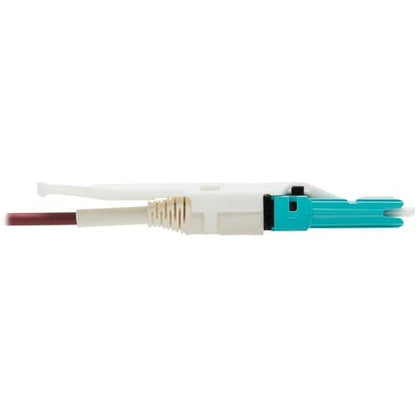

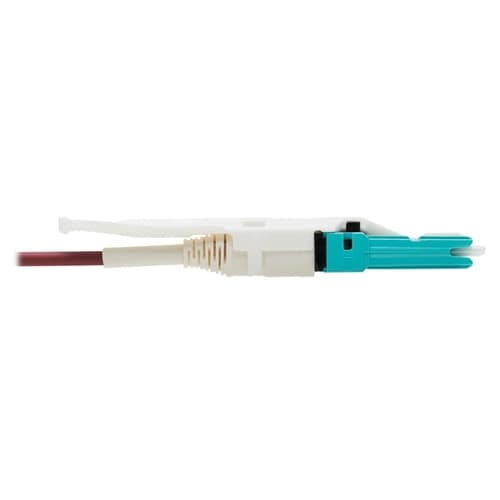

Compact CS Connectors Designed for the Latest QSFP-DD Transceivers
The CS ends are 40 percent smaller than standard LC connectors, making them compatible with the latest 400G QSFP-DD transceivers and an excellent solution for high-density network applications. Push/pull tabs allow dense vertical stacking in switches or patch panels where space is at a premium and make the cable easy to install or remove with one hand.

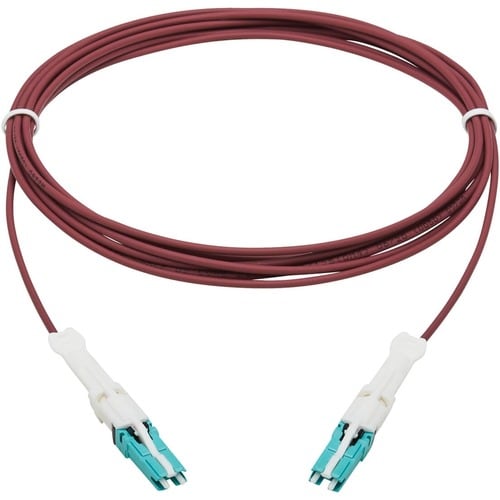

Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
- Features Push-Pull Tab
- Experience a simpler way to connect devices with the entire business network
- Features Fiber Optic cable type
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N822C-03M-MG |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N822C-03M-MG |
| Product Name | N822C-03M-MG Fiber Optic Duplex Patch Network Cable |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 0.80 oz (22.68 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Product Color | Aqua |
| Magenta | |
| White | |
| Color Family | Multicolor |
| Jacket Color | Magenta |
| Technical Information | |
| Cable Length | 9.8 ft (3 m) |
| Data Transfer Rate | 400 Gbit/s |
| Device Supported | Network Switch |
| Patch Panel | |
| Transceiver | |
| Network Device | |
| Jacket Type | LSZH |
| Features | Push-Pull Tab |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | CS Network - Male |
| Connector Type on Second End | CS Network - Male |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 2 x CS Network - Male |
| Connector on Second End Details | 2 x CS Network - Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
