About the product
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking

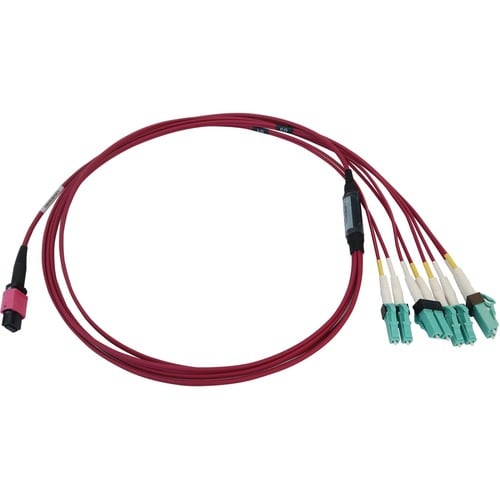

As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 fan-out cable is an ideal choice for 100 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Switchable LC Connectors Allow Easy Polarity Conversions
The switchable LC/PC duplex ends let you easily switch the fiber polarity without tools or the need to re-terminate the connectors. Use the detachable clip to keep the connectors in place while in use.
Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The connectors' slim boots allow easy one-handed installation and removal of the cable.
- Features Stranded
- Allows you to access all of the networked data, swiftly and securely
- Features Fiber Optic cable type
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EcoLogo |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 2.18 oz (61.69 g) |
| Shipping Height | 0.50" (12.70 mm) |
| Shipping Width | 7" (177.80 mm) |
| Jacket Color | Magenta |
| Connector Color | Black |
| Aqua | |
| Magenta | |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N845X01M8LMG |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Piece |
| Manufacturer | Eaton Corporation |
| Product Model | N845X-01M-8L-MG |
| Product Name | N845X-01M-8L-MG Fiber Optic Duplex Trunk Network Cable |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 3.3 ft (1 m) |
| Data Transfer Rate | 100 Gbit/s |
| Device Supported | Patch Panel |
| Switch | |
| Network Device | |
| Jacket Type | OFNR |
| LSZH | |
| Features | Stranded |
| Polished Connector (PC) | |
| Bendable | |
| Push-Pull Tab | |
| Cable Characteristic | Trunk Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector on Second End Details | 8 x LC Network - Male |
| Boot Type | Slim |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
