Tripp Lite by Eaton 3M MTP / MPO Patch Cable

Name: Tripp Lite by Eaton 3M MTP / MPO Patch Cable
Brand: Tripp Lite
SKU: CBNE2591N
Price: 477.59 CAD
Availability: OutOfStock

$477.59 CAD

~~$534.90 CAD~~ $477.59 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

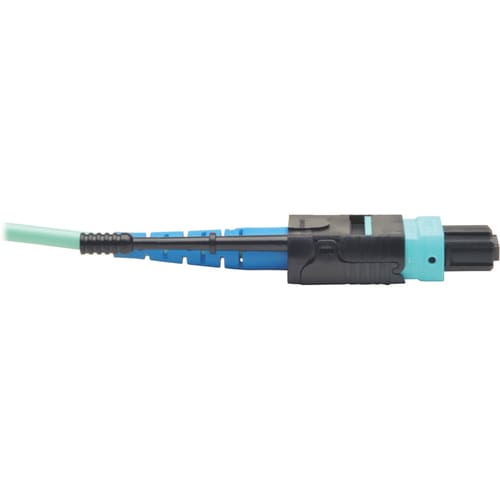

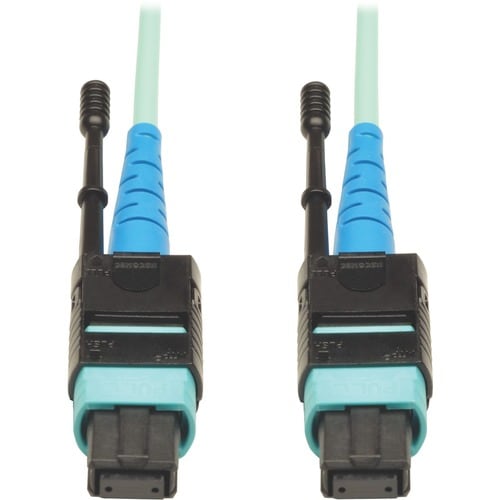

Tripp Lite by Eaton 3M MTP / MPO Patch Cable, 24 Fiber, 100GbE Aqua OM3 Plenum - 10 ft (3.05 m) Fiber Optic Network Cable for Network Device - First End: 1 x MTP/MPO Network - Second End: 1 x MTP/MPO Network - Patch Cable - 50/125 µm - Aqua

VPN:N846-03M-24-P SKU:CBNE2591N CPU:37332186751

Hi-density MTP/MPO 24-fiber connectors for reduced cabling
Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
OM3 rated 50/125 Multimode

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Tripp Lite by Eaton 3M MTP / MPO Patch Cable

About the product

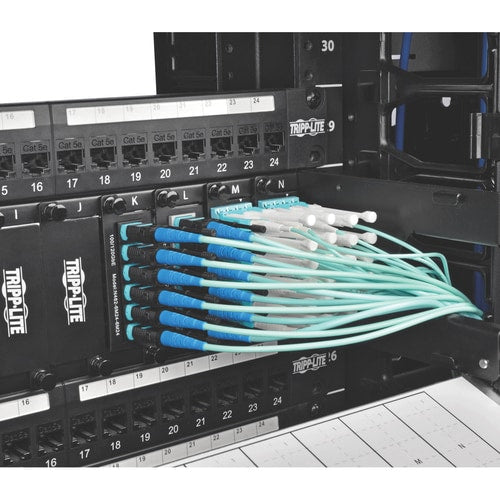

Tripp Lite MTP/MPO to MTP/MPO fiber patch cables allow high-density connections between network equipment in telecommunication rooms. They feature Push/Pull tab connectors that offer maximum accessibility in high density installations; install / remove with one hand. The MTP/MPO connector is approximately the same size of a SC connector but since it can accommodate 24 fibers, it provides up to 24 times the density, thereby offering savings in circuit card and rack space. N846 series cables are manufactured using laser-optimized, 50/125, OM3 multimode cable, and support speeds up to 100GbE.

Hi-density MTP/MPO 24-fiber connectors for reduced cabling
Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
OM3 rated 50/125 Multimode
Supports to 1000GbE speeds

Technical Specifications

Miscellaneous
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Physical Characteristics
Shipping Weight (Approximate)	1.28 oz (36.29 g)
Shipping Height	9" (228.60 mm)
Shipping Width	7" (177.80 mm)
Product Color	Aqua
Color Family	Green
General Information
Product Type	Network Cable
Manufacturer Part Number	N84603M24P
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Manufacturer	Eaton Corporation
Product Model	N846-03M-24-P
Product Name	3M MTP / MPO Patch Cable, 24 Fiber, 100GbE Aqua OM3 Plenum
Product Series	N846
Brand Name	Tripp Lite by Eaton
Technical Information
Cable Length	10 ft (3.05 m)
Device Supported	Network Device
Cable Characteristic	Patch Cable
Cable Type	Fiber Optic
Connector Type on First End	MTP/MPO Network
Connector Type on Second End	MTP/MPO Network
Fiber Optic Mode	Multi-mode
Connector on First End Details	1 x MTP/MPO Network
Connector on Second End Details	1 x MTP/MPO Network
Fiber Optic Cable Core/Cladding Specification	50/125 µm
