About the product
40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data Networking

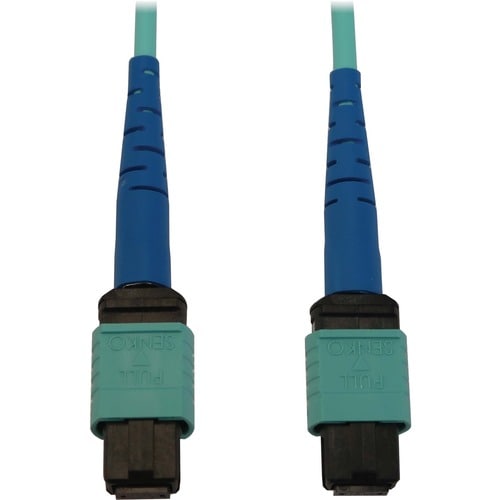

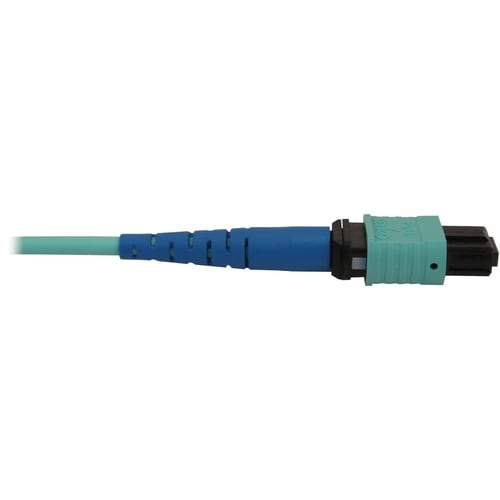

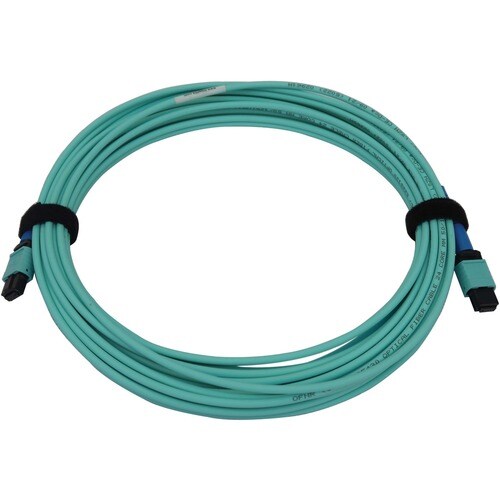

The N846B-10M-24-P is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM3 cable is an ideal choice for 400 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb, 25 Gb, 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
100% Tested for Low Insertion Loss and Attenuation Loss

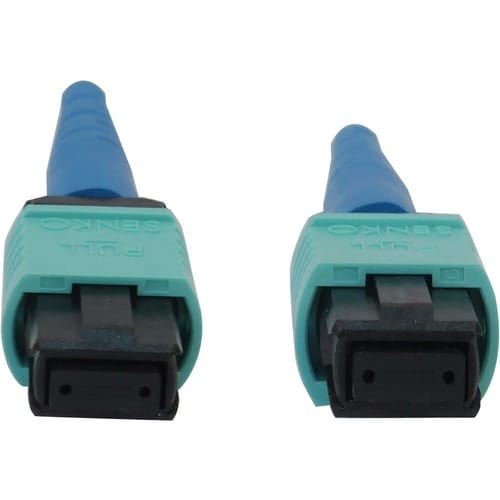

The cable is tested for low insertion loss on the factory-terminated 24-fiber MTP/MPO connectors and attenuation loss that meets or exceeds current standards. The connectors' slim boots allow easy one-handed installation and removal of the cable.
Aqua-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM3-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
- Features Stranded
- Allows you to access all of the networked data, swiftly and securely
- Features Fiber Optic cable type
- Fully compatible with patch panels
- Fully compatible with switches
- For exceptional quality, upright compatibility and reliability use this Network Cable
- This Network Cable provides splendid performance and clear connectivity
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EcoLogo |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 3.36 oz (95.25 g) |
| Shipping Height | 0.50" (12.70 mm) |
| Shipping Width | 7" (177.80 mm) |
| Jacket Color | Aqua |
| Connector Color | Black |
| Blue | |
| Aqua | |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N846B10M24P |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Piece |
| Manufacturer | Eaton Corporation |
| Product Model | N846B-10M-24-P |
| Product Name | N846B-10M-24-P Fiber Optic Network Cable |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 32.8 ft (10 m) |
| Data Transfer Rate | 400 Gbit/s |
| Device Supported | Switch |
| Patch Panel | |
| Network Device | |
| Jacket Type | OFNR |
| LSZH | |
| Features | Stranded |
| Polished Connector (PC) | |
| Bendable | |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | MTP/MPO Network - Female |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector on Second End Details | 1 x MTP/MPO Network - Female |
| Boot Type | Slim |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
