About the product
40/100/400 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking

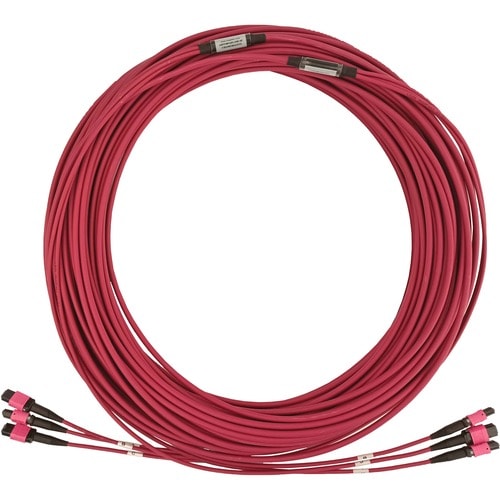

The N858B-23M-3X8MG is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 400 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb or 400 Gb.
Magenta-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime

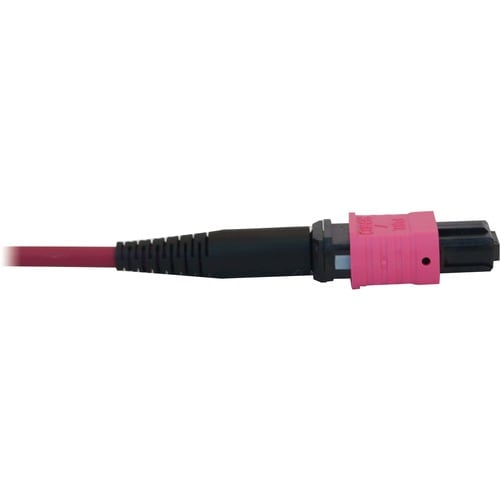

The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The connectors' slim boots and magenta housings allow easy one-handed installation and removal of the cable.
- Features Stranded
- Experience a simpler way to connect devices with the entire business network
- Features Fiber Optic cable type
- Fully compatible with patch panels
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EcoLogo |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 1.70 lb (771.11 g) |
| Shipping Height | 0.50" (12.70 mm) |
| Shipping Width | 10.50" (266.70 mm) |
| Jacket Color | Magenta |
| Connector Color | Black |
| Magenta | |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N858B23M3X8MG |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Piece |
| Manufacturer | Eaton Corporation |
| Product Model | N858B-23M-3X8MG |
| Product Name | N858B-23M-3X8MG Fiber Optic Trunk Network Cable |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 75.5 ft (23 m) |
| Data Transfer Rate | 400 Gbit/s |
| Device Supported | Network Device |
| Patch Panel | |
| Switch | |
| Jacket Type | OFNR |
| LSZH | |
| Features | Polished Connector (PC) |
| Bendable | |
| Stranded | |
| Cable Characteristic | Trunk Cable |
| Cable Type | Fiber Optic |

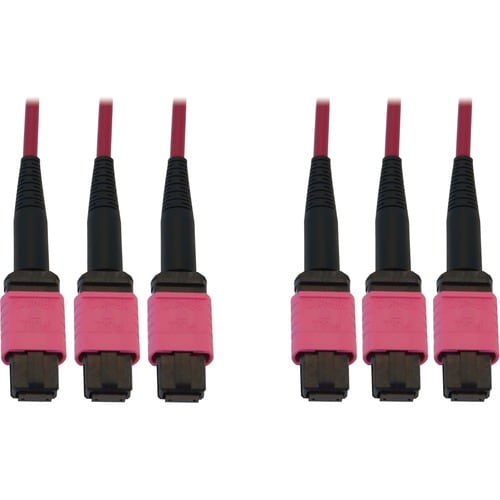

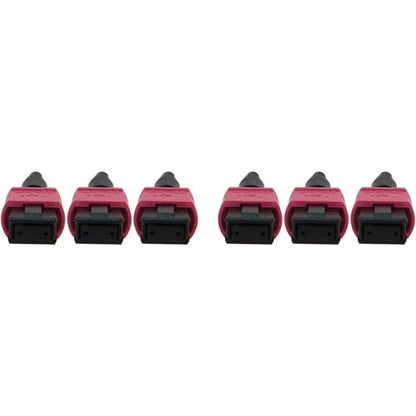

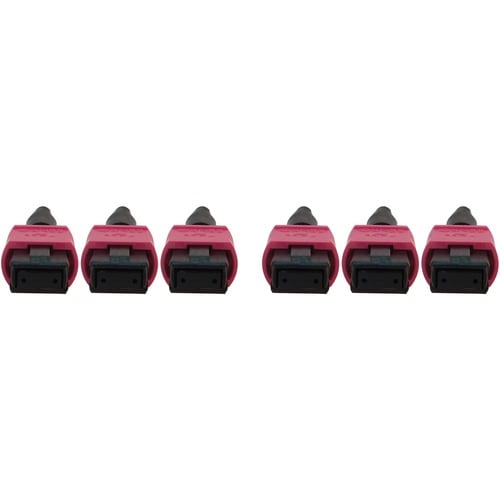

| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | MTP/MPO Network - Female |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 3 x MTP/MPO Network - Female |
| Connector on Second End Details | 3 x MTP/MPO Network - Female |
| Boot Type | Slim |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
Product compare
Product warranty
Standard manufacturer warranty as applicable
Return policy
15 days return in original condition.
