About the product

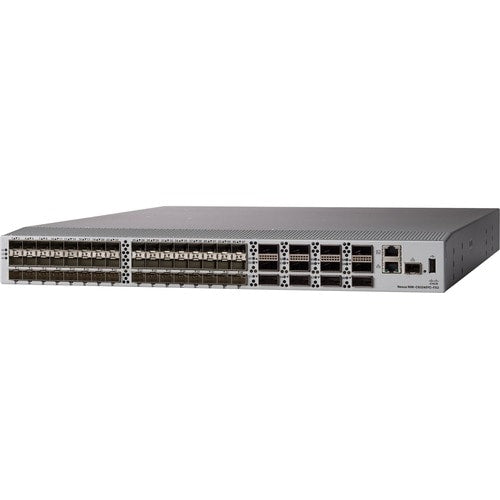

The Cisco Nexus 93240YC-FX2 Switch supports 4.8 Tbps of bandwidth and over 1.8 bpps. The 48 ports of downlinks support 1/10/25-Gbps. The 12 uplinks ports can be configured as 40- and 100-Gbps ports, offering flexible migration options. Breakout is not supported at FCS, but is on the roadmap. The switch is ideal for a non-oversubscribed solution in a compact form factor.
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| I/O Expansions | |
| Expansion Slot Type | QSFP28 |
| Number of SFP+ Slots | 1 |
| Total Number of Expansion Slots | 60.0 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 2.10" (53.34 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 23.30" (591.82 mm) |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 48 x 25 Gigabit Ethernet Expansion Slot |
| 12 x 100 Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 100GBase-X |
| 25GBase-X | |
| Ethernet Technology | 25 Gigabit Ethernet |
| 100 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Power Consumption | 298 W |
| Number of Power Supplies Supported | 2 |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | N9K-C93240YC-FX2 |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 93240YC-FX2 |
| Product Name | Nexus 93240YC-FX2 Ethernet Switch |
| Product Line | Nexus |
| Product Series | 9300 |
| Brand Name | Cisco |
