Antec Ne1000G M - Power Supply - 1000 Watt

Name: Antec Ne1000G M - Power Supply - 1000 Watt
Brand: Antec
SKU: T103306
Price: 250.27 CAD
Availability: InStock

$250.27 CAD

~~$275.30 CAD~~ $250.27 CAD

-9% OFF Ask for quote

Shipping calculated at checkout.

Antec Neoeco Fully Modular Gold 1000W, Atx 3.0, White 7 Years Warranty

VPN:NE1000G M WHITE ATX 3.0 SKU:T103306 UPC:761345117883

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Antec Ne1000G M - Power Supply - 1000 Watt

About the product

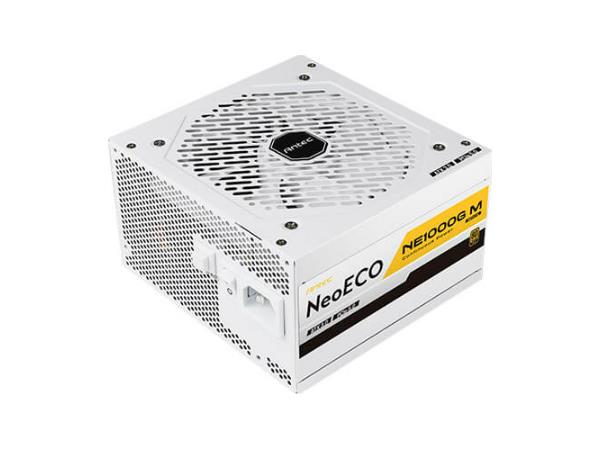

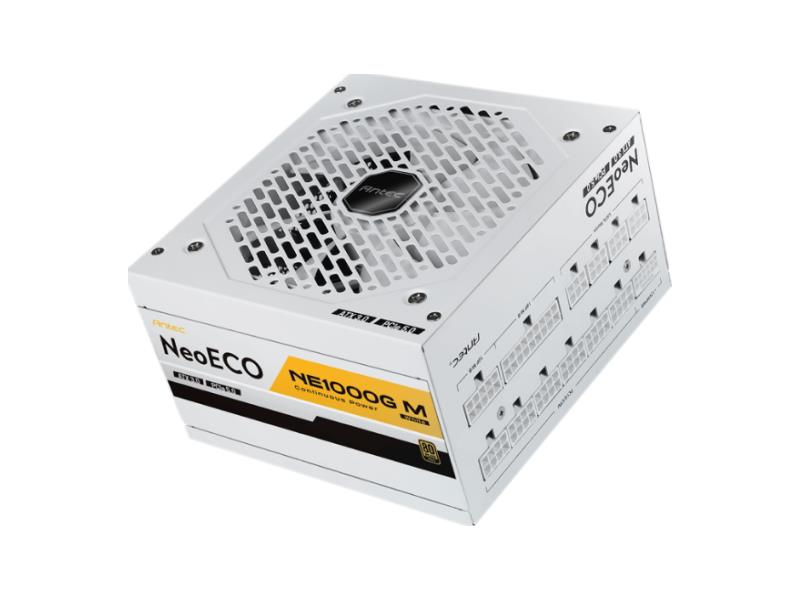

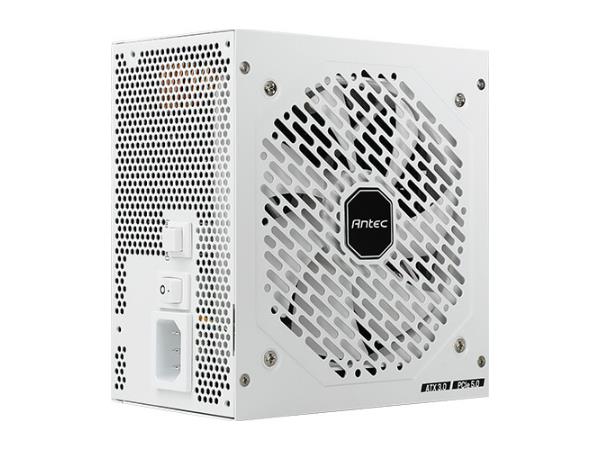

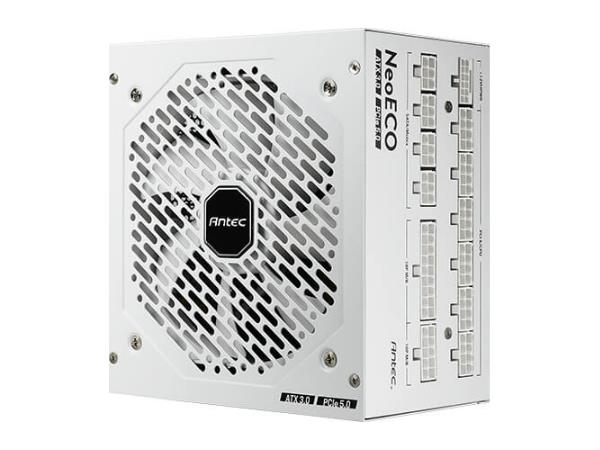

The Antec NE1000G M power supply is designed to meet the needs of demanding PC builds, offering a blend of performance, efficiency, and reliability. With an 80 PLUS Gold certification, it delivers high energy efficiency, reducing electricity usage and operating costs. The unit supports PCIe 5.0 standard, ensuring compatibility with next-generation hardware. A 120 mm fluid dynamic bearing cooling fan maintains a quiet operation, with a Zero RPM fan mode that kicks in at low loads for near-silent performance. The fully modular cable management system allows for a clean build by using only the necessary cables. Additionally, the NE1000G M is equipped with comprehensive protection features, including overcurrent, overheat, overpower, overvoltage, short-circuit, and undervoltage protection, safeguarding your components against power anomalies. With 1000 watts of power, it's capable of supporting high-end PC builds, making it an ideal choice for gamers and professionals alike.

Technical Specifications

Primary Information
Product Description:	Antec NE1000G M - power supply - 1000 Watt
Device Type:	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:	ATX12V 3.0
80 PLUS Certification:	80 PLUS Gold
Weight:	3.62 lbs
Input Voltage:	AC 100-240 V
Output Voltage:	+3.3, +5, ±12 V
Power Capacity:	1000 Watt
Output Current:	+3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 83 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Output connectors:	1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x 16(12+4)pin PCIE 5.0 12VHPWR ¦ 2 x power 8 pin with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 4 x Molex
Modular Cable Management:	Yes
Cooling System:	120 mm fan
Color:	White
Dimensions (WxDxH):	5.9 in x 5.5 in x 3.4 in
Manufacturer Warranty:	10-year warranty
General
Device Type:	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:	ATX12V 3.0
PSU Form Factor:	ATX
Color:	White
Power Device
Input Voltage:	AC 100-240 V
Frequency Required:	50 - 60 Hz
Power Output Connectors Details:	1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x 16(12+4)pin PCIE 5.0 12VHPWR ¦ 2 x power 8 pin with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 4 x Molex
Output Voltage:	+3.3, +5, ±12 V
Power Capacity:	1000 Watt
Output Current:	+3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 83 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Modular Cable Management:	Yes
80 PLUS Certification:	80 PLUS Gold
Miscellaneous
Cooling System:	120 mm fan
Features:	Fully modular, overcurrent protection, overvoltage protection, undervoltage protection, short-circuit protection, overpower protection, overheat protection, no load operation protection, Surge & Inrush Protection (SIP), fluid dynamic bearing cooling fan, Zero RPM fan mode, CircuitShield, PhaseWave design, DC-DC technology, LLC resonant converter technology, High Quality Capacitor
Compliant Standards:	cTUVus, TUV, CB, RCM, FCC, BIS, BSMI, KC, UKCA, ICES
Manufacturer Warranty
Service & Support:	Limited warranty - 10 years
Environmental Parameters
Min Operating Temperature:	32 °F
Max Operating Temperature:	104 °F
Dimensions & Weight
Width:	5.9 in
Depth:	5.5 in
Height:	3.4 in
Weight:	3.62 lbs
