About the product

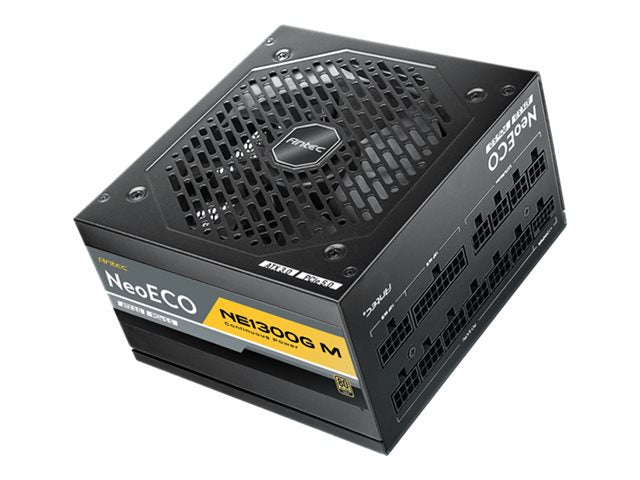

The NE1300G M ATX 3.0 power supply, designed with the ultimate performance and stability in mind for the gaming and enthusiast market. With advanced features like ATX 3.0 and high-quality JP capacitors, unparalleled stability, and 80 PLUS Gold-certified efficiencies, you can expect peak performance from your system. The PhaseWave Design ensures steady power output, while the 120mm FDB Silence Fan offers quiet cooling. The power supply is also 100% Modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield suite of industrial-grade protections provides safe and reliable power delivery in any environment. The NE1300G M ATX 3.0 is the perfect choice for building a reliable and efficient PC system for gamers and professionals.
Technical Specifications
| Primary Information | |
| Product Description: | Antec NeoECO Gold Modular NE1300G M - power supply - 1300 Watt |
| Device Type: | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance: | ATX12V 3.0 |
| 80 PLUS Certification: | 80 PLUS Gold |
| Weight: | 3.66 lbs |
| Input Voltage: | AC 100-240 V |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 1300 Watt |
| Output Current: | +5V - 20 A ¦ +3.3V - 20 A ¦ +12V - 108 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Output connectors: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power ¦ 1 x 16(12+4)pin PCIE 5.0 12VHPWR |
| Modular Cable Management: | Yes |
| Cooling System: | 120 mm fan |
| Dimensions (WxDxH): | 5.9 in x 5.5 in x 3.4 in |
| Manufacturer Warranty: | 10-year warranty |
| General | |
| Device Type: | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance: | ATX12V 3.0 |
| PSU Form Factor: | ATX |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 50 - 60 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power ¦ 1 x 16(12+4)pin PCIE 5.0 12VHPWR |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 1300 Watt |
| Output Current: | +5V - 20 A ¦ +3.3V - 20 A ¦ +12V - 108 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Gold |
| Miscellaneous | |
| Cooling System: | 120 mm fan |
| Features: | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, PhaseWave design, DC-DC technology, Zero RPM fan mode, CircuitShield, no load operation protection, fully modular, Surge & Inrush Protection (SIP) |
| Compliant Standards: | TUV, BSMI, CB, FCC, ICES, cTUVus, KC, RCM, BIS, UKCA |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 10 years |
| Environmental Parameters | |
| Min Operating Temperature: | 32 °F |
| Max Operating Temperature: | 104 °F |
| Dimensions & Weight | |
| Width: | 5.9 in |
| Depth: | 5.5 in |
| Height: | 3.4 in |
| Weight: | 3.66 lbs |
