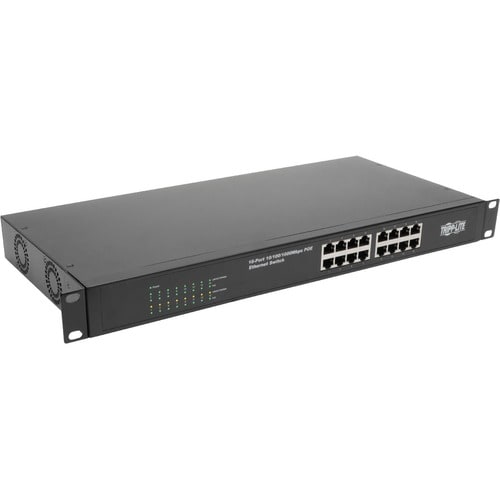

16PORT10/100/1000 MBPS 1URACK-MOUNT/DESKTOP GB

Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this Ethernet switch provides PoE+ compatibility with wireless access points and other devices with up to 30W per port and a PoE budget of 247W. Sharing large bandwidth-intensive files, such as CAD drawings and high-definition videos, at Gigabit speeds improves efficiency and cuts costly downtime. IEEE 802.3x flow control allows smooth transmission.

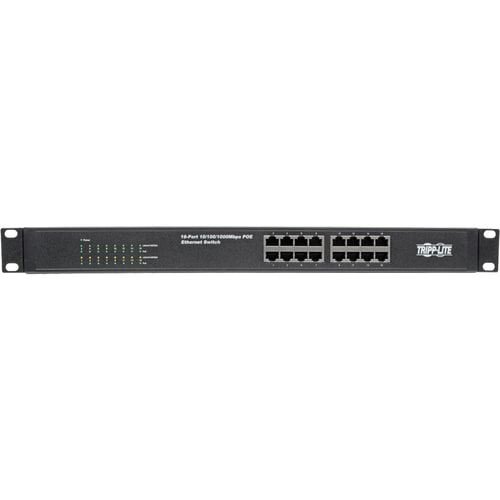

This unmanaged switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection. It's plug-and-play with no configuration required and can be up and running immediately. Easy-to-read LEDs indicate power, connection, activity and PoE status for each port.

The detachable six-foot power cord with NEMA 5-15P plug connects to any compatible AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.

Unmanaged Network Switch for Home/Small Offices, Workgroups and Security Applications

• 16 twisted-pair RJ45 Gigabit Ethernet ports with PoE+ capability
• Auto-negotiable 10/100/1000 Mbps
• Automatic MDI/MDIX cross-over detection
• 36 Gbps switching capacity (2 Gbps per port with full duplex)
• LEDs indicate power, connection, activity and PoE status per port
• Supports 10k jumbo frames, MAC address auto-learning and auto-aging, and 802.3x flow control (full duplex) and back pressure (half duplex)
• The UTP port supports the auto-negotiation function and automatically adjusts the transmission mode and transmission rate

247W Total PoE+ Budget

• Up to 30W PoE per port
• Each port supplies PoE+ power to connected devices via network cable

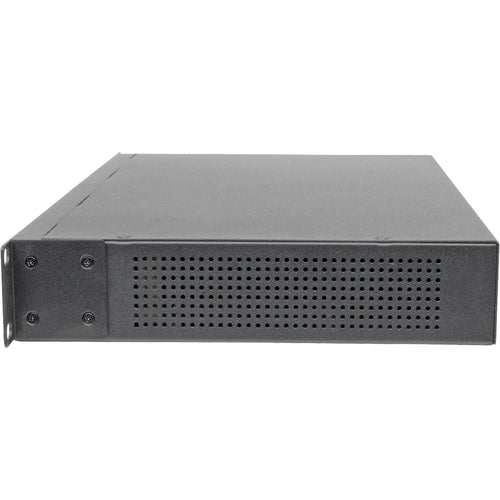

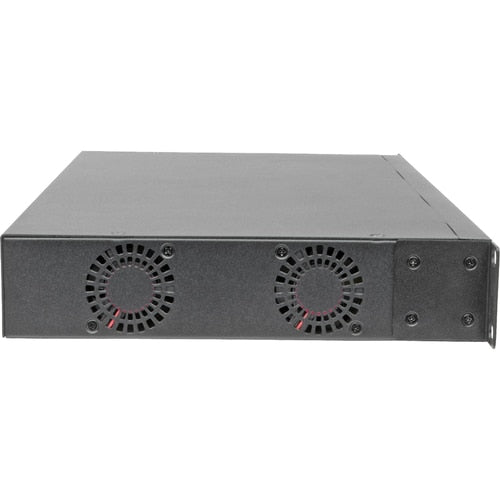

Heavy-Duty Metal Housing

• Detachable 6 ft. AC power cord with NEMA 5-15P plug
• Plug-and-play-no configuration necessary

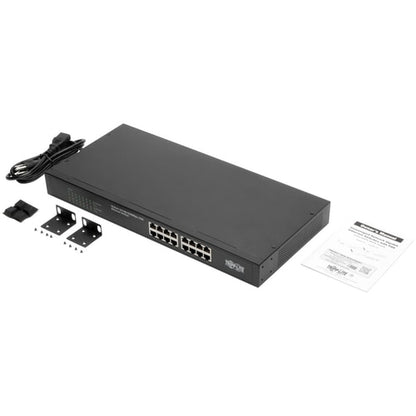

Versatile Installation Options

• Includes rubber feet for secure placement on flat desktop surface
• Mounts in 1U of EIA-standard 19 in. rack with included brackets
• Grounding lug included

Works with the Most Popular Web Browsers
The NG16POE is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NG16POE accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

• 16 auto-negotiable 10/100/1000 Mbps PoE+ RJ45 ports
• Up to 30W PoE+ per port; 230W total PoE budget
• Supports auto MDI/MDIX cross-over function
• 2 Gbps switching capacity per port with full duplex
• Plug-and-play with no configuration required
