5PORT 2.5GBPS DESKTOP GB ETHERNET UNMANAGED SWITCH WITH

Provides a 2.5 Gb Ethernet connection and power for PoE devices in your small office network or workgroup.

• Capable of 2.5 Gb Ethernet network speeds ideal for high-bandwidth applications
• Supports PoE to save you expense and effort of powering PoE devices individually
• 5 twisted-pair auto-negotiable RJ45 ports support auto MDI/MDIX functionality
• Unused ports shift into low-power state without interrupting network connection
• IEEE friendly: supports 802.3az Energy Efficient Ethernet standards
• 3-year limited warranty

Features | 5-Port Unmanaged 2.5 Gigabit Ethernet Switch for Home Offices and Workgroups

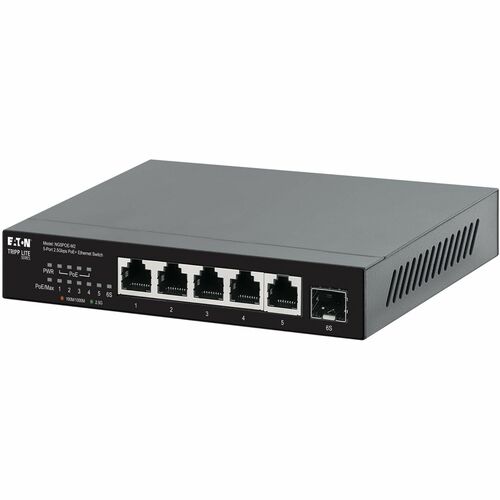

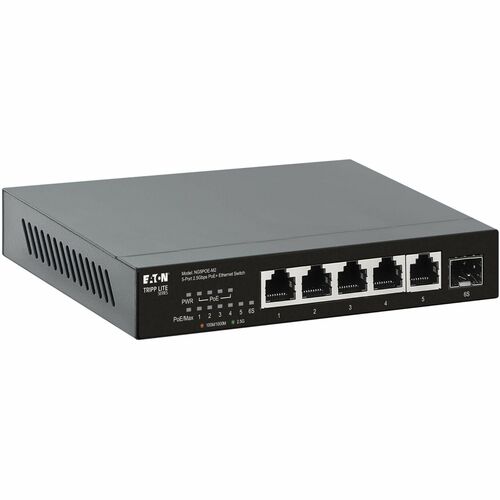

The energy-efficient NG5POE-M2 network switch connects up to five devices to a Gigabit Ethernet network and allows them to communicate with each other. It's recommended for your home network, small office, workgroup or creative production environment. It helps you share large bandwidth-intensive files, such as CAD drawings and videos, at 2.5 Gigabit (2.5 Gbps) speeds, improving efficiency and cutting costly downtime.

Maximum Network Functionality

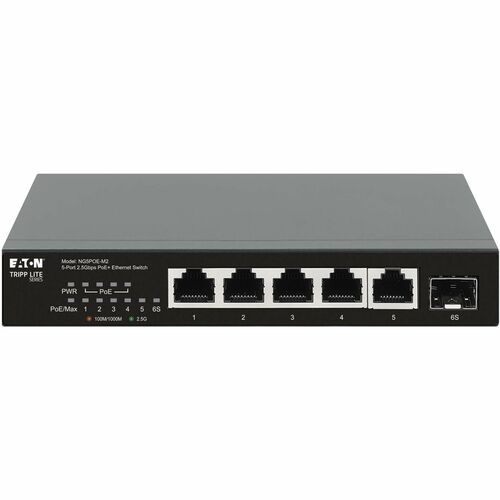

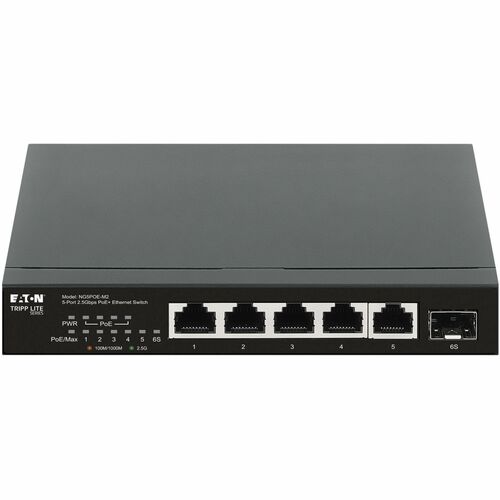

The NG5POE-M2 features five twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 2.5 Gbps and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex), back pressure (half duplex) and 45 Gbps switching capacity allow smooth transmission of large files. One 10 Gbps SFP+ port is included for uplinking data to other switches using optical fiber cabling.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices

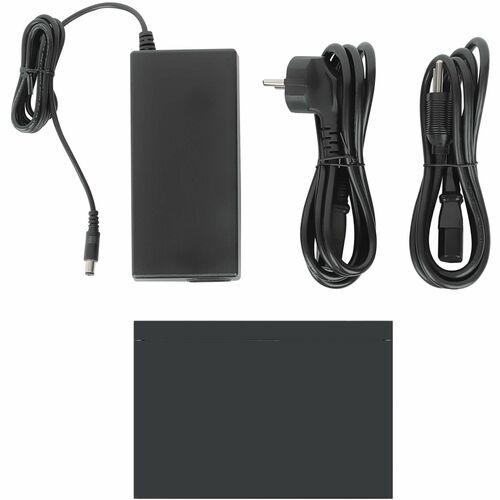

Because this network switch supports PoE, it can supply the power to operate compatible PoE devices, such as wireless LAN access points and bridges, VoIP phones and IP video cameras. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. Four RJ45 ports support up to 30W each with a total PoE budget of 70W when using the included AC power adapter.

Complies with IEEE Energy Efficient Ethernet Standards

The NG5POE-M2 supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It also meets IEEE 802.3ab, 802.3i and 802.3u standards.

Plug-and-Play Functionality for Easy Use

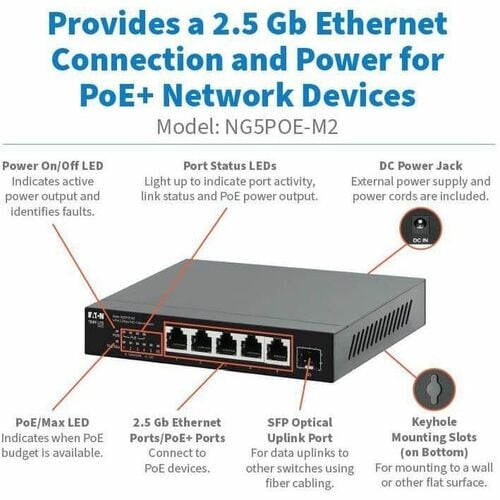

No configuration is required in setting up the unmanaged NG5POE-M2, so you can have your 2.5 Gbps network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The NG5POE-M2 supports MAC address auto-learning and auto-aging for efficient routing.

• Optimize the performance of business networks with 10 Gigabit Ethernet connectivity

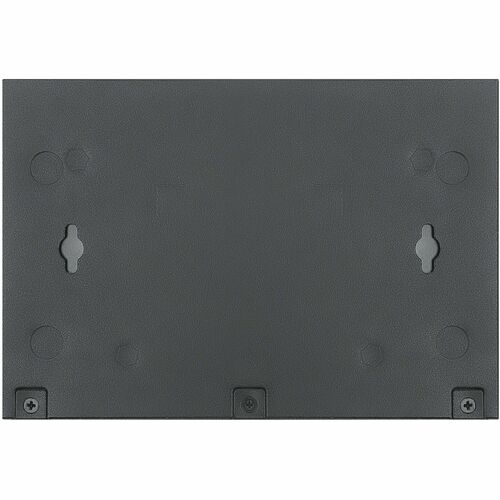

• With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
• Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
• The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
• Quickly and easily set up a wired network with 6 networking ports
• Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 6 ports
• Cascade to other network devices through the uplink port to expand your local area network
