About the product
The 5700 Series low energy operator is a reliable ADA solution comprising of the Norton Rixson heavy-duty 1600 Series door closer. The use of a hydraulic closer ensures quiet, consistently smooth operation is ideal in applications where doors are typically operated manually but can also be activated via door switches for automatic operation. The 5700 Series offers basic automated door functions and is designed for quick set-up, making it easy to specify and install.

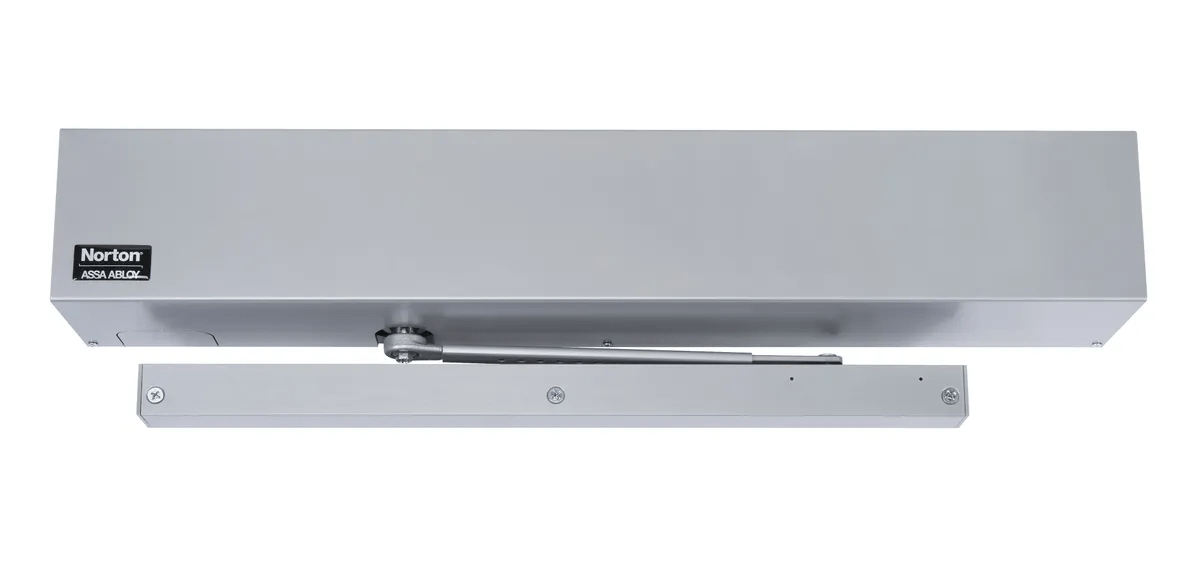

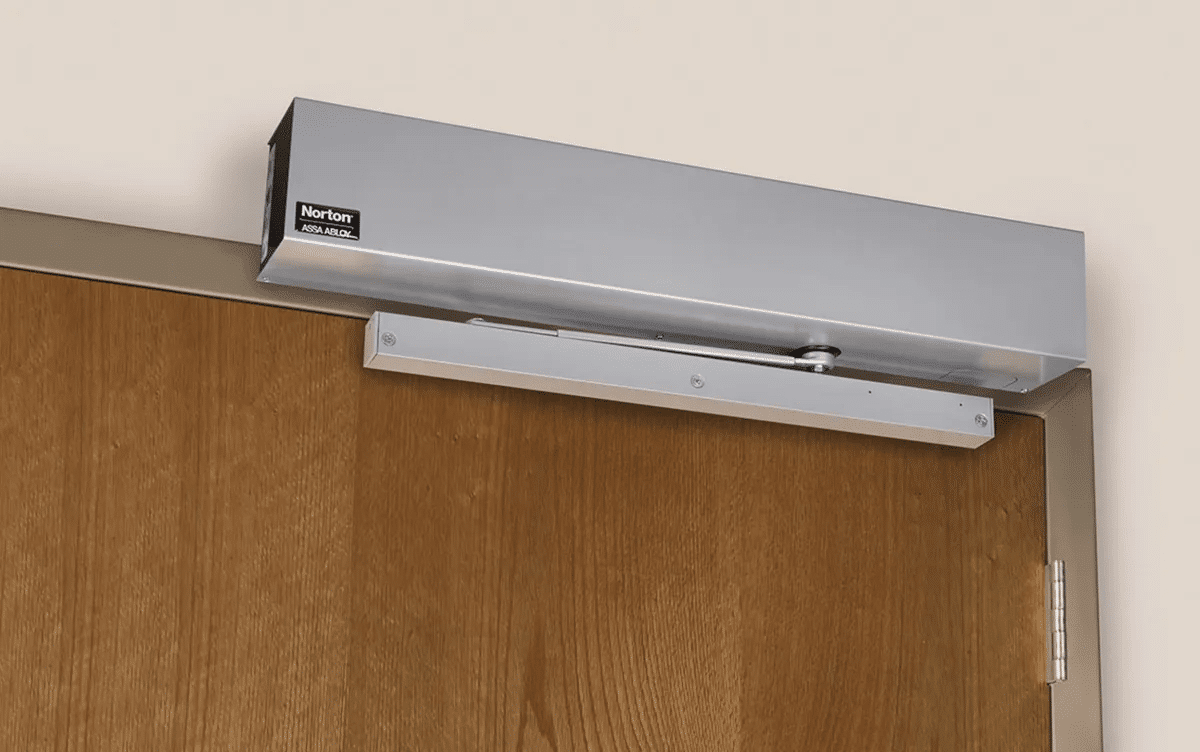

Norton 5710 Door Opener Operator, Pull Side, Rigid Arm and Slide Track, Aluminium Features:
- Non-handed
- Pull side mounting
- For use on interior and exterior doors with medium traffic
- Comprises Norton Rixson 1601 adjustable mechanical door closer
- Compatible with door switches, wave-to-open switches, and radio frequency (RF) devices
- Powers and coordinates function of electric strikes and other accessories
- Onboard power supply: 24VDC (1.1A)
- Maximum door weight: 250 lbs.
- Minimum door width: single (29""), double (30"")
- Door width: 28""-48
Norton 5710 Door Opener Operator, Pull Side, Rigid Arm and Slide Track, Aluminium Benefits:
- Basic features simplify product choice and setup
- Heavy-duty closer provide long life of the consistent operation
- Mechanical closer prevents the door from slamming and allows smooth manual operation when power is off
- Adjustable closer spring meets code requirements for multiple door sizes and weights
- Multiple valves provide enhanced control from opening to close
- Easy maintenance using an on/off switch
- Reduced germ transmission and increased ease of use with activation through wave-to-open switches and radio frequency (RF) devices
- Kits provide easy stocking and ordering for complete automated door solutions, from operator to accessories
Norton 5710 Door Opener Operator, Pull Side, Rigid Arm and Slide Track, Aluminum Specifications:
- Traffic Rating: Moderate Traffic
- Warranty: 2-year limited warranty
Certifications
- ANSI/BHMA A156.19
- ANSI/BHMA A156.4
- Americans with Disabilities Act (ADA) Compliant
- Environmental Product Declaration (EPD)
- UL 10C positive pressure
- UL-cUL Fire-Rated Up to 3 Hours
Technical Specifications
The 5700 Series low energy operator is a reliable ADA solution comprising of the Norton Rixson heavy-duty 1600 Series door closer. The use of a hydraulic closer ensures quiet, consistently smooth operation is ideal in applications where doors are typically operated manually but can also be activated via door switches for automatic operation. The 5700 Series offers basic automated door functions and is designed for quick set-up, making it easy to specify and install.
Norton 5710 Door Opener Operator, Pull Side, Rigid Arm and Slide Track, Aluminium Features:
- Non-handed
- Pull side mounting
- For use on interior and exterior doors with medium traffic
- Comprises Norton Rixson 1601 adjustable mechanical door closer
- Compatible with door switches, wave-to-open switches, and radio frequency (RF) devices
- Powers and coordinates function of electric strikes and other accessories
- Onboard power supply: 24VDC (1.1A)
- Maximum door weight: 250 lbs.
- Minimum door width: single (29""), double (30"")
- Door width: 28""-48
Norton 5710 Door Opener Operator, Pull Side, Rigid Arm and Slide Track, Aluminium Benefits:
- Basic features simplify product choice and setup
- Heavy-duty closer provide long life of the consistent operation
- Mechanical closer prevents the door from slamming and allows smooth manual operation when power is off
- Adjustable closer spring meets code requirements for multiple door sizes and weights
- Multiple valves provide enhanced control from opening to close
- Easy maintenance using an on/off switch
- Reduced germ transmission and increased ease of use with activation through wave-to-open switches and radio frequency (RF) devices
- Kits provide easy stocking and ordering for complete automated door solutions, from operator to accessories
Norton 5710 Door Opener Operator, Pull Side, Rigid Arm and Slide Track, Aluminum Specifications:
- Traffic Rating: Moderate Traffic
- Warranty: 2-year limited warranty
Certifications
- ANSI/BHMA A156.19
- ANSI/BHMA A156.4
- Americans with Disabilities Act (ADA) Compliant
- Environmental Product Declaration (EPD)
- UL 10C positive pressure
- UL-cUL Fire-Rated Up to 3 Hours
