About the product

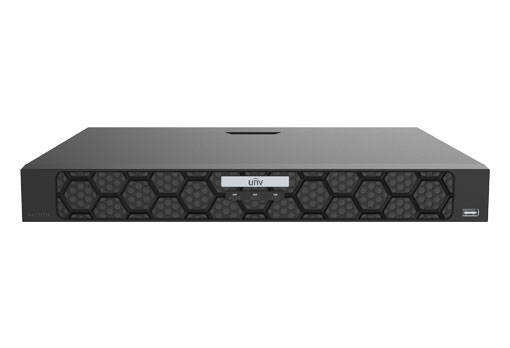

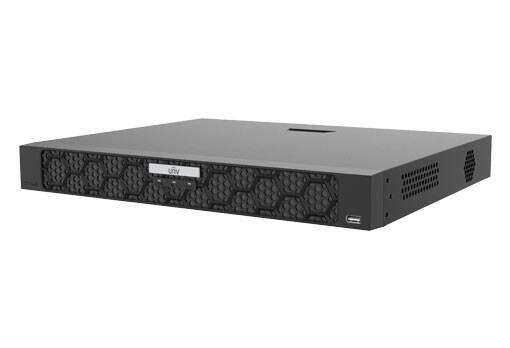

The Uniview NVR502-16B is a powerful, plug-and-play, 16-channel, 4K/16MP NVR for advanced camera control and high-resolution recording and playback. With 2 available SATA slots, the system can be expanded up to 32 TB (16 TB Purple-rated HDD per SATA slot) for uncompromising on-board surveillance storage. Using Ultra 265, H.265 and H.264 high-resolution decoding, the NVR502-16B supports high-resolution cameras and simultaneous streaming of four 4K channels (at 30 fps), and up to 16 simultaneous 1080p feeds (at 30 fps), and supports cameras with up to 16MP image resolution for accurate and powerful image capture and identification. With optional cloud connection for automatic updating, and a powerful host of AI detection features, the NVR itself can act as a powerful analytically-driven addition to your total security solutions; including VCA detection features like vehicle and license plate detection, intrusion/line cross detection, subjects entering/leaving designated areas, fire/smoke detection, Ultra Motion Detection, Traffic Monitoring—and more, including sophisticated and general alarm routines. Also supports automatic fisheye de-warping for 360 degree cameras, and ONVIF protocols for extended camera control.
NVR502-16B Specs and Features:
- 16-channel input
- Plug and play
- VCA by Camera: Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
- VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
- General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
- Network Interface 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
- USB Interface Front: 1 x USB2.0, Rear panel: 1x USB2.0, 1 x USB3.0
- RS485: 1
- Alarm In: 8-ch
- Alarm Out: 2-ch
- Video Output: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60,1024x768@60
- Two-way audio supported
- 2 SATA Bays, 16TB per disk max
- Power Supply: 100~240V AC
- Power Consumption: ? 20W (without HDD)
- Dimensions (W×D×H) 380mm × 315mm × 53mm (15.0""×12.4""×2.1"")
- Weight (without HDD): ? 2Kg (4.40lb)
- Certifications: CE, FCC, UL, RoHS, WEEE
- CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC: Part15 Subpart B
Technical Specifications
The Uniview NVR502-16B is a powerful, plug-and-play, 16-channel, 4K/16MP NVR for advanced camera control and high-resolution recording and playback. With 2 available SATA slots, the system can be expanded up to 32 TB (16 TB Purple-rated HDD per SATA slot) for uncompromising on-board surveillance storage. Using Ultra 265, H.265 and H.264 high-resolution decoding, the NVR502-16B supports high-resolution cameras and simultaneous streaming of four 4K channels (at 30 fps), and up to 16 simultaneous 1080p feeds (at 30 fps), and supports cameras with up to 16MP image resolution for accurate and powerful image capture and identification. With optional cloud connection for automatic updating, and a powerful host of AI detection features, the NVR itself can act as a powerful analytically-driven addition to your total security solutions; including VCA detection features like vehicle and license plate detection, intrusion/line cross detection, subjects entering/leaving designated areas, fire/smoke detection, Ultra Motion Detection, Traffic Monitoring—and more, including sophisticated and general alarm routines. Also supports automatic fisheye de-warping for 360 degree cameras, and ONVIF protocols for extended camera control.
NVR502-16B Specs and Features:
- 16-channel input
- Plug and play
- VCA by Camera: Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
- VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
- General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
- Network Interface 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
- USB Interface Front: 1 x USB2.0, Rear panel: 1x USB2.0, 1 x USB3.0
- RS485: 1
- Alarm In: 8-ch
- Alarm Out: 2-ch
- Video Output: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60,1024x768@60
- Two-way audio supported
- 2 SATA Bays, 16TB per disk max
- Power Supply: 100~240V AC
- Power Consumption: ? 20W (without HDD)
- Dimensions (W×D×H) 380mm × 315mm × 53mm (15.0""×12.4""×2.1"")
- Weight (without HDD): ? 2Kg (4.40lb)
- Certifications: CE, FCC, UL, RoHS, WEEE
- CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC: Part15 Subpart B
