About the product

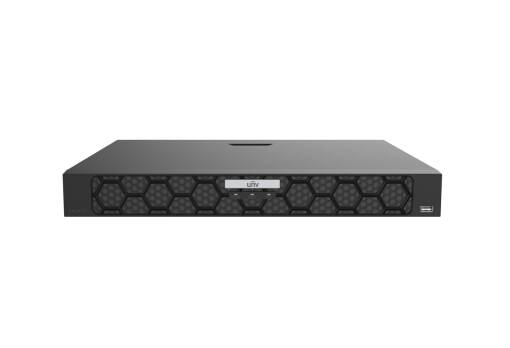

The Uniview NVR502 IQ-series NVR is a 16-channel PoE-powered NVR that supports cutting-edge, scalable camera installs, including specialty cameras like PTZ/fisheye cameras and LPR-equipped cameras, as well as ultra-HD cameras up to 16MP with a full suite of AI-powered analytics and smart features.
The IQ-series of Uniview NVRs support a wide variety of technologies like facial detection, vehicle detection, line crossing and zone intrusion, temperature detection, people counting, people flow and crowd density, traffic monitoring, and more. Intelligent Smart Intrusion Prevention (SIP) uses intelligent target classification and Ultra Motion Detection (UMD) to ensure ultra-precise automated security alerts while minimizing false alarms; all without dedicated operators or monitoring contracts. Target classification and ultra-fast multi-channel searching by target allows end-users to effortlessly identify and isolate footage without having to tediously scrub through hours of footage.
Target/vehicle classification supports up to 2 million unique face and vehicle IDs; up to 3 million SIP records, and up to 2 million assorted metadata records—ensuring long-term, highly accurate security, evidence, and alarming when identified targets or repeat offenders are detected. Rapid target acquisition reduces the need for dedicated security operators or 24/7 live monitoring, even on commerical or industrial sites.
Ultra H.265 compression supports up to 4K (3840 x 2160) playback from high-resolution cameras (up to 16MP without smart features, up to 12MP with smart features active) while minimizing file size to maximize storage space; and with 2 available SATA spaces with up to 16TB per drive, any install—from small businesses to sprawling multi-unit properties—can be easily scaled to size, or equipped with redundant storage for automatic recording backups.
Cloud upgrades and ANR (automatic network repair) technology ensures simple, one-click management of connected cameras for any skill level of end-user; reducing the need for repeat visits to clients for camera and network management issues. Two-way audio support allows for use with front-line security and active deterrence (with supported cameras). Supports a wide variety of cameras with ONVIF conformance (Profile S, G & T) as well as RTSP protocols for a total security solution for retrofit installs.
NVR502-16B-P16-IQ Specs and Features:
- Decoding Format: Ultra 265, H.265, H.264
- Decoding Capability:
- Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 16 x 720P@30
- Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30
- Audio Compression: G.711A, G.711U
- Incoming Bandwidth:
- Smart On: 160Mbps
- Smart Off: 320 Mbps
- Outgoing Bandwidth: 160Mbps
- Remote Users: 128
- Protocols: TCP/IP; P2P; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; NFS; RTSP; IPV6
- Browser Plug-in: Supported
- IP Video Input: 16-ch
- RCA Audio Input: 1-ch
- RCA Audio Output: 1-ch
- HDMI Output: 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
- VGA Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
- Liveview Display: 1/4/6/8/9/16
- Corridor Mode Screen: 3/4/5/7/9/10/12/16
- Two-way Audio: 1-ch, RCA (Using the audio input and output)
- FTP/Schedule/Event Snapshot: 4-ch snapshot, up to 4K resolution
- Recording Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
- Synchronous Playback in Local: 16-ch
- VCA Detection by IPC: Vehicle Detection; SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection (UMD); Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting (People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring
- Smart by NVR: Smart Intrusion Prevention (SIP); Ultra Motion Detection (UMD)
- VCA Search: Motor Vehicle Search; Non-Motor Vehicle Search; General Search; People Counting Report; Heat Map
- Smart by IPC: All channels (up to 8 images/s in total); Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
- Search by Image: Supported
- Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
- SIP by NVR: 4-ch
- UMD by NVR: 8-ch
- Capacity of Snapshot Records: 2 million records for vehicle snapshot; 3 million records for SIP; 2 million records for video metadata
- General Alarm: Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection
- Alert Alarm: IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal; Array Damaged; Array Degraded
- SATA: 2 SATA Interfaces
- Capacity: Up to 16TB for each HDD
- Redundant Storage: Supported
- Disk Array Type: RAID 1
- Network Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
- USB: Front panel: 1 x USB2.0; Rear panel: 1 x USB2.0, 1 x USB3.0
- RS485: 1
- RS232: N/A
- Alarm In: 8-ch
- Alarm Out: 2-ch
- Power Supply: AC 100~240V
- Power Switch: Supported
- PoE Interface: 16 RJ45 10M/100M self-adaptive Ethernet Interface
- Max Power: Max 30W for single port, Max 240W in total
- Supported Standard: IEEE 802.3at, IEEE 802.3af
- Working Temperature: -10°C ~ + 50°C (+14°F ~ +122°F)
- Working Humidity: ? 90% RH (non-condensing)
- Power Consumption (without HDD): ? 12W
- Weight (without HDD): ? 2.7Kg (6.0lb)
- Height: 1U
- Dimensions: 380mm × 322mm × 53mm (15.0’’×12.7’’×2.1’’)
- Certification: CE, FCC, UL, RoHS, WEEE
- CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC: Part15 Subpart B
Technical Specifications
The Uniview NVR502 IQ-series NVR is a 16-channel PoE-powered NVR that supports cutting-edge, scalable camera installs, including specialty cameras like PTZ/fisheye cameras and LPR-equipped cameras, as well as ultra-HD cameras up to 16MP with a full suite of AI-powered analytics and smart features.
The IQ-series of Uniview NVRs support a wide variety of technologies like facial detection, vehicle detection, line crossing and zone intrusion, temperature detection, people counting, people flow and crowd density, traffic monitoring, and more. Intelligent Smart Intrusion Prevention (SIP) uses intelligent target classification and Ultra Motion Detection (UMD) to ensure ultra-precise automated security alerts while minimizing false alarms; all without dedicated operators or monitoring contracts. Target classification and ultra-fast multi-channel searching by target allows end-users to effortlessly identify and isolate footage without having to tediously scrub through hours of footage.
Target/vehicle classification supports up to 2 million unique face and vehicle IDs; up to 3 million SIP records, and up to 2 million assorted metadata records—ensuring long-term, highly accurate security, evidence, and alarming when identified targets or repeat offenders are detected. Rapid target acquisition reduces the need for dedicated security operators or 24/7 live monitoring, even on commerical or industrial sites.
Ultra H.265 compression supports up to 4K (3840 x 2160) playback from high-resolution cameras (up to 16MP without smart features, up to 12MP with smart features active) while minimizing file size to maximize storage space; and with 2 available SATA spaces with up to 16TB per drive, any install—from small businesses to sprawling multi-unit properties—can be easily scaled to size, or equipped with redundant storage for automatic recording backups.
Cloud upgrades and ANR (automatic network repair) technology ensures simple, one-click management of connected cameras for any skill level of end-user; reducing the need for repeat visits to clients for camera and network management issues. Two-way audio support allows for use with front-line security and active deterrence (with supported cameras). Supports a wide variety of cameras with ONVIF conformance (Profile S, G & T) as well as RTSP protocols for a total security solution for retrofit installs.
NVR502-16B-P16-IQ Specs and Features:
- Decoding Format: Ultra 265, H.265, H.264
- Decoding Capability:
- Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 16 x 720P@30
- Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30
- Audio Compression: G.711A, G.711U
- Incoming Bandwidth:
- Smart On: 160Mbps
- Smart Off: 320 Mbps
- Outgoing Bandwidth: 160Mbps
- Remote Users: 128
- Protocols: TCP/IP; P2P; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; NFS; RTSP; IPV6
- Browser Plug-in: Supported
- IP Video Input: 16-ch
- RCA Audio Input: 1-ch
- RCA Audio Output: 1-ch
- HDMI Output: 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
- VGA Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
- Liveview Display: 1/4/6/8/9/16
- Corridor Mode Screen: 3/4/5/7/9/10/12/16
- Two-way Audio: 1-ch, RCA (Using the audio input and output)
- FTP/Schedule/Event Snapshot: 4-ch snapshot, up to 4K resolution
- Recording Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
- Synchronous Playback in Local: 16-ch
- VCA Detection by IPC: Vehicle Detection; SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection (UMD); Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting (People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring
- Smart by NVR: Smart Intrusion Prevention (SIP); Ultra Motion Detection (UMD)
- VCA Search: Motor Vehicle Search; Non-Motor Vehicle Search; General Search; People Counting Report; Heat Map
- Smart by IPC: All channels (up to 8 images/s in total); Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
- Search by Image: Supported
- Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
- SIP by NVR: 4-ch
- UMD by NVR: 8-ch
- Capacity of Snapshot Records: 2 million records for vehicle snapshot; 3 million records for SIP; 2 million records for video metadata
- General Alarm: Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection
- Alert Alarm: IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal; Array Damaged; Array Degraded
- SATA: 2 SATA Interfaces
- Capacity: Up to 16TB for each HDD
- Redundant Storage: Supported
- Disk Array Type: RAID 1
- Network Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
- USB: Front panel: 1 x USB2.0; Rear panel: 1 x USB2.0, 1 x USB3.0
- RS485: 1
- RS232: N/A
- Alarm In: 8-ch
- Alarm Out: 2-ch
- Power Supply: AC 100~240V
- Power Switch: Supported
- PoE Interface: 16 RJ45 10M/100M self-adaptive Ethernet Interface
- Max Power: Max 30W for single port, Max 240W in total
- Supported Standard: IEEE 802.3at, IEEE 802.3af
- Working Temperature: -10°C ~ + 50°C (+14°F ~ +122°F)
- Working Humidity: ? 90% RH (non-condensing)
- Power Consumption (without HDD): ? 12W
- Weight (without HDD): ? 2.7Kg (6.0lb)
- Height: 1U
- Dimensions: 380mm × 322mm × 53mm (15.0’’×12.7’’×2.1’’)
- Certification: CE, FCC, UL, RoHS, WEEE
- CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC: Part15 Subpart B
