About the product

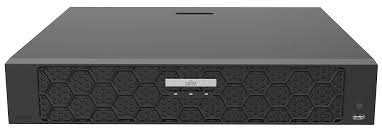

The Uniview 16-Channel 4K NVR 504-B-P series network video recorder is designed for medium-sized installs with high-resolution cameras (up to 16MP) and additional alarm input-output options for integration into larger alarm systems. Ideal for high-security medium-scale installs like dispensaries, cash offices, small businesses and more.
16-channel input with 16 independent, plug-and-play PoE network interfaces. Supports ONVIF (Profile S,G,T) and RTSP protocols for retrofit installs.
NVR504-16B-P16 Specs and Features
- Decoding Format: Ultra 265, H.265, H.264
- Decoding Capability:
- Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30
- H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 720P@30
- Audio Compression: G.711A, G.711U
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 160 Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4
- IP Video Input: 16-ch
- RCA Audio Input 1-ch
- HDMI Output: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- RCA Audio Output: 1-ch
- Liveview Display: 1/4/6/8/9/16
- Corridor Mode Screen: 3/4/5/7/9/10/12/16
- Two-way Audio: 1-ch, RCA (Using the audio input and output)
- FTP/Schedule/Event Snapshot: 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
- Recording Resolution: 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
- Synchronous Playback in Local: 16-ch
- VCA Detection by IPC: Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
- VCA Search: Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
- Smart by IPC: All channels (up to 8 images/s in total)Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
- General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
- SATA: 4 SATA Interfaces
- Capacity: Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
- Disk Group: Supported
- Redundant Storage: Supported
- Disk Array Type: RAID 1, 5
- Network Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
- USB
- Front panel: 1 × USB2.0
- Rear panel: 1 × USB3.0
- RS485: 1
- Alarm In: 16-ch
- Alarm Out: 4-ch
- Power Supply: AC 100 to 240 V
- Power Switch: Supported
- PoE Interface: 16 RJ45 10 M/100 M self-adaptive Ethernet Interface
- Max Power: Max 30 W for single port, Max 150 W in total
- Supported Standard: IEEE 802.3at, IEEE 802.3af
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: ? 90% RH (non-condensing)
- Power Consumption (without HDD): ? 20W
- Weight (without HDD): ? 4Kg (8.82lb)
- Dimensions: 400mm × 368mm × 74mm (15.7""×14.5""×2.9"")
- Certification: CE; FCC; UL; RoHS; WEEE
- CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC: Part15 Subpart B
Technical Specifications
The Uniview 16-Channel 4K NVR 504-B-P series network video recorder is designed for medium-sized installs with high-resolution cameras (up to 16MP) and additional alarm input-output options for integration into larger alarm systems. Ideal for high-security medium-scale installs like dispensaries, cash offices, small businesses and more.
16-channel input with 16 independent, plug-and-play PoE network interfaces. Supports ONVIF (Profile S,G,T) and RTSP protocols for retrofit installs.
NVR504-16B-P16 Specs and Features
- Decoding Format: Ultra 265, H.265, H.264
- Decoding Capability:
- Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30
- H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 720P@30
- Audio Compression: G.711A, G.711U
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 160 Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4
- IP Video Input: 16-ch
- RCA Audio Input 1-ch
- HDMI Output: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- RCA Audio Output: 1-ch
- Liveview Display: 1/4/6/8/9/16
- Corridor Mode Screen: 3/4/5/7/9/10/12/16
- Two-way Audio: 1-ch, RCA (Using the audio input and output)
- FTP/Schedule/Event Snapshot: 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
- Recording Resolution: 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
- Synchronous Playback in Local: 16-ch
- VCA Detection by IPC: Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
- VCA Search: Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
- Smart by IPC: All channels (up to 8 images/s in total)Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
- General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
- SATA: 4 SATA Interfaces
- Capacity: Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
- Disk Group: Supported
- Redundant Storage: Supported
- Disk Array Type: RAID 1, 5
- Network Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
- USB
- Front panel: 1 × USB2.0
- Rear panel: 1 × USB3.0
- RS485: 1
- Alarm In: 16-ch
- Alarm Out: 4-ch
- Power Supply: AC 100 to 240 V
- Power Switch: Supported
- PoE Interface: 16 RJ45 10 M/100 M self-adaptive Ethernet Interface
- Max Power: Max 30 W for single port, Max 150 W in total
- Supported Standard: IEEE 802.3at, IEEE 802.3af
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: ? 90% RH (non-condensing)
- Power Consumption (without HDD): ? 20W
- Weight (without HDD): ? 4Kg (8.82lb)
- Dimensions: 400mm × 368mm × 74mm (15.7""×14.5""×2.9"")
- Certification: CE; FCC; UL; RoHS; WEEE
- CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC: Part15 Subpart B
