About the product

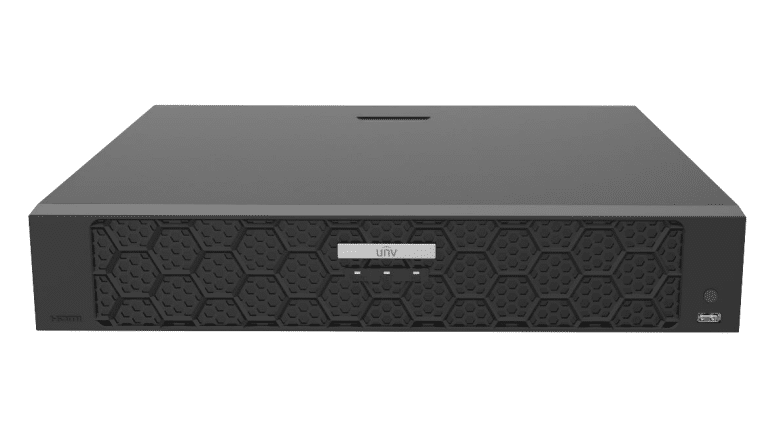

NVR504-32B-P16 Network Video Recorder Features:
- Support Ultra 265/H.265/H.264 video formats
- 16/32-channel input
- Plug & Play with 16 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- VGA and HDMI independent output
- Up to 16 Megapixels resolution recording
- 4 SATA HDD, up to 10TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
NVR504-32B-P16 Network Video Recorder Specifications:
- Video/Audio Input
- IP Video Input: 32-ch
- Audio Input: 1-ch, RCA
- Network
- Incoming bandwidth 320Mbps
- Outgoing bandwidth 160Mbps
- Remote Users 128
- Protocols TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP,SMTP,RTSP,802.1x,IPV6
- Browser
- IE(IE10/11) for Windows
- Firefox (version 52.0 and above) for Windows
- Chrome(version 45 and above) for Windows
- Edge(version 79 and above) for Windows
- Video/Audio Output
- HDMI/VGA Output
- HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
- VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
- Recording Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Audio Output: 1-ch, RCA
- Two-way Audio: 1-ch, RCA(Using the audio input and output)
- Audio Compression: G.711A, G.711U
- Synchronous Playback 16-ch
- Liveview display 1/4/6/8/9/16/25/32
- Corridor Mode Screen 3/4/5/7/9/10/12/16/32
- HDMI/VGA Output
- Snapshot
- FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
- Decoding
- Decoding format Ultra 265/H.265/H.264
- Live view/Playback 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Capability Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
- Hard Disk
- SATA 4 SATA interfaces
- Capacity Up to 10TB for each disk
- Smart
- VCA Detection by Camera Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
- VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
- People Counting People Flow Counting, Crowd Density Monitoring
- Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata by Camera Total 8-ch
- General Alarm
- General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
- Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
- External Interface
- Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
- USB Interface Front: 1 x USB2.0, Rear panel: 1 x USB3.0
- RS232 NA
- RS485 1
- Alarm In 16-ch
- Alarm Out 4-ch
- PoE
- Interface 16 RJ45 10M/100M self-adaptive Ethernet Interface
- Max Power Max 30W for single port, Max 150W in total
- Supported Standard IEEE 802.3af/at
- General
- Power Supply 100~240V AC
- Power Consumption: ? 20W (without HDD)
- Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ? 90% RH (non-condensing)
- Dimensions (W×D×H) 400mm × 368mm × 74mm (15.7""×14.5""×2.9"")
- Weight (without HDD) ? 4Kg (8.82lb)
- Certification
- Certification CE, FCC, UL, RoHS, WEEE
- CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC Part15 Subpart B
Technical Specifications
NVR504-32B-P16 Network Video Recorder Features:
- Support Ultra 265/H.265/H.264 video formats
- 16/32-channel input
- Plug & Play with 16 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- VGA and HDMI independent output
- Up to 16 Megapixels resolution recording
- 4 SATA HDD, up to 10TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
NVR504-32B-P16 Network Video Recorder Specifications:
- Video/Audio Input
- IP Video Input: 32-ch
- Audio Input: 1-ch, RCA
- Network
- Incoming bandwidth 320Mbps
- Outgoing bandwidth 160Mbps
- Remote Users 128
- Protocols TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP,SMTP,RTSP,802.1x,IPV6
- Browser
- IE(IE10/11) for Windows
- Firefox (version 52.0 and above) for Windows
- Chrome(version 45 and above) for Windows
- Edge(version 79 and above) for Windows
- Video/Audio Output
- HDMI/VGA Output
- HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
- VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
- Recording Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Audio Output: 1-ch, RCA
- Two-way Audio: 1-ch, RCA(Using the audio input and output)
- Audio Compression: G.711A, G.711U
- Synchronous Playback 16-ch
- Liveview display 1/4/6/8/9/16/25/32
- Corridor Mode Screen 3/4/5/7/9/10/12/16/32
- HDMI/VGA Output
- Snapshot
- FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
- Decoding
- Decoding format Ultra 265/H.265/H.264
- Live view/Playback 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Capability Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
- Hard Disk
- SATA 4 SATA interfaces
- Capacity Up to 10TB for each disk
- Smart
- VCA Detection by Camera Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
- VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
- People Counting People Flow Counting, Crowd Density Monitoring
- Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata by Camera Total 8-ch
- General Alarm
- General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
- Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
- External Interface
- Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
- USB Interface Front: 1 x USB2.0, Rear panel: 1 x USB3.0
- RS232 NA
- RS485 1
- Alarm In 16-ch
- Alarm Out 4-ch
- PoE
- Interface 16 RJ45 10M/100M self-adaptive Ethernet Interface
- Max Power Max 30W for single port, Max 150W in total
- Supported Standard IEEE 802.3af/at
- General
- Power Supply 100~240V AC
- Power Consumption: ? 20W (without HDD)
- Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ? 90% RH (non-condensing)
- Dimensions (W×D×H) 400mm × 368mm × 74mm (15.7""×14.5""×2.9"")
- Weight (without HDD) ? 4Kg (8.82lb)
- Certification
- Certification CE, FCC, UL, RoHS, WEEE
- CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC Part15 Subpart B
