About the product

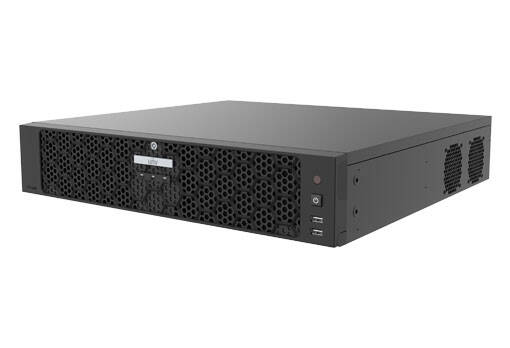

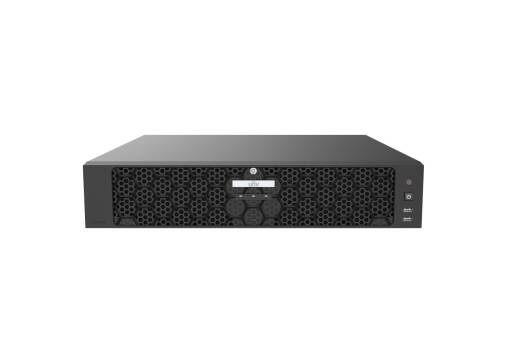

The Uniview 32-Channel NVR with Dual NIC, RAID, LPR and 8 Hot Plug SATA Bays, is a high-performance network video recorder designed for large-scale surveillance systems, supporting up to 32 channels and 12MP resolution. It features advanced video management capabilities, including real-time monitoring, playback, and intelligent analytics such as facial recognition and intrusion detection and license plate detection (LPR-equipped cameras required).
With dual HDMI and VGA outputs, it supports simultaneous display on multiple monitors, while its 8 SATA ports allow for up to 80TB of storage capacity. The Uniview 32-Channel NVR supports H.265+/H.265 compression, reducing bandwidth and storage requirements, and offers robust network connectivity with dual Gigabit Ethernet ports for failover and load balancing. Ideal for enterprise-level security applications, it ensures reliable, high-quality video recording and management.
The Uniview 32-Channel NVR also features dual NIC (Network Interface Cards), enabling network redundancy, load balancing, and failover to ensure uninterrupted surveillance operations. It supports RAID 0, 1, 5, 6, and 10 configurations, providing data protection and enhanced storage reliability. The device also includes 8 hot-plug SATA bays, allowing for easy drive installation and replacement without system downtime, with a total storage capacity of up to 80TB. License Plate Recognition (LPR) capabilities enhance security for high-security installs in places like off-limits sites and private commercial installs, making it suitable for applications requiring vehicle monitoring and identification.
NVR508-32E-R Specs and Features
- Decoding Format: Ultra 265,H.265,H.264
- Decoding Capability: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30
- Audio Compression: G.711A,G.711U
- RCA Audio Input: 1-ch
- RCA Audio Output: 2-ch
- Incoming Bandwidth:384Mbps
- Outgoing Bandwidth: 384Mbps
- Remote Users: 128
- Protocols: TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP,SMTP,NFS,RT SP,802.1x,IPV6
- HDMI Output:
- HDMI1, HDMI2: 4K(3840x2160)/60Hz,4K(3840x2160)/30Hz,1920x1080/60Hz,1920x1080/ 50Hz,1600x1200/60Hz,1280x1024/60Hz,1280x720/60Hz,1024x768/60Hz
- VGA1, VGA2: 1920x1080/60Hz,1920x1080/50Hz,1600x1200/60Hz,1280x1024/60Hz,1280 x720/60Hz,1024x768/60Hz
- Liveview Display: 1/4/6/8/9/16/25/32
- Corridor Mode Screen: 3/4/5/7/9/10/12/16/32
- FTP/Schedule/Event Snapshot: 16-ch snapshot,up to 1080P resolution
- Recording Resolution: 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
- Synchronous Playback in Local: 16-ch
- VCA Detection by IPC: Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
- VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, General Search, People Counting Report, Heat Map
- Smart by IPC: Total 16- ch (Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring)
- Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
- General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Video Loss Alarm Input, Audio Detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
- SATA: 8 SATA Interfaces
- Capacity: Up to 16TB for each disk
- Disk Group: Supported
- Disk Array Type: RAID 0,1,5,6,10
- Network Interface: 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
- USB
- Front panel: 2 x USB2.0,
- Rear panel: 2 x USB3.0
- RS485: 1
- RS232: 1
- Alarm In: 16-ch
- Alarm Out: 10-ch
- eSATA: 1
- Power Output: 12V
- Power Supply: AC 100/240V
- Working Temperature: -10°C ~ + 55°C (+14°F ~ +131°F)
- Working Humidity: ? 90% RH (non-condensing)
- Weight (without HDD): ? 6Kg (13.23lb)
- Dimensions: 442mm × 448mm × 93mm (17.4"" × 17.6"" × 3.7"")
- Certification: CE,FCC,UL,RoHS,WEEE
- CE: EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035
- FCC: Part15 Subpart B
Technical Specifications
The Uniview 32-Channel NVR with Dual NIC, RAID, LPR and 8 Hot Plug SATA Bays, is a high-performance network video recorder designed for large-scale surveillance systems, supporting up to 32 channels and 12MP resolution. It features advanced video management capabilities, including real-time monitoring, playback, and intelligent analytics such as facial recognition and intrusion detection and license plate detection (LPR-equipped cameras required).
With dual HDMI and VGA outputs, it supports simultaneous display on multiple monitors, while its 8 SATA ports allow for up to 80TB of storage capacity. The Uniview 32-Channel NVR supports H.265+/H.265 compression, reducing bandwidth and storage requirements, and offers robust network connectivity with dual Gigabit Ethernet ports for failover and load balancing. Ideal for enterprise-level security applications, it ensures reliable, high-quality video recording and management.
The Uniview 32-Channel NVR also features dual NIC (Network Interface Cards), enabling network redundancy, load balancing, and failover to ensure uninterrupted surveillance operations. It supports RAID 0, 1, 5, 6, and 10 configurations, providing data protection and enhanced storage reliability. The device also includes 8 hot-plug SATA bays, allowing for easy drive installation and replacement without system downtime, with a total storage capacity of up to 80TB. License Plate Recognition (LPR) capabilities enhance security for high-security installs in places like off-limits sites and private commercial installs, making it suitable for applications requiring vehicle monitoring and identification.
NVR508-32E-R Specs and Features
- Decoding Format: Ultra 265,H.265,H.264
- Decoding Capability: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30
- Audio Compression: G.711A,G.711U
- RCA Audio Input: 1-ch
- RCA Audio Output: 2-ch
- Incoming Bandwidth:384Mbps
- Outgoing Bandwidth: 384Mbps
- Remote Users: 128
- Protocols: TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP,SMTP,NFS,RT SP,802.1x,IPV6
- HDMI Output:
- HDMI1, HDMI2: 4K(3840x2160)/60Hz,4K(3840x2160)/30Hz,1920x1080/60Hz,1920x1080/ 50Hz,1600x1200/60Hz,1280x1024/60Hz,1280x720/60Hz,1024x768/60Hz
- VGA1, VGA2: 1920x1080/60Hz,1920x1080/50Hz,1600x1200/60Hz,1280x1024/60Hz,1280 x720/60Hz,1024x768/60Hz
- Liveview Display: 1/4/6/8/9/16/25/32
- Corridor Mode Screen: 3/4/5/7/9/10/12/16/32
- FTP/Schedule/Event Snapshot: 16-ch snapshot,up to 1080P resolution
- Recording Resolution: 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
- Synchronous Playback in Local: 16-ch
- VCA Detection by IPC: Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
- VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, General Search, People Counting Report, Heat Map
- Smart by IPC: Total 16- ch (Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring)
- Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
- General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Video Loss Alarm Input, Audio Detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
- SATA: 8 SATA Interfaces
- Capacity: Up to 16TB for each disk
- Disk Group: Supported
- Disk Array Type: RAID 0,1,5,6,10
- Network Interface: 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
- USB
- Front panel: 2 x USB2.0,
- Rear panel: 2 x USB3.0
- RS485: 1
- RS232: 1
- Alarm In: 16-ch
- Alarm Out: 10-ch
- eSATA: 1
- Power Output: 12V
- Power Supply: AC 100/240V
- Working Temperature: -10°C ~ + 55°C (+14°F ~ +131°F)
- Working Humidity: ? 90% RH (non-condensing)
- Weight (without HDD): ? 6Kg (13.23lb)
- Dimensions: 442mm × 448mm × 93mm (17.4"" × 17.6"" × 3.7"")
- Certification: CE,FCC,UL,RoHS,WEEE
- CE: EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035
- FCC: Part15 Subpart B
