About the product

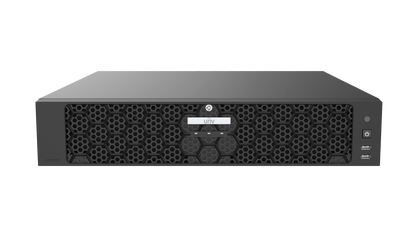

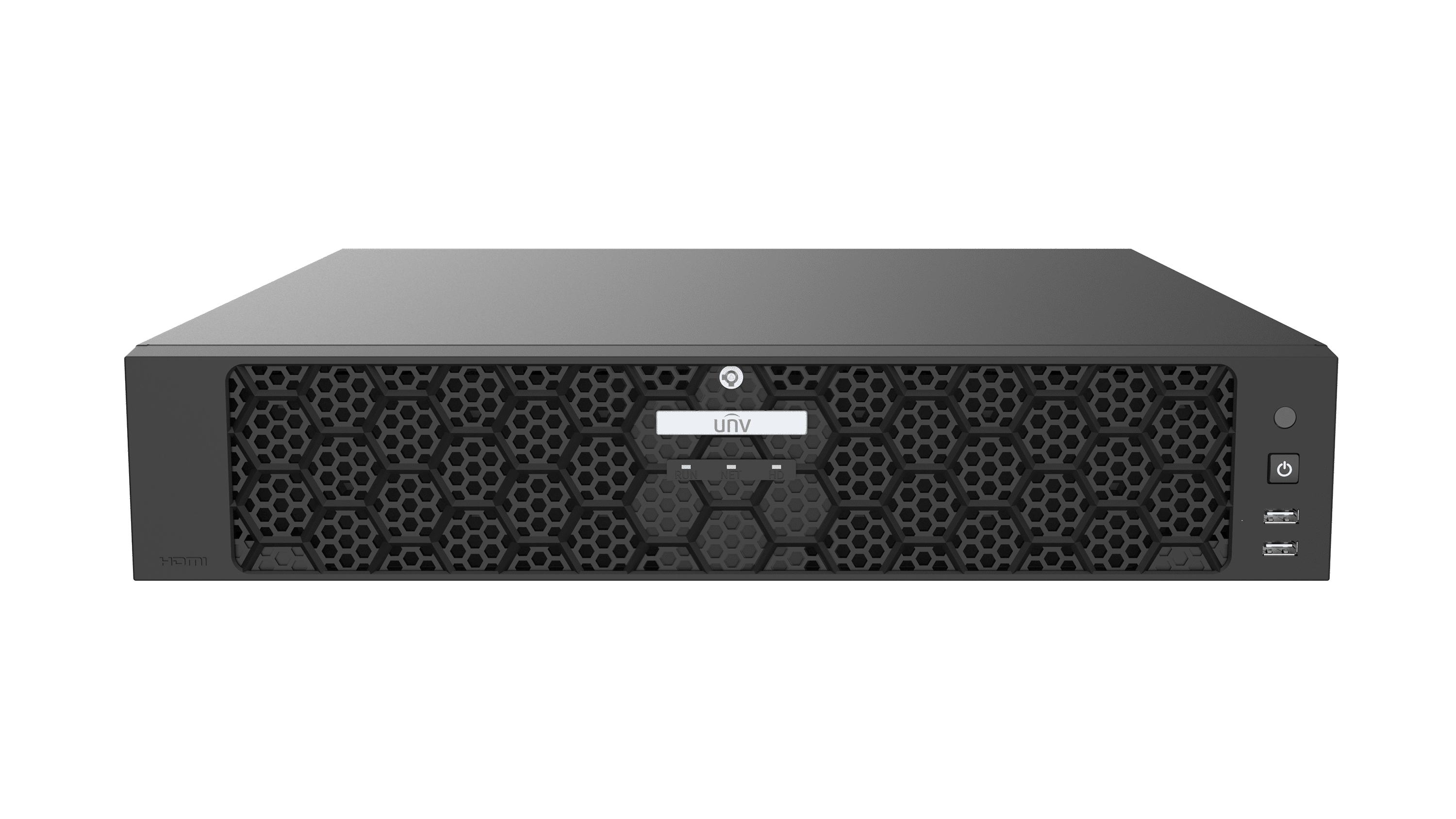

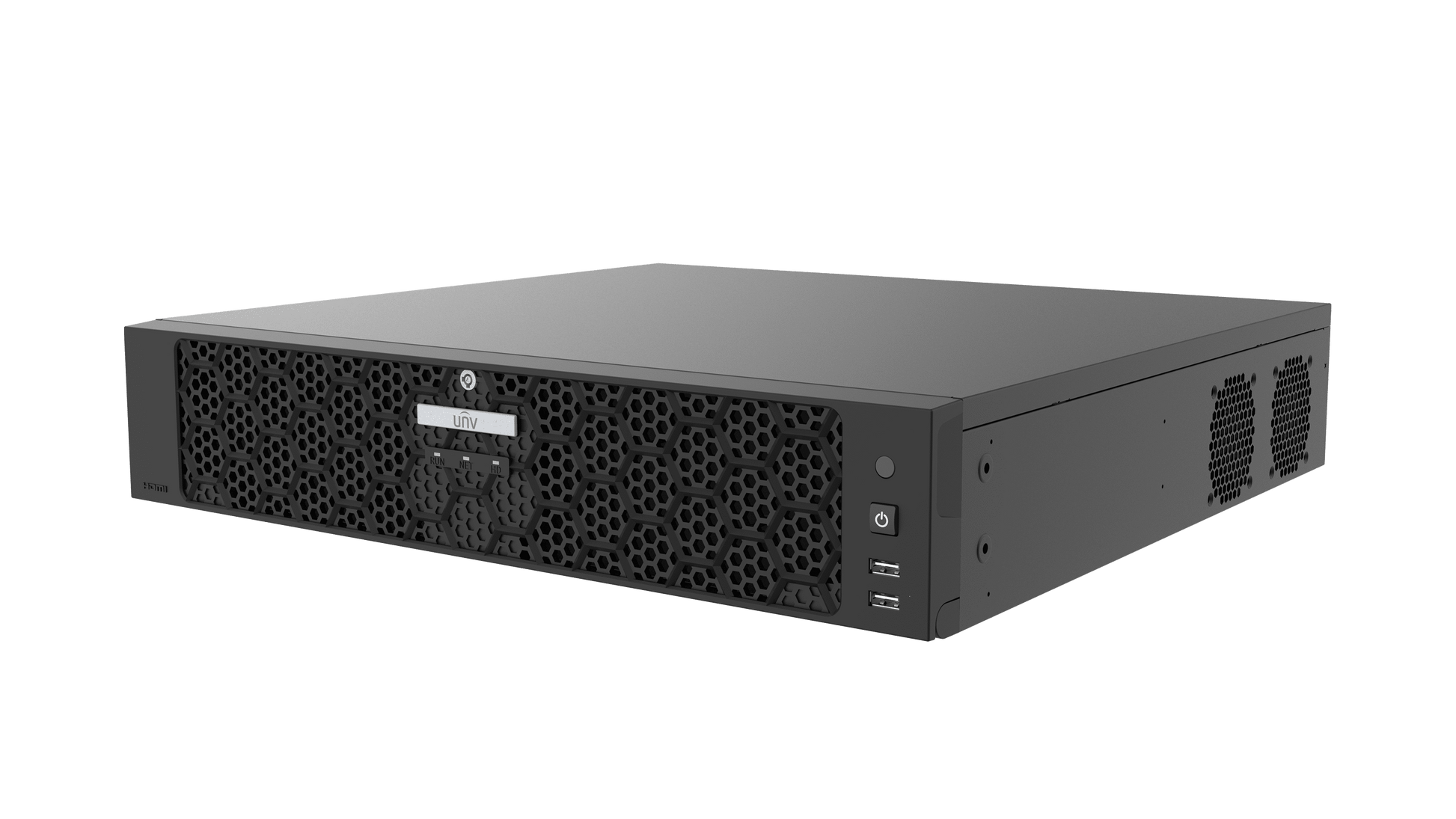

The Uniview 64-Channel IQ-Series NVR is designed for large-scale installs with cutting edge, high-resolution cameras and advanced smart features. Supports up to 64 channels, and supports cameras with up to 32MP—supporting top-of-the-line optics while future-proofing installs for later additions.
Supports 2x HDMI and 2x VGA outputs—either simultaneous or independent—and decoding of up to 2x channels @ 32MP/30FPS, or a maximum of 64x channels @ 720p/30FPS. Vehicle/face database catalogues and identifies repeat visitors, with up to 2 million vehicle snapshots, and up to 3 million face snapshots. Ideal for large installs like grocery stores, large retail outlets, offices, schools, and more.
When paired with select Uniview cameras, users can enable advanced smart features and analytics, like Facial Recognition, Temperature Detection, People and Vehicle Detection and Sorting, Crowd Metadata, and more. Additional features like Ultra Motion Detection prevent unauthorized access from human/vehicle targets, while automatically ignoring debris and moving objects.
Supports cloud upgrade, N+1 hot spare, 12V power output, generic ONVIF (Profile S, Profile G, Profile T ) and RTSP conformance. 16x alarm-in and 10x alarm-out enables additional linkage into security systems for advanced alarming in sensitive environments.
NVR508-64E-R-IQ Specs and Features
- Decoding Format: Ultra 265, H.265, H.264
- Decoding Capability:
- Smart Off: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30
- Smart On: 1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30
- Audio Compression: G.711A, G.711U
- Incoming Bandwidth:
- Smart Off: 384Mbps
- Smart On: 200Mbps
- Outgoing Bandwidth:
- Smart Off: 384Mbps
- Smart On: 200Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
- IP Video Input: 64-channel
- RCA Audio Input: 1-channel
- HDMI Output: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output: 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- RCA Audio Output: 2-ch
- Liveview Display:
- HDMI1 and VGA1: 1/4/6/8/9/16/25/36/64
- HDMI2 and VGA2: 1/4/6/8/9/16
- Corridor Mode Screen:
- HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32
- HDMI2 and VGA2: 3/4/5/7/9/10/12/16
- Two-way Audio: 1-ch, RCA (Using the audio input and output, hardware not included)
- FTP/Schedule/Event Snapshot: 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
- Recording Resolution: 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
- VCA Detection by IPC: Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
- Smart by NVR: Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
- VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch
- Smart by IPC: All channels (up to 16 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
- Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
- SIP by NVR: 8-ch
- UMD by NVR: 16-ch
- Capacity of Snapshot Records: 3 millions records for face snapshot, 2 millions records for vehicle snapshot, 2 millions records for SIP, 2 millions records for video Metadata
- General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded
- SATA: 8 SATA Interfaces
- Capacity: Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
- Disk Group: Supported
- Redundant Storage: Supported
- Disk Array Type: RAID 0, 1, 5, 6, 10
- Hot Swap: Supported
- Network Interface: 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
- USB:
- Front panel: 2 × USB2.0
- Rear panel: 2 × USB3.0
- RS485: 1x
- RS232: 1x
- Alarm In: 16-ch
- Alarm Out: 10-ch
- eSATA: 1x
- Power Output: 12 V
- Power Supply: AC 100~240V
- Redundant Power Supply: Supported
- Working Temperature: -10°C to 50°C (14°F to 122°F)
- Working Humidity: ? 90% RH (non-condensing)
- Power Consumption (without HDD): ? 35W
- Weight (without HDD): ? 6.5Kg (14.3lb)
- Height: 2U
- Dimensions: 443mm × 448mm × 93mm (17.4’’×17.6’’×3.7’’)
- Certification: CE; FCC; UL; RoHS; WEEE
- CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC: Part15 Subpart B
Technical Specifications
The Uniview 64-Channel IQ-Series NVR is designed for large-scale installs with cutting edge, high-resolution cameras and advanced smart features. Supports up to 64 channels, and supports cameras with up to 32MP—supporting top-of-the-line optics while future-proofing installs for later additions.
Supports 2x HDMI and 2x VGA outputs—either simultaneous or independent—and decoding of up to 2x channels @ 32MP/30FPS, or a maximum of 64x channels @ 720p/30FPS. Vehicle/face database catalogues and identifies repeat visitors, with up to 2 million vehicle snapshots, and up to 3 million face snapshots. Ideal for large installs like grocery stores, large retail outlets, offices, schools, and more.
When paired with select Uniview cameras, users can enable advanced smart features and analytics, like Facial Recognition, Temperature Detection, People and Vehicle Detection and Sorting, Crowd Metadata, and more. Additional features like Ultra Motion Detection prevent unauthorized access from human/vehicle targets, while automatically ignoring debris and moving objects.
Supports cloud upgrade, N+1 hot spare, 12V power output, generic ONVIF (Profile S, Profile G, Profile T ) and RTSP conformance. 16x alarm-in and 10x alarm-out enables additional linkage into security systems for advanced alarming in sensitive environments.
NVR508-64E-R-IQ Specs and Features
- Decoding Format: Ultra 265, H.265, H.264
- Decoding Capability:
- Smart Off: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30
- Smart On: 1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30
- Audio Compression: G.711A, G.711U
- Incoming Bandwidth:
- Smart Off: 384Mbps
- Smart On: 200Mbps
- Outgoing Bandwidth:
- Smart Off: 384Mbps
- Smart On: 200Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
- IP Video Input: 64-channel
- RCA Audio Input: 1-channel
- HDMI Output: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output: 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- RCA Audio Output: 2-ch
- Liveview Display:
- HDMI1 and VGA1: 1/4/6/8/9/16/25/36/64
- HDMI2 and VGA2: 1/4/6/8/9/16
- Corridor Mode Screen:
- HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32
- HDMI2 and VGA2: 3/4/5/7/9/10/12/16
- Two-way Audio: 1-ch, RCA (Using the audio input and output, hardware not included)
- FTP/Schedule/Event Snapshot: 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
- Recording Resolution: 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
- VCA Detection by IPC: Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
- Smart by NVR: Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
- VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch
- Smart by IPC: All channels (up to 16 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
- Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
- SIP by NVR: 8-ch
- UMD by NVR: 16-ch
- Capacity of Snapshot Records: 3 millions records for face snapshot, 2 millions records for vehicle snapshot, 2 millions records for SIP, 2 millions records for video Metadata
- General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded
- SATA: 8 SATA Interfaces
- Capacity: Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
- Disk Group: Supported
- Redundant Storage: Supported
- Disk Array Type: RAID 0, 1, 5, 6, 10
- Hot Swap: Supported
- Network Interface: 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
- USB:
- Front panel: 2 × USB2.0
- Rear panel: 2 × USB3.0
- RS485: 1x
- RS232: 1x
- Alarm In: 16-ch
- Alarm Out: 10-ch
- eSATA: 1x
- Power Output: 12 V
- Power Supply: AC 100~240V
- Redundant Power Supply: Supported
- Working Temperature: -10°C to 50°C (14°F to 122°F)
- Working Humidity: ? 90% RH (non-condensing)
- Power Consumption (without HDD): ? 35W
- Weight (without HDD): ? 6.5Kg (14.3lb)
- Height: 2U
- Dimensions: 443mm × 448mm × 93mm (17.4’’×17.6’’×3.7’’)
- Certification: CE; FCC; UL; RoHS; WEEE
- CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC: Part15 Subpart B
