About the product

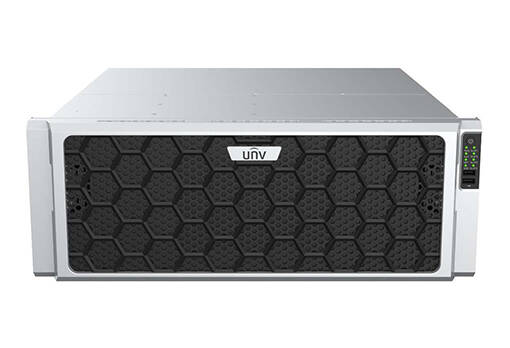

This Uniview 256 Channel NVR with 24x SATA Bays is designed for large-scale installs with demanding hardware requirements. High-speed miniSAS interfaces for rapid data transfers make the Uniview 256-channel NVR the ideal solution for 24/7 archival recording sites from hundreds of different devices.
Supports up to 256 individual IP devices, including generic ONVIF cameras in a variety of conformance profiles (including Profile S, G, C, Q, A and T), as well as hot swap functionality with RAID 0, 1, 5, 6, 10, 50 and 60 storage schemes for maximizing storage or for on-site redundancy. N+1 Hot Spare ensures recordings are automatically backed up to secondary drives in the event of a drive failure—ideal for high-security installs.
Supports 2-channel HDMI and 1-channel VGA out. HDMI supports up to 4K (3840 x 2160p) resolution output.
ANR technology and redundant power supply options ensure 100% uptime and admin alerting on network, power or storage failures. Supports major Uniview camera smart features, including facial detection, human/vehicles detection, temperature detection, people/traffic counting and metadata, and more.
NVR824-256R Specs and Features
- Decoding Format: Ultra 265, H.265, H.264
- Decoding Capability: 3 x 12MP@30, 5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1
- Audio Compression: G.711A, G.711U
- Incoming Bandwidth: 768Mbps
- Outgoing Bandwidth: 768Mbps
- Remote Users: 128
- Protocols: TCP/IP; P2P; UPnP; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; NFS; RTSP; 802.1x; IPV6
- IP Video: 256-ch
- RCA Audio Input: 1-ch
- HDMI Output: HDMI1/HDMI2:4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- VGA Output VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz
- RCA Audio Output: 1-ch
- Liveview Display VGA:1/4/6/8/9/16/25/36
- Liveview Display HDMI1/HDMI2:1/4/6/8/9/16/25/36/64
- Corridor Mode Screen: 3/4/5/7/9/10/12/16/32
- Two-way Audio: 1-ch, RCA (Using the audio input and output)
- FTP/Schedule/Event Snapshot: 128-ch snapshot, up to 4K resolution
- Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
- Synchronous Playback in Local: 16-ch
- VCA Detection by IPC: Face Detection; Vehicle Detection; SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection(UMD);Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring
- Smart by NVR: In the Smart Card datasheet
- VCA Search: Motor Vehicle Search; Non-Motor Vehicle Search; Human Body Search; General Search; People Counting Report
- Smart by IPC: All channels (up to 64 images/s in total) Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring Vehicle Picture Library Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
- SIP by NVR: In the Smart Card datasheet
- Capacity of Snapshot Records: 5 million records for face snapshot; 5 million records for vehicle snapshot; 2 million records for SIP
- General Alarm: Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection
- Alert Alarm: IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal; High CPU Temperature; High Motherboard Temperature; Array Damaged; Array Degraded
- SATA: 24 SATA interfaces
- Capacity: Up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature)
- Disk Array Type: RAID 0, 1, 5, 6, 10, 50, 60
- Hot Swap: Supported
- Network Interface: 4 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
- USB Front panel: 2 x USB2.0; Rear panel: 2 x USB3.0
- RS485: 1
- RS232: 1
- Alarm In: 24-ch
- Alarm Out: 8-ch
- eSATA: 1
- miniSAS: 2
- Extension board: 4
- Power Output: 12V
- Power Supply: AC 100 ? 240 V
- Power Switch: Supported
- Redundant Power Supply: Supported
- Working Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
- Working Humidity: ? 90% RH (non-condensing)
- Power Consumption (without HDD): ? 70W
- Weight (without HDD): ? 12.5Kg (27.56lb)
- Dimensions: 484.6mm × 533mm × 175.5mm (19.1""×21.0""×6.9"")
- Certification: CE, FCC, UL, RoHS, WEEE
- CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC: Part15 Subpart B
Technical Specifications
This Uniview 256 Channel NVR with 24x SATA Bays is designed for large-scale installs with demanding hardware requirements. High-speed miniSAS interfaces for rapid data transfers make the Uniview 256-channel NVR the ideal solution for 24/7 archival recording sites from hundreds of different devices.
Supports up to 256 individual IP devices, including generic ONVIF cameras in a variety of conformance profiles (including Profile S, G, C, Q, A and T), as well as hot swap functionality with RAID 0, 1, 5, 6, 10, 50 and 60 storage schemes for maximizing storage or for on-site redundancy. N+1 Hot Spare ensures recordings are automatically backed up to secondary drives in the event of a drive failure—ideal for high-security installs.
Supports 2-channel HDMI and 1-channel VGA out. HDMI supports up to 4K (3840 x 2160p) resolution output.
ANR technology and redundant power supply options ensure 100% uptime and admin alerting on network, power or storage failures. Supports major Uniview camera smart features, including facial detection, human/vehicles detection, temperature detection, people/traffic counting and metadata, and more.
NVR824-256R Specs and Features
- Decoding Format: Ultra 265, H.265, H.264
- Decoding Capability: 3 x 12MP@30, 5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1
- Audio Compression: G.711A, G.711U
- Incoming Bandwidth: 768Mbps
- Outgoing Bandwidth: 768Mbps
- Remote Users: 128
- Protocols: TCP/IP; P2P; UPnP; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; NFS; RTSP; 802.1x; IPV6
- IP Video: 256-ch
- RCA Audio Input: 1-ch
- HDMI Output: HDMI1/HDMI2:4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- VGA Output VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz
- RCA Audio Output: 1-ch
- Liveview Display VGA:1/4/6/8/9/16/25/36
- Liveview Display HDMI1/HDMI2:1/4/6/8/9/16/25/36/64
- Corridor Mode Screen: 3/4/5/7/9/10/12/16/32
- Two-way Audio: 1-ch, RCA (Using the audio input and output)
- FTP/Schedule/Event Snapshot: 128-ch snapshot, up to 4K resolution
- Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
- Synchronous Playback in Local: 16-ch
- VCA Detection by IPC: Face Detection; Vehicle Detection; SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection(UMD);Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring
- Smart by NVR: In the Smart Card datasheet
- VCA Search: Motor Vehicle Search; Non-Motor Vehicle Search; Human Body Search; General Search; People Counting Report
- Smart by IPC: All channels (up to 64 images/s in total) Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring Vehicle Picture Library Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
- SIP by NVR: In the Smart Card datasheet
- Capacity of Snapshot Records: 5 million records for face snapshot; 5 million records for vehicle snapshot; 2 million records for SIP
- General Alarm: Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection
- Alert Alarm: IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal; High CPU Temperature; High Motherboard Temperature; Array Damaged; Array Degraded
- SATA: 24 SATA interfaces
- Capacity: Up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature)
- Disk Array Type: RAID 0, 1, 5, 6, 10, 50, 60
- Hot Swap: Supported
- Network Interface: 4 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
- USB Front panel: 2 x USB2.0; Rear panel: 2 x USB3.0
- RS485: 1
- RS232: 1
- Alarm In: 24-ch
- Alarm Out: 8-ch
- eSATA: 1
- miniSAS: 2
- Extension board: 4
- Power Output: 12V
- Power Supply: AC 100 ? 240 V
- Power Switch: Supported
- Redundant Power Supply: Supported
- Working Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
- Working Humidity: ? 90% RH (non-condensing)
- Power Consumption (without HDD): ? 70W
- Weight (without HDD): ? 12.5Kg (27.56lb)
- Dimensions: 484.6mm × 533mm × 175.5mm (19.1""×21.0""×6.9"")
- Certification: CE, FCC, UL, RoHS, WEEE
- CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC: Part15 Subpart B
