About the product

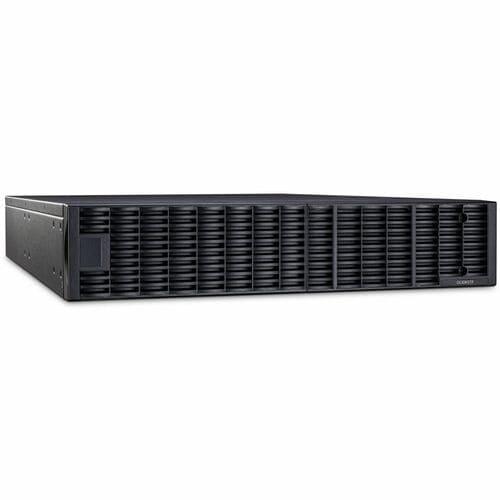

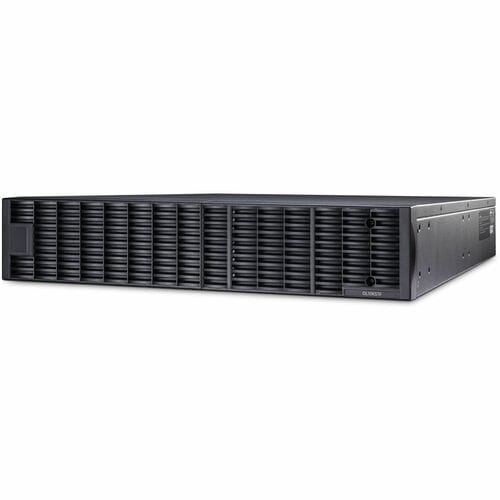

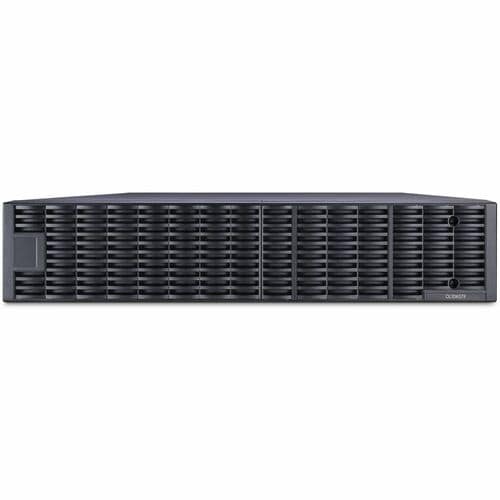

The CyberPower Smart App Online OL10KSTF rack/tower step-down isolation transformer converts 200 V to 240 V input voltage originating from utility power, a UPS, or a generator to 120 V output.

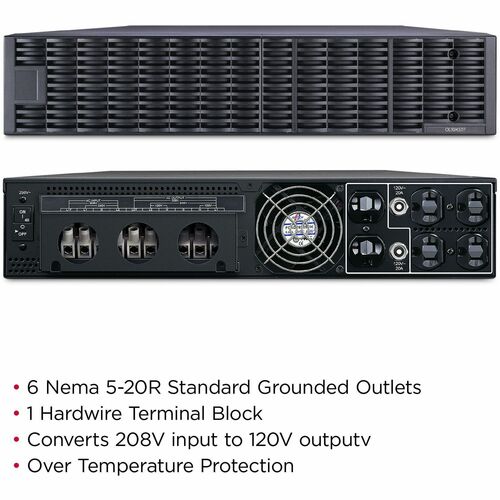

The OL10KSTF has a capacity of 10,000 VA / 10,000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel.
The included 3-foot power cable kit (6AWGHW3FT) connects the OL10KSTF to input power. Over temperature protection safeguards your OL10KSTF from damage if the internal heat exceeds safe operating parameters.
A Three-Year Warranty ensures that this step-down transformer has passed our highest quality standards in design, assembly, material or workmanship.
- Step-down transformer: 10,000 VA / 10,000 W
- Output: 120 V, 208 V, 50/60 Hz
- Power conversion: 208 V from utility, UPS, or generator to 120 V output
- Plug type & cord: 3 ft 6AWGHW3FT hardwire power cable kit

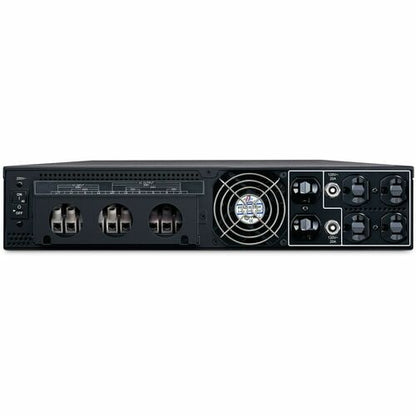

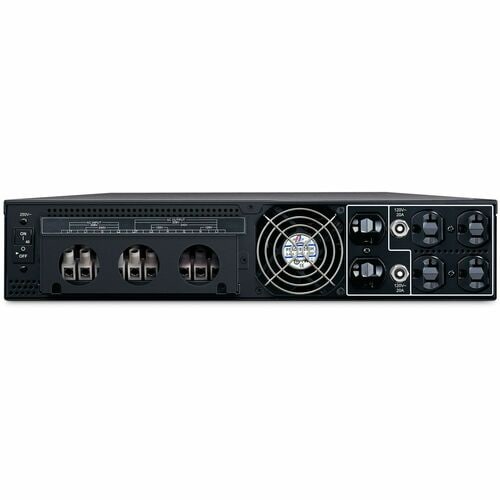

- Outlets:(6) NEMA 5-20R, (1) Hardwire Terminal Block

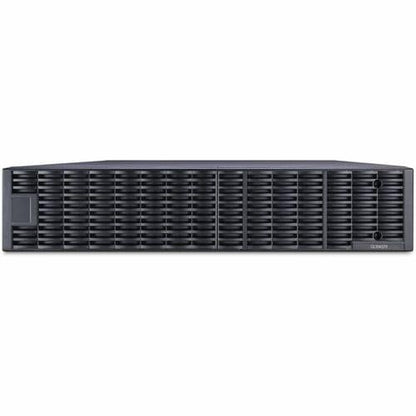

- Form factor: 2U Rack/Tower convertible
- Overload protection: Output circuit breakers
- Over temperature protection: Yes
- Warranty: Three year
Technical Specifications
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| 120 V AC | |
| Maximum Line Current | 50 A |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Power Rating | 10 kVA |
| Cord Length | 36" (914.40 mm) |
| Input Receptacle Type | Hardwired |
| Output Receptacle Detail | 1 x Terminal Block |
| 6 x NEMA 5-20R | |
| Output Receptacle Type | Terminal Block |
| NEMA 5-20R | |
| Physical Characteristics | |
| Weight (Approximate) | 119.70 lb (54295.01 g) |
| Form Factor | Tower/Rack Mountable |
| Rack Height | 2U |

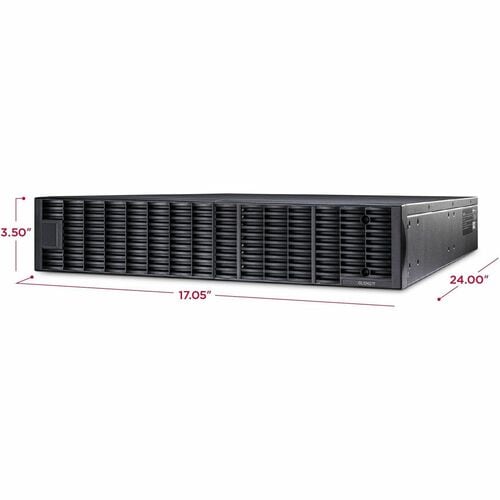

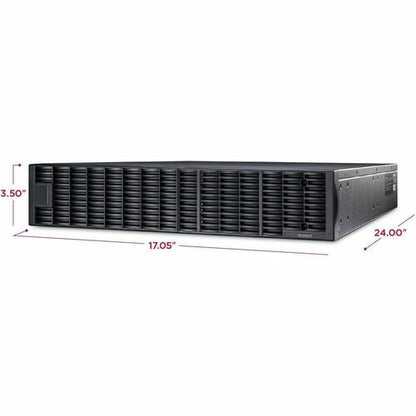

| Height | 3.50" (88.90 mm) |
| Width | 17.05" (433.07 mm) |
| Depth | 24" (609.60 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Isolation/Step-Down Transformer |
| Manufacturer Part Number | OL10KSTF |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OL10KSTF |
| Product Name | Smart App Online UPS Hardware OL10KSTF Isolation/Step-Down Transformer |
| Product Line | Smart App Online |
| Product Series | UPS Hardware |
| Brand Name | CyberPower |
