About the product
Prevent business interruptions and safeguard mission-critical enterprise network equipment.

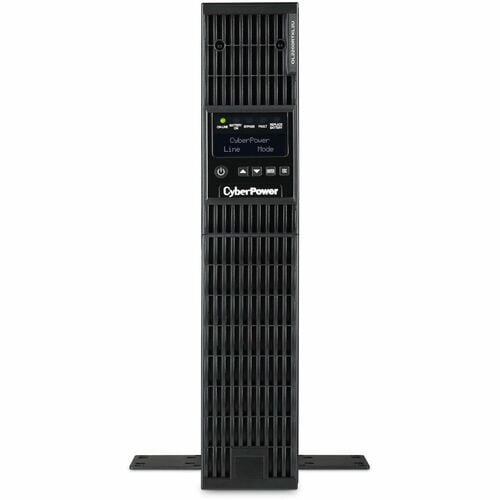

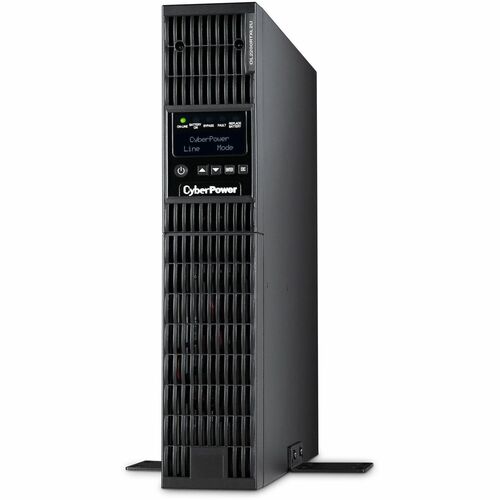

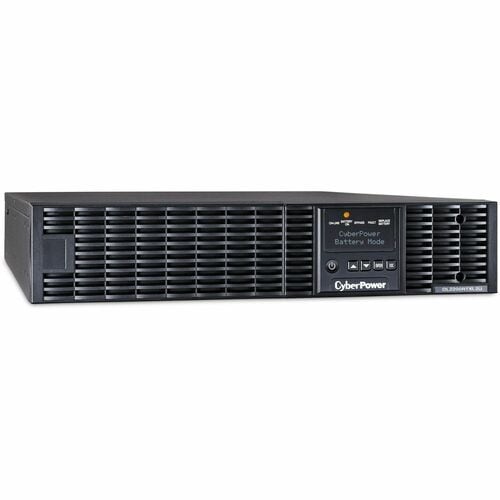

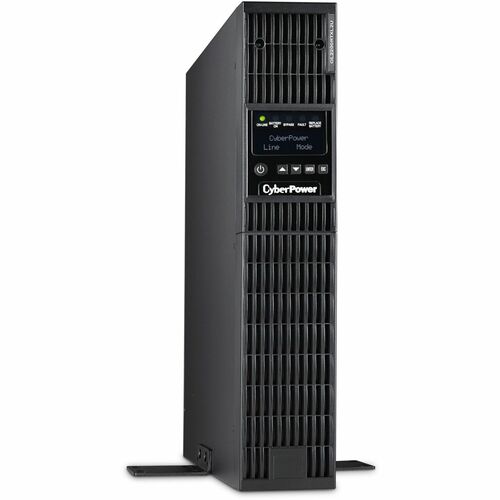

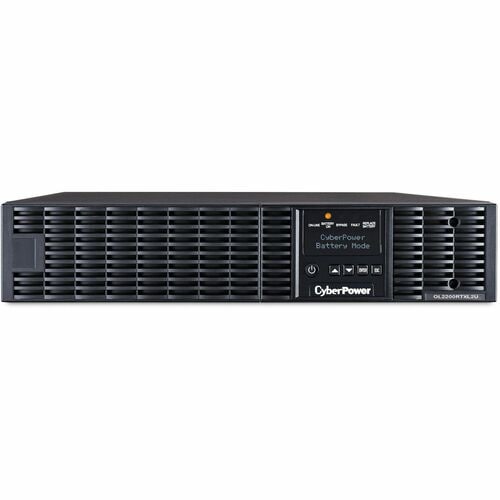

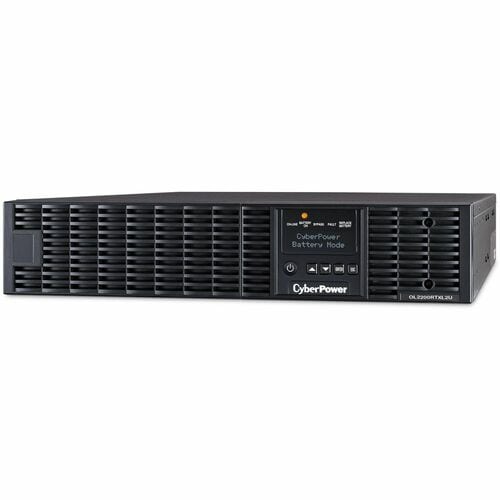

The CyberPower OL2200RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL2200RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
- Capacity: 2200 VA / 1800 W
- Power Factor (PF): 0.82
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 V ±2% (configurable)
- Plug type & cord: NEMA 5-20P, 10 ft. cord

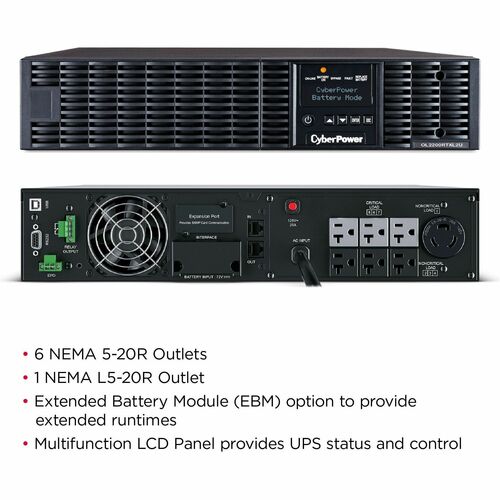

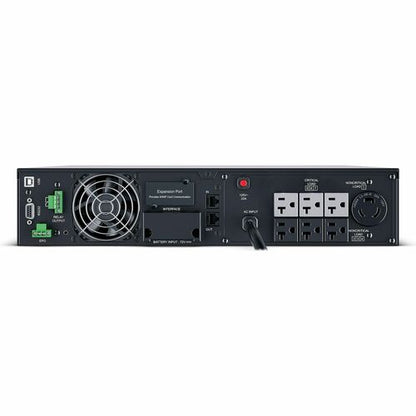

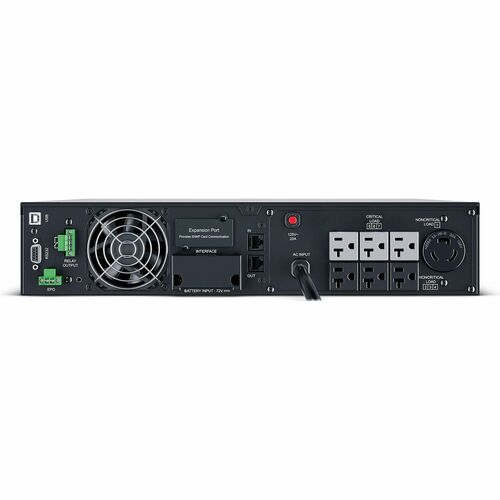

- Outlet types: 6 × NEMA 5-20R, 1 × L5-20R
- Monitoring & Management: USB, Serial, Network, Relay, EPO
- Data line surge protection: Telephone, Network
- Management software: PowerPanel® Business Edition
Technical Specifications
| Controls/Indicators | |
| Status Indicators |
|
| Interfaces/Ports | |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 541 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | UPS Fault |
| Battery Mode | |
| Low Battery | |
| Overload | |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 6 |

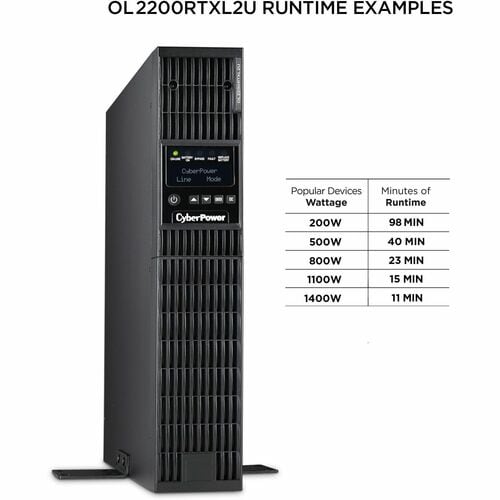

| Backup/Run Time (Half Load) | 20 Minute |
| Backup/Run Time (Full Load) | 6.50 Minute |
| Battery Characteristics | Maintenance-free/Sealed |
| Typical Battery Recharge Time | 4 Hour |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | OL2200RTXL2U |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OL2200RTXL2U |
| Product Name | Smart App Online OL2200RTXL2U 2200VA 100-125V Sine Wave LCD Rack/Tower UPS |
| Product Series | Smart App Online UPS |
| Brand Name | CyberPower |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerPanel® Business |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 68.20 lb (30935 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |

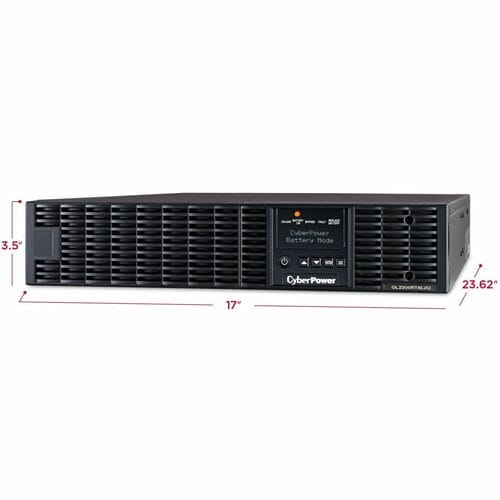

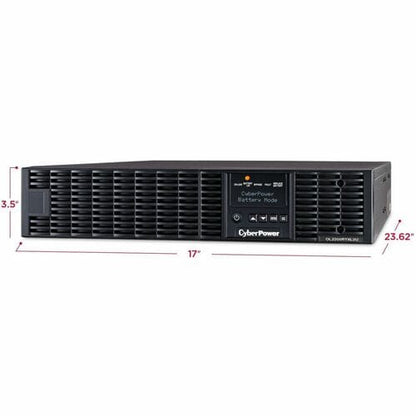

| Height | 3.50" (88.90 mm) |
| Width | 17" (431.80 mm) |
| Depth | 23.62" (599.95 mm) |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC |
| 120 V AC | |
| 115 V AC | |
| 125 V AC | |
| 110 V AC | |
| Surge Energy Rating | 1335 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 100 V AC - 125 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 2.20 kVA |
| Technical Information | |
| Application/Usage | VoIP Device |
| Storage Device | |
| Server | |
| PBX System | |
| Network Device | |
| Mission Critical Equipment | |
| Dataline Protection | RJ-11 |
| RJ-45 | |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA L5-20R |
| NEMA 5-20R | |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >95% |
| Transfer Time | 0 ns |
| Receptacle Detail | 1 x NEMA L5-20R |
| 6 x NEMA 5-20R |
