About the product

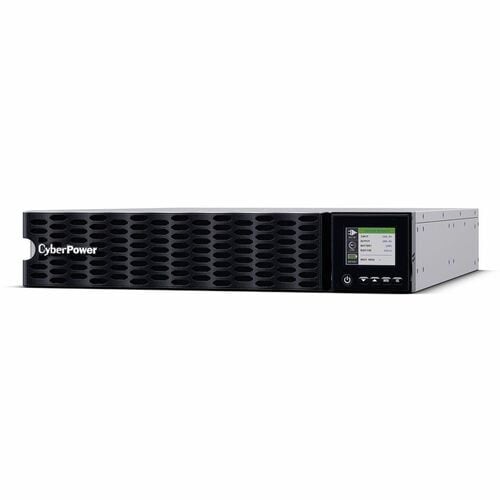

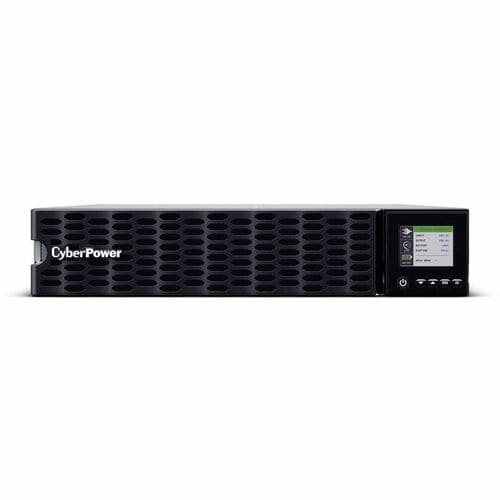

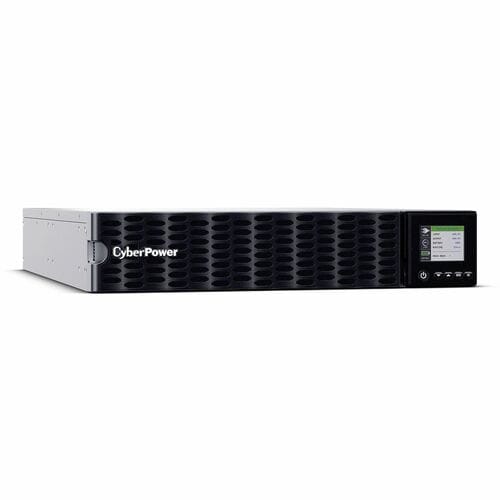

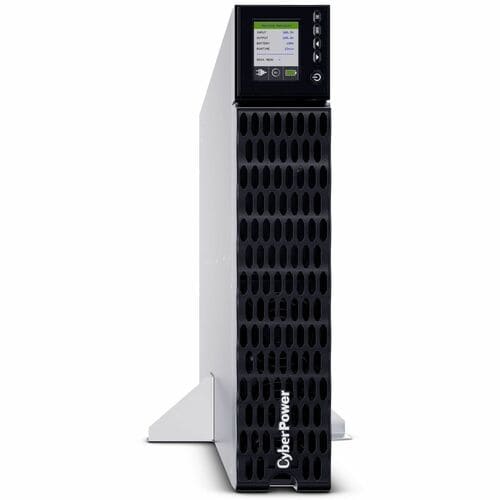

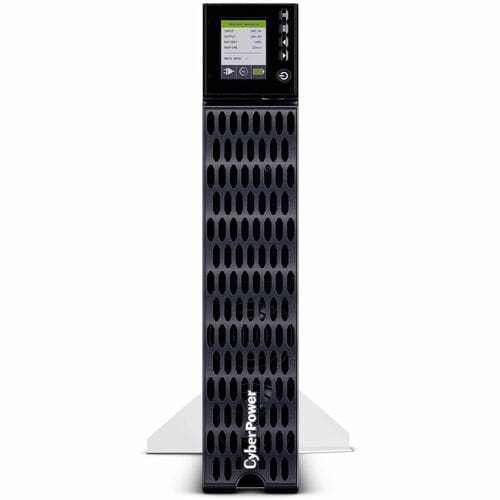

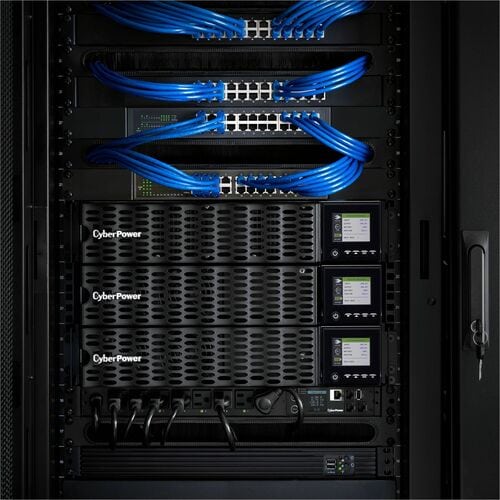

The CyberPower Smart App Online OL5KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models - giving you more room to grow. The OL5KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

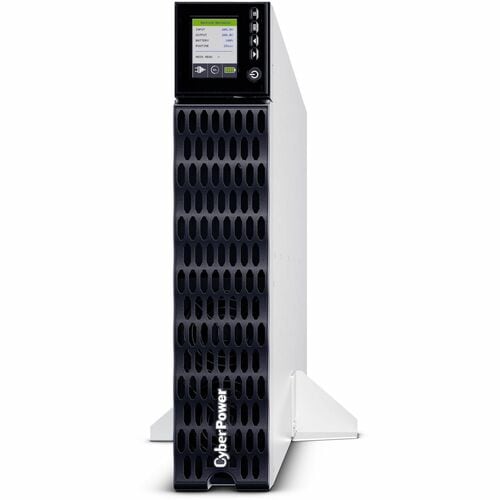

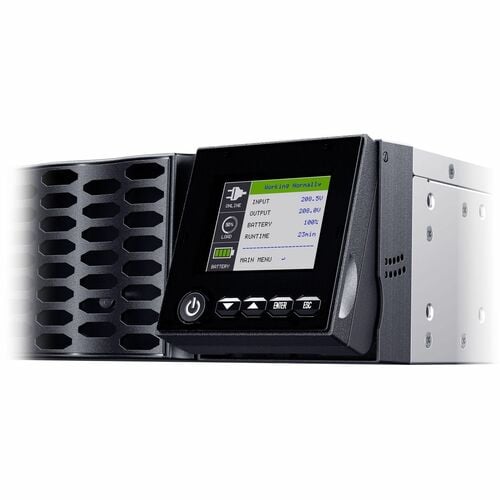

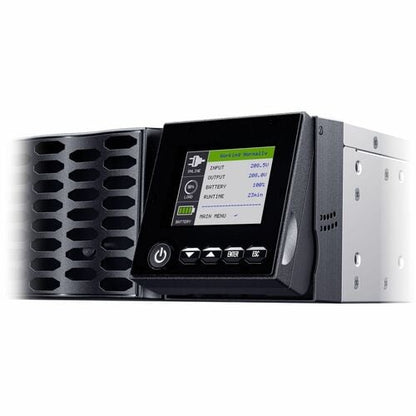

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL5KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.

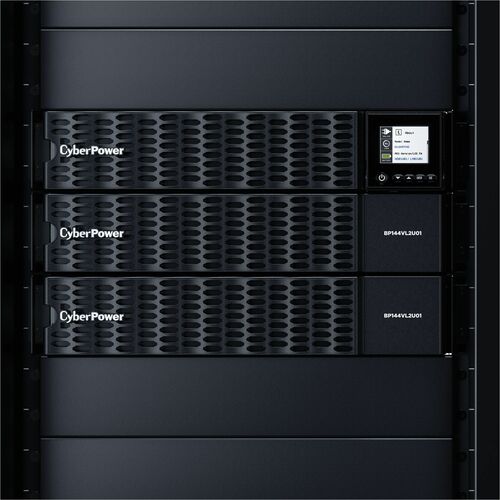

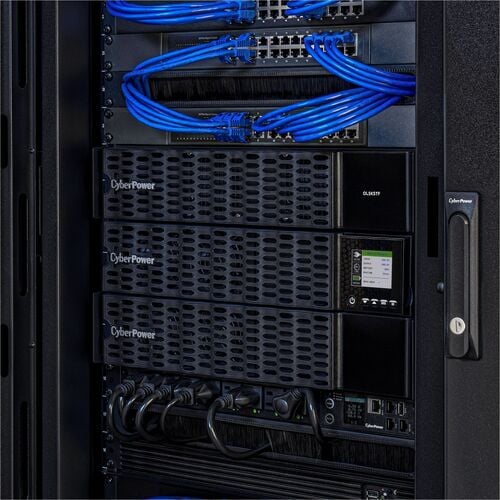

The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.
- Capacity: 5000 VA / 5000 W
- High Density: 2U Size
- Power Factor (PF): 1
- Topology: Double-conversion
- Waveform: Sine Wave
- Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
- Plug type & cord: Hardwire with NEMA L6-30P Power Cord Option

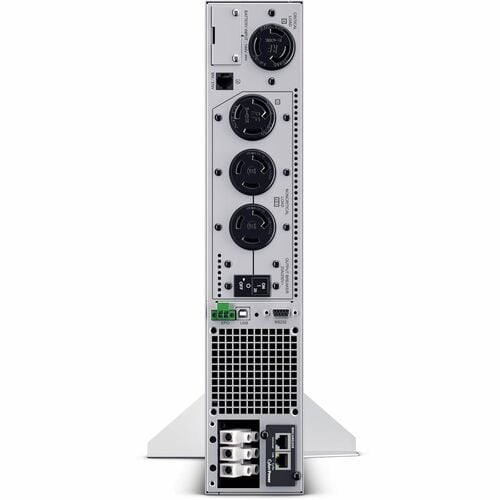

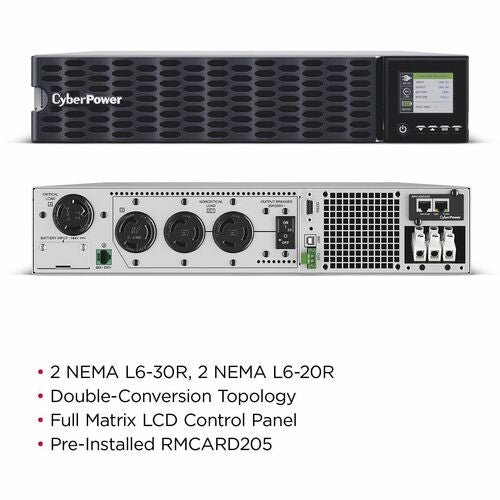

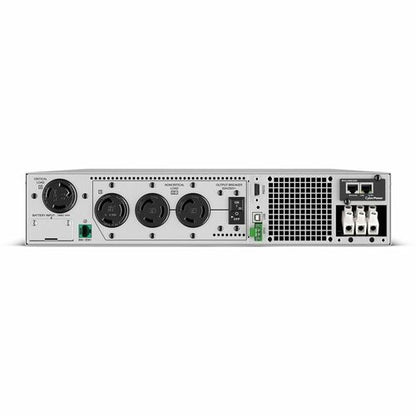

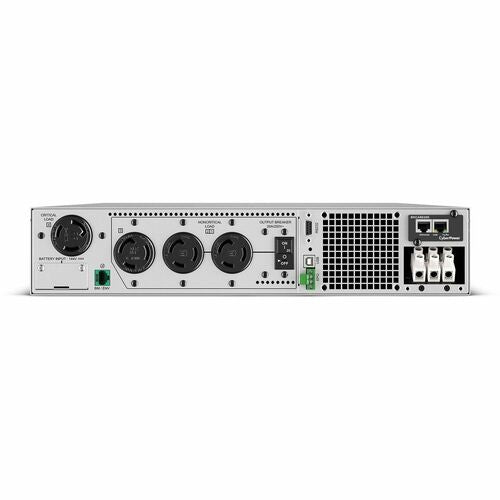

- Outlet types: 2 × NEMA L6-20R, 2 x NEMA L6-30R
- Communication ports: USB, Serial, SNMP, EPO

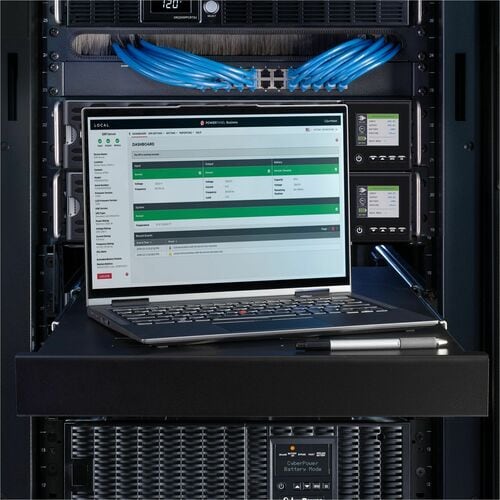

- Management software: PowerPanel® Business Edition
Technical Specifications
| Controls/Indicators | |
| Status Indicators |
Multi-Function Color TFT-LCD Readout that Supports:
|
| Display & Graphics | |
| Display | LCD |
| Interfaces/Ports | |
| USB | No |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 1186 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Sound Emission (A-Weighted) | 66 dB(A) |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | UPS Fault |
| Low Battery | |
| Battery Mode | |
| Overload | |
| Physical Characteristics | |
| Weight (Approximate) | 92.40 lb (41911.93 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |

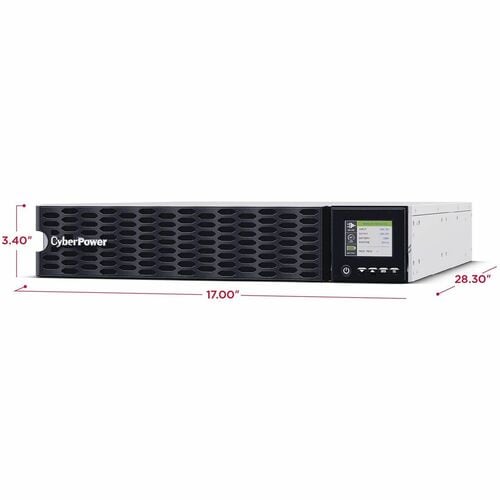

| Height | 3.40" (86.36 mm) |
| Width | 17" (431.80 mm) |
| Depth | 28.30" (718.82 mm) |
| Miscellaneous | |
| Additional Information |
Overload Protection:
Battery Mode:
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | OL5KRTHD |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OL5KRTHD |
| Product Name | Smart App Online OL5KRTHD 5000VA Rack/Tower UPS |
| Product Series | Smart App Online UPS |
| Brand Name | CyberPower |
| Product Condition | New |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 5700 mAh |
| Number of Batteries | 12 |
| Backup/Run Time (Half Load) | 7.90 Minute |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 4 Hour |
| Technical Information | |
| Efficiency | 96% |
| Overload Protection | Yes |
| Protection Type | Short Circuit |
| Backfeed | |
| Plug/Connector Type | Hardwired |
| Cord Length | 10 ft (3048 mm) |
| Receptacle Type | NEMA L6-20R |
| NEMA L6-30R | |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency: 96% |
| Transfer Time | 0 ns |
| Receptacle Detail | 2 x NEMA L6-20R |
| 2 x NEMA L6-30R | |
| Circuit Breaker Current Rating | 50 A |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Output Voltage | 240 V AC |
| 208 V AC | |
| 220 V AC | |
| 230 V AC | |
| 200 V AC | |
| Surge Energy Rating | 2430 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 200 V AC - 240 V AC |
| 120 V AC - 139 V AC | |
| Output Frequency | 60 Hz |
| 50 Hz | |
| Input Frequency | 70 Hz |
| 40 Hz | |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 5 kW |
| Input Power Factor | 0.99 |
| Output Power Factor | 1 |
