About the product

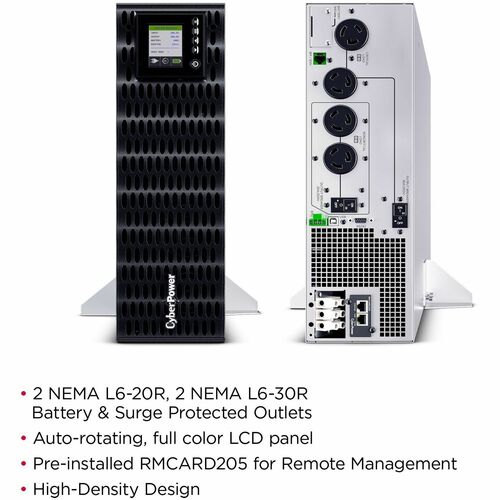

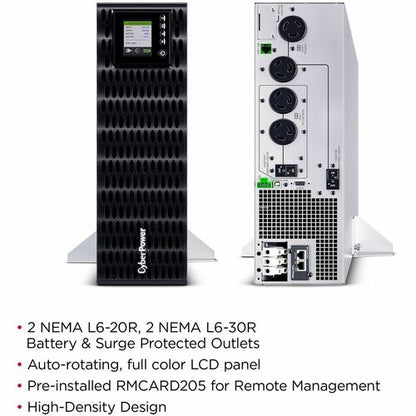

The CyberPower Smart App Online OL6KRTHDL high-density design offers more power and longer run times. The OL6KRTHDL features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

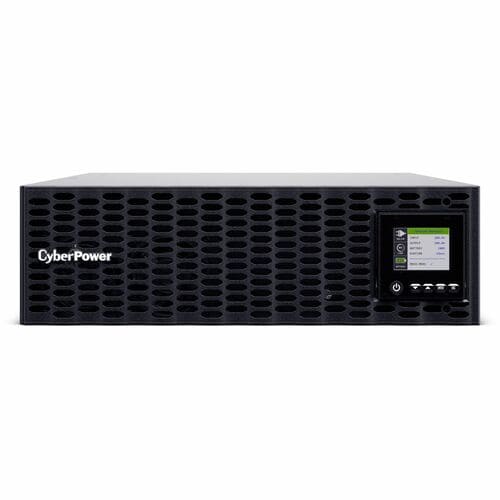

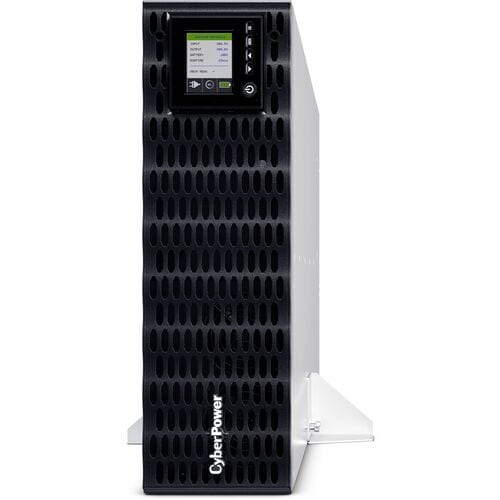

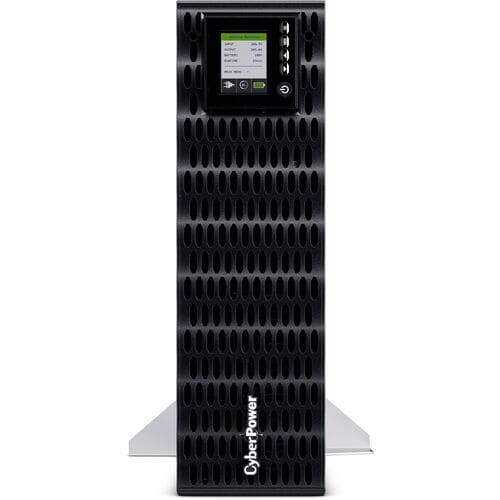

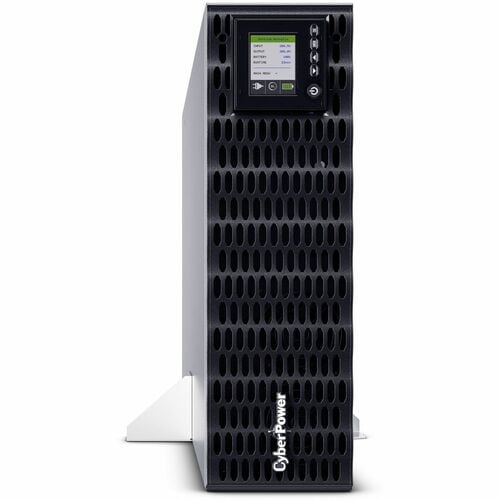

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL6KRTHDL ensures maximum efficiency and capacity output with a PowerFactor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enablesup to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.
The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.
- Capacity: 6000 VA / 6000 W

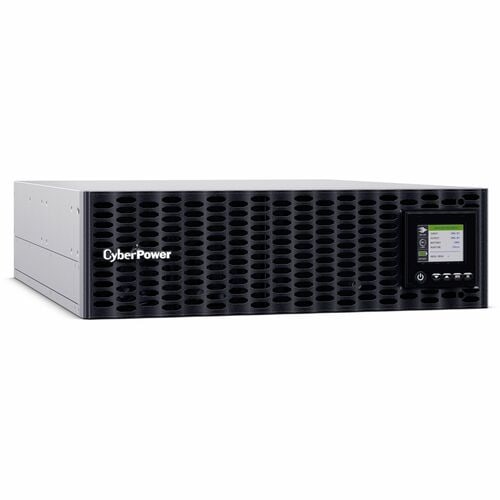

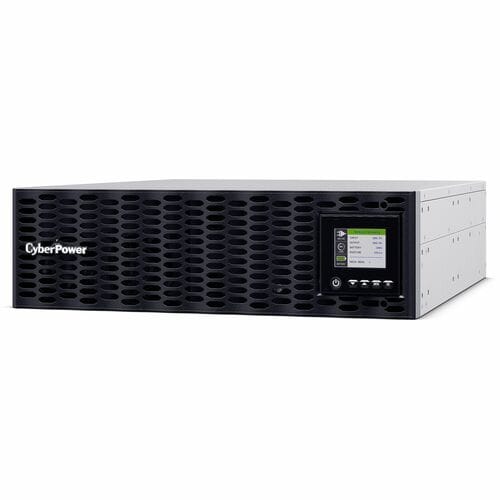

- High Density: 3U Size
- Power Factor (PF): 1
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
- Runtime (half/full): 10.4 minutes / 3.1 minutes
- Plug type & cord: Pre-Installed NEMA L6-30P Power Cord with Hardwire Option

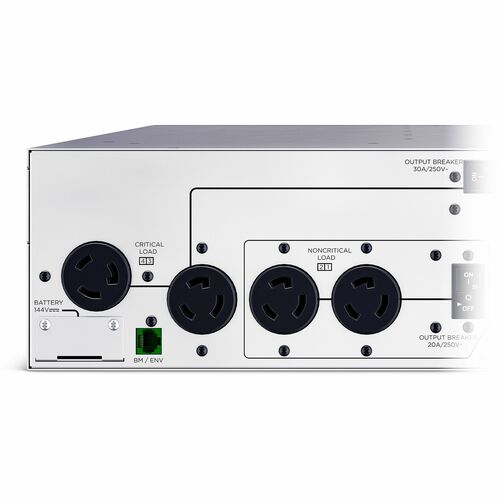

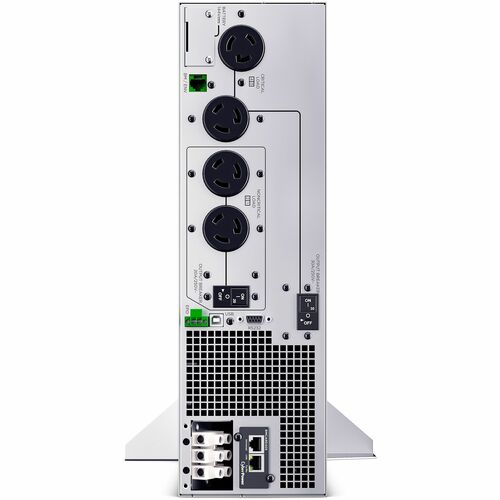

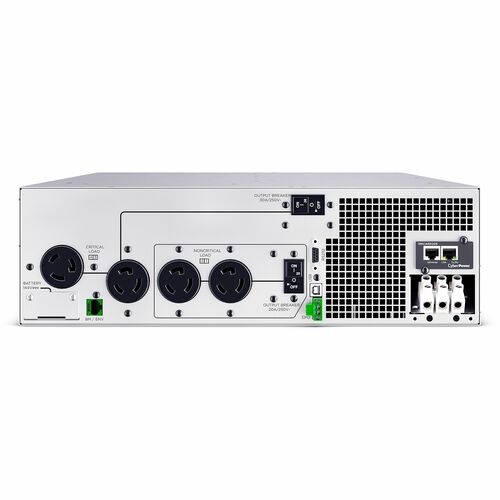

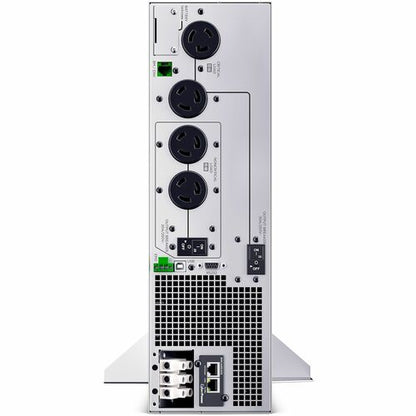

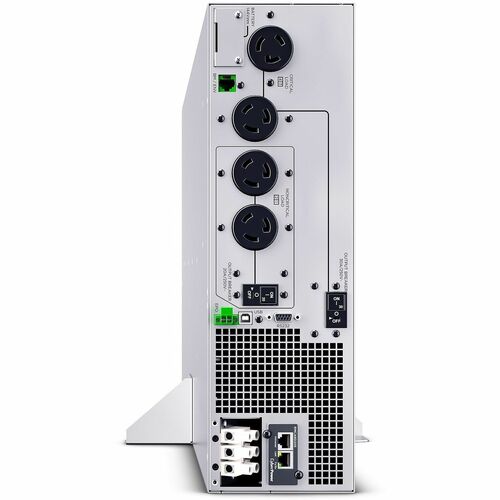

- Outlet types: 2 x NEMA L6-20R, 2 x NEMA L6-30R
- Communication ports: USB, Serial, SNMP, EPO
- Management software: PowerPanel® Business Edition
- Energy Saving: ECO Mode Efficiency >96%

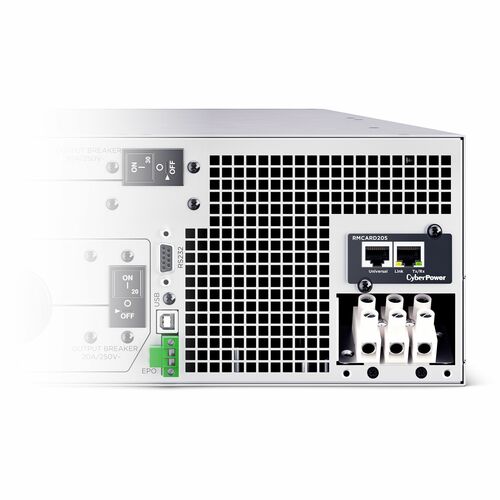

- Remote management:Yes, RMCARD205 pre-installed
- LCD Control Panel: Multi-Function Color
- Battery Equalization Technology: Yes
- Smart Battery Management: Yes
- Fast Charge Technology: Yes
- Warranty: 3 year
- Connected Equipment Guarantee: $300,000
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED Indicators:
LCD Display:
|
| Display & Graphics | |
| Display | LCD |
| Warranty | |
| Additional Warranty Information | Three-year warranty (including batteries) and $300,000 Connected Equipment Guarantee. |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | Web Browser/CLI/SNMP/NMS |
| Alarm | Overload |
| Low Battery | |
| Battery Mode | |
| UPS Fault | |
| Environmental Conditions | |
| Thermal Dissipation | 1613 BTU/h |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Sound Emission (A-Weighted) | 66 dB(A) |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerPanel® Business Edition |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | OL6KRTHDL |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OL6KRTHDL |
| Product Name | Smart App Online OL6KRTHDL 6000VA Rack/tower UPS |
| Product Line | Smart App Online |
| Brand Name | CyberPower |
| Physical Characteristics | |
| Weight (Approximate) | 117.99 lb (53520 g) |
| Form Factor | Rack/Tower |
| Rack Height | 3U |
| Height | 5.12" (130 mm) |
| Width | 17.01" (432 mm) |
| Depth | 28.31" (719 mm) |
| Product Color | Black |
| Color Family | Black |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 12 |
| Backup/Run Time (Half Load) | 10.40 Minute |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | No |
| Typical Battery Recharge Time | 4 Hour |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Output Voltage | 240 V AC |
| 230 V AC | |
| 208 V AC | |
| 200 V AC | |
| 220 V AC | |
| Surge Energy Rating | 2430 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 120 V AC - 139 V AC |
| 140 V AC - 159 V AC | |
| 200 V AC - 240 V AC | |
| 180 V AC - 280 V AC | |
| 160 V AC - 179 V AC | |
| Output Frequency | 60 Hz |
| 50 Hz | |
| Input Frequency | 70 Hz |
| 40 Hz | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
| Input Power Factor | 0.99 |
| Output Power Factor | 1 |
| Technical Information | |
| Application/Usage | VoIP |
| Network Equipment | |
| Corporate | |
| Electronic Device | |
| High-end System Component | |
| Server | |
| Infrastructure | |
| Lab Equipment | |
| Storage System | |
| Server Room | |
| Hyperconverged Infrastructure (HCI) | |
| Features | Green Energy Saving |
| Audible Alarm | |
| Cold Start Function | |
| Built-in Bypass Switch | |
| Plug/Connector Type | Hardwired |
| NEMA L6-30P | |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA L6-30R |
| NEMA L6-20R | |
| EMI/RFI Noise Filter | Yes |
| Transfer Time | 0 ns |
| Receptacle Detail | 2 x NEMA L6-30R |
| 2 x NEMA L6-20R | |
| Efficiency Detail | 96% (Eco Mode) |
