About the product
The CyberPower OL8K10KRT3UTF rack/tower step-down isolation transformer converts 208V input voltage originating from utility power, a UPS, or a generator to 120V output. A 10-foot cord (NEMA L6-30P plug) connects the OL8K10KRT3UTF to input power. Over temperature protection safeguards the transformer from damage if the internal heat exceeds safe operating parameters.

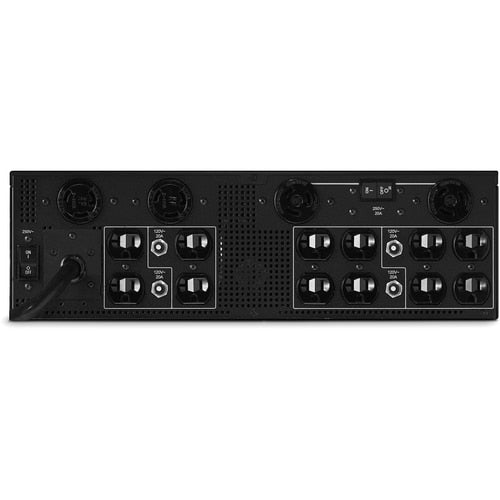

The OL8K10KRT3UTF has a capacity of 5,000 Watts. It features twelve (12) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. In addition it also has two (2) NEMA L6-20R and two (2) NEMA L6-30R outlets to power additional 208V equipment.
A Three-Year Warranty ensures that this device has passed our highest quality standards in design, assembly, material and workmanship.
The OL8K10KRT3UTF has a capacity of 5,000 Watts. It features twelve (12) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. In addition it also has two (2) NEMA L6-20R and two (2) NEMA L6-30R outlets to power additional 208V equipment.
A Three-Year Warranty ensures that this device has passed our highest quality standards in design, assembly, material and workmanship.
- Sep-Down Transformer
- 50Hz and 60Hz Supported
- Over Temperature Protection
- Resettable Input and Output Circuit Breakers
- Sep-Down Transformer
- 50Hz and 60Hz Supported
- Over Temperature Protection
- Resettable Input and Output Circuit Breakers
Technical Specifications
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Maximum Line Current | 24 A |
| Physical Characteristics | |
| Weight (Approximate) | 159.70 lb (72438.70 g) |
| Form Factor | Tower/Rack Mountable |
| Rack Height | 3U |
| Height | 5.25" (133.35 mm) |
| Width | 17" (431.80 mm) |
| Depth | 26" (660.40 mm) |
| Technical Information | |
| Power Rating | 5 kVA |
| Output Receptacle Detail | 2 x NEMA L6-20R |
| 12 x NEMA 5-20R | |
| 2 x NEMA L6-30R | |
| Output Receptacle Type | NEMA 5-20R |
| NEMA L6-30R | |
| NEMA L6-20R | |
| General Information | |
| Product Type | Step Down Transformer |
| Manufacturer Part Number | OL8K10KRT3UTF |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OL8K10KRT3UTF |
| Product Name | 5KW Step-down Transformer, 208V input, 208/120V output, 10ft cord, 3yr warranty |
| Product Line | Smart App Online |
| Brand Name | CyberPower |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | CyberPower UPS Systems |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
