About the product
Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers and more. Internal UPS circuits support entry-level PCs for up to 40 minutes or individual VCR/DVR components for as long as 2 hours during power failures. Prevents data loss, viewing interruptions and loss of programming. AVR circuits regulate brownouts as low as 89v back to usable levels without consuming battery power. Includes four battery-supported/surge-protected outlets, plus four additional surge suppression-only outlets for items not requiring battery support. USB port enables optional unattended system shutdown. Includes cable. HID-compliant USB interface enables full integration with built-in power management and auto shutdown of Windows, Mac OS X and Linux. Offers three-minute battery runtime with full load of 650VA/350W and 12 minute with half load of 325VA/175W.
- 650VA tower 120V line interactive UPS with LCD display
- Corrects brownouts as low as 89V without using battery power

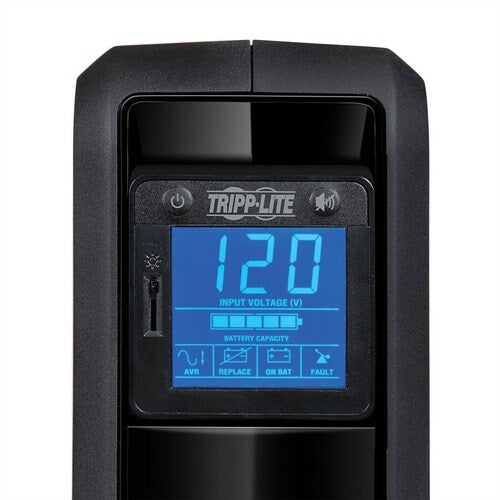

- LCD screen reports input voltage, battery charge and UPS status
- USB port, Surge-only outlets, 97% efficiency

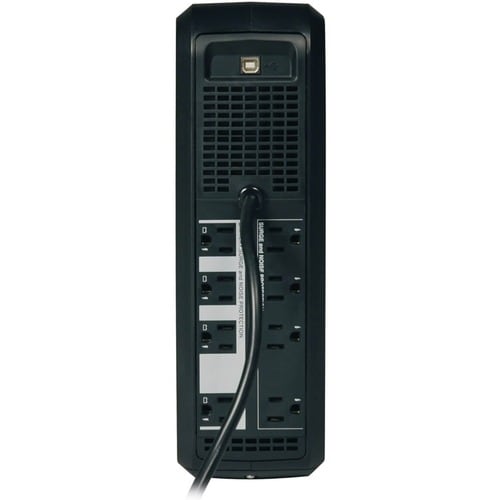

- NEMA 5-15P input plug and 8 NEMA 5-15R outlets
Technical Specifications
| Controls/Indicators | |
| Status Indicators |
|
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Interfaces/Ports | |
| USB | Yes |
| Management | |
| Alarm | Self-test Operation |
| Warranty | |
| Additional Warranty Information | 2-year warranty; $200,000 connected equipment insurance (USA & Canada Only). |
| Battery Information | |
| Backup/Run Time (Half Load) | 12 Minute |
| Backup/Run Time (Full Load) | 3.20 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Recycled | No |
| Assembly Required | No |
| Technical Information | |
| Protection Type | Brownout |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Physical Characteristics | |
| Weight (Approximate) | 14.60 lb (6622.45 g) |
| Height | 3.70" (94 mm) |
| Width | 12.01" (305 mm) |
| Depth | 7.20" (183 mm) |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 480 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Load Capacity (VA) | 650 VA |
| Load Capacity (Watt) | 350 W |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | OMNI650LCD |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Model | OMNI900LCD |
| Product Name | OmniSmart 650 VA Digital UPS |
| Product Line | OmniSmart |
| Brand Name | Tripp Lite by Eaton |
