About the product
Line interactive UPS system with eight outlets offers voltage regulation, surge suppression and long-lasting battery support for personal computers, Internet-working equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 60 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation circuits regulate brownouts as low as 83 volts back to usable levels without using battery power. Includes six battery-supported outlets for computer, monitor and one vital system peripheral, plus two additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in, single-line RJ phone suppression jacks protect modem, fax machine or cordless phone with a standard dial-up/DSL phone connection. Offers 7-minute battery runtime with a full load of 1000VA/500 watts and 18 minutes with a half load of 500VA/250 watts.

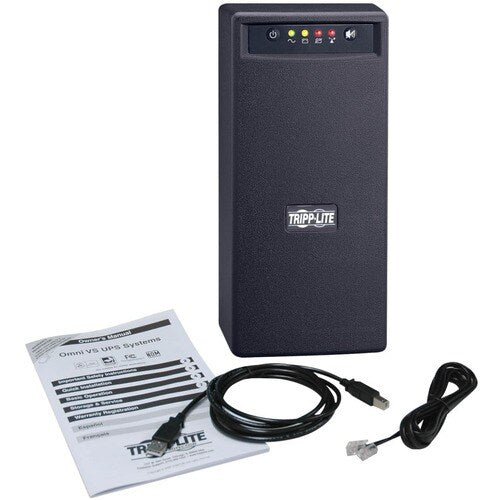

- 1000VA / 1kVA tower 120V line interactive UPS
- Corrects brownouts as low as 89V without using battery power

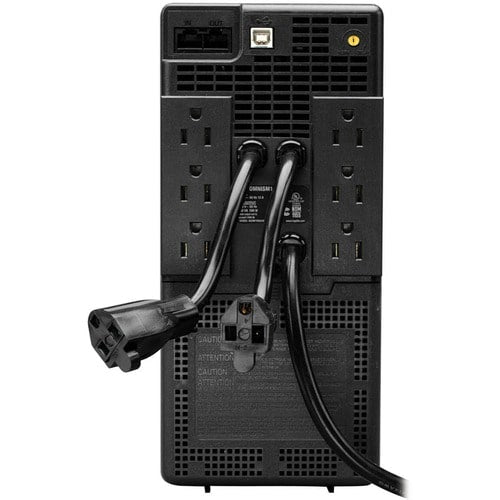

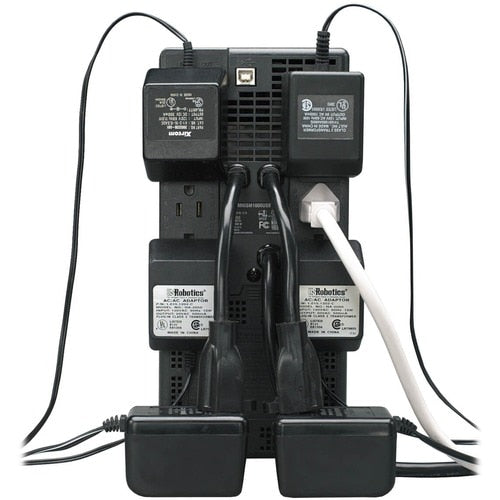

- 6 UPS battery supported outlets, 2 surge-only outlets
- USB port, TEL/DSL/ethernet protection
- NEMA 5-15P input plug and 8 NEMA 5-15R outlets
Technical Specifications
| Controls/Indicators | |

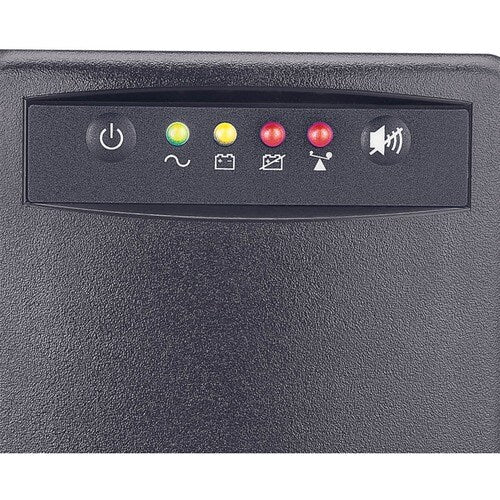

| Status Indicators | 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Interfaces/Ports | |
| USB | Yes |
| Management | |
| Alarm | On Battery |
| Warranty | |
| Additional Warranty Information | 2 year warranty. $200,000 connected equipment insurance (USA & Canada Only). |
| Battery Information | |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 14 Minute |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Country of Origin | China |
| Recycled | No |
| Assembly Required | No |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 480 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 500 W |
| Physical Characteristics | |
| Weight (Approximate) | 21 lb (9525.44 g) |
| Form Factor | Tower |
| Height | 10.75" (273.05 mm) |
| Width | 5.25" (133.35 mm) |
| Depth | 7.25" (184.15 mm) |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Dataline Protection | RJ-45 |
| Protection Type | Surge |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA 5-15R |
| Transfer Time | 4 ms |
| Receptacle Detail | 6 x NEMA 5-15R |
| 2 x NEMA 5-15R | |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | OMNIVS1000 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Name | 8-Outlet Line Interactive UPS System |
| Product Line | Omni |
| Product Series | VS |
| Brand Name | Tripp Lite by Eaton |
