About the product
Line Interactive UPS system with eight outlets offers voltage regulation, surge suppression and long-lasting, expandable battery support for personal computers, Internet-working equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation circuits regulate brownouts as low as 75 and overvoltages up to 147 volts back to usable 120V levels without using battery power. Includes six battery supported outlets for computer, monitor and one vital system peripheral, plus two additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in dataline suppression offers protection for equipment with single-line telephone/DSL or network Ethernet connection. Offers 5 minute battery runtime with a full load of 1500VA and 14 minutes with a half load of 750VA.
- 1500VA / 1.5kVA tower 120V line interactive extended-run UPS
- Corrects brownouts and overvoltages from 75 to 147V

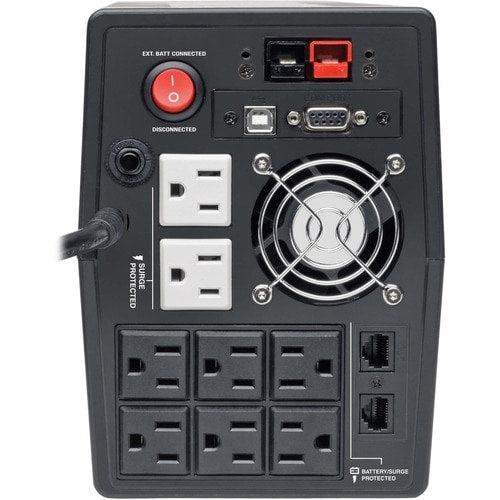

- 6 UPS battery supported outlets, 2 surge-only outlets
- USB port, TEL/DSL/ethernet protection, External battery pack options
- NEMA 5-15P input plug and 8 NEMA 5-15R outlets
Technical Specifications
| Controls/Indicators | |

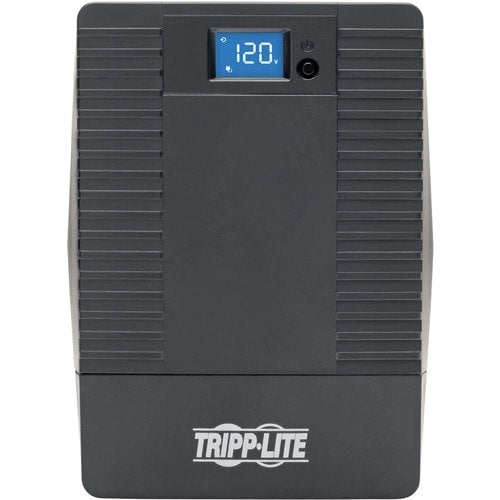

| Status Indicators | 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Interfaces/Ports | |
| USB | Yes |
| Management | |
| Alarm | On Battery |
| Warranty | |
| Additional Warranty Information | $200,000 connected equipment insurance (USA, Puerto Rico & Canada Only) |
| Battery Information | |
| Battery Life | 6 Year |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 14 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 480 J |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 940 W |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Recycled | No |
| Assembly Required | No |
| Physical Characteristics | |
| Weight (Approximate) | 32.20 lb (14605.67 g) |
| Form Factor | Tower |
| Height | 11.75" (298.45 mm) |
| Width | 7.25" (184.15 mm) |
| Depth | 7.50" (190.50 mm) |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Dataline Protection | RJ-45 |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA 5-15R |
| Transfer Time | 4 ms |
| Receptacle Detail | 2 x NEMA 5-15R |
| 6 x NEMA 5-15R | |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | OMNIVS1500XL |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Name | 8-Outlet UPS Power Protection System |
| Product Line | Omni |
| Product Series | VS |
| Brand Name | Tripp Lite by Eaton |
