About the product

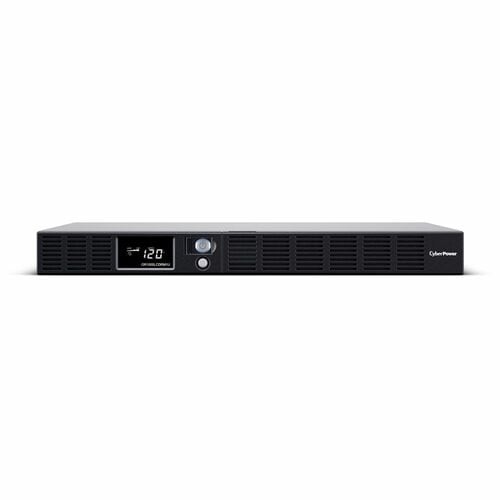

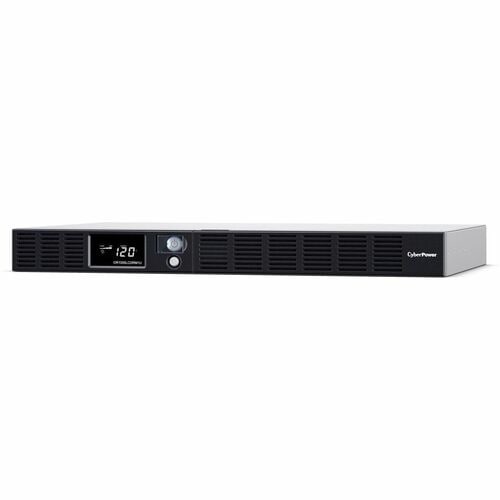

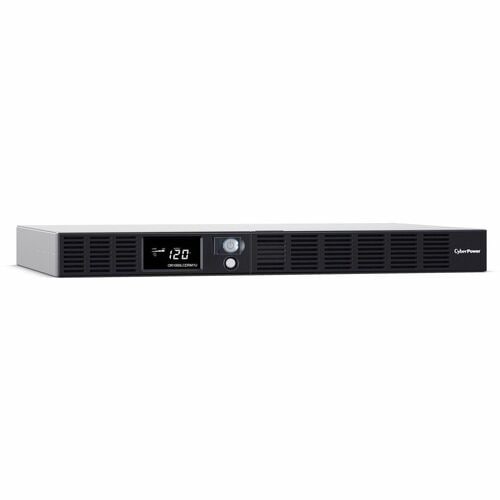

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1000LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1000LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1000LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
- Capacity: 1000 VA / 600 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 10%
- Plug type & cord: NEMA 5-15P, 10 ft. cord

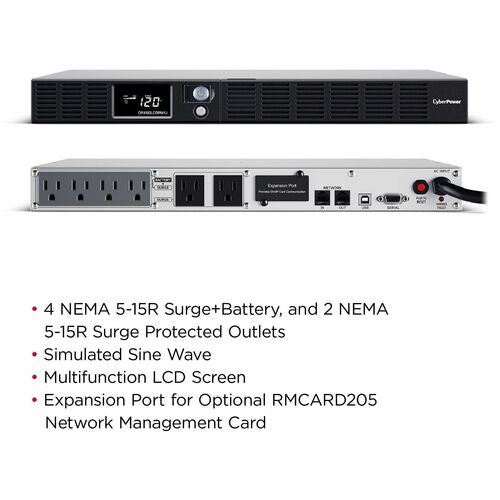

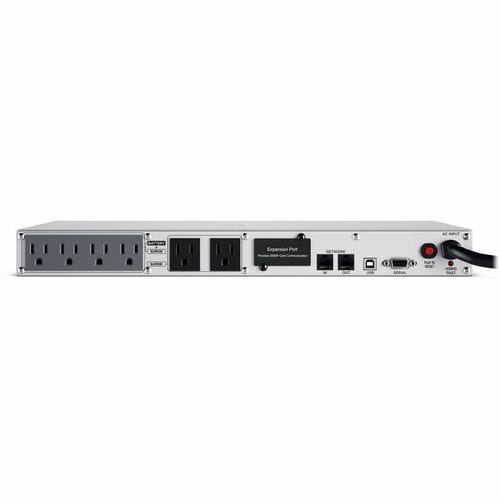

- Outlet types: 6 × NEMA 5-15R
- Communication: USB, Relay, SNMP
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- Warranty: 3 year
Technical Specifications
| Controls/Indicators | |
| Status Indicators | On Unit:
LCD Panel:
|
| Warranty | |
| Additional Warranty Information | CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge. |
| Environmental Conditions | |
| Maximum Operating Temperature | 95°F (35°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | Low Battery |
| Fault | |
| Overload | |
| Battery Mode | |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | OR1000LCDRM1U |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OR1000LCDRM1U |
| Product Name | Smart App LCD OR1000LCDRM1U 1000VA Rack-mountable UPS |
| Product Series | Smart App LCD UPS |
| Brand Name | CyberPower |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerPanel Business Edition Software |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 30.20 lb (13698.49 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |

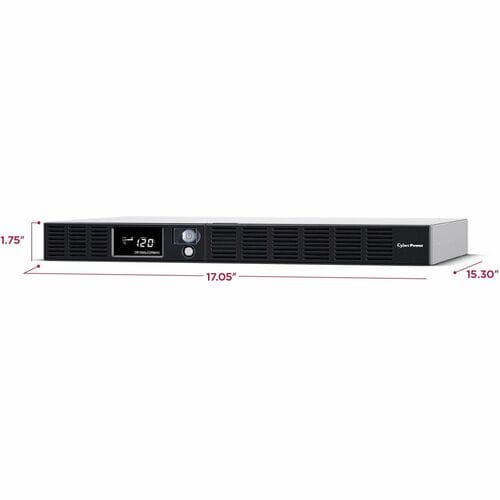

| Height | 1.75" (44.45 mm) |
| Width | 17.05" (433.07 mm) |
| Depth | 15.30" (388.62 mm) |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 120 V AC |
| Surge Energy Rating | 1150 J |
| Waveform Type | Simulated Sine Wave |
| Input Voltage Range | 90 V AC - 140 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 600 W |
| Battery Information | |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 6V |
| Battery Capacity | 7000 mAh |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 13 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Maintenance-free |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Technical Information | |
| Application/Usage | Workstation |
| Telecommunication | |
| Server | |
| Network Device | |
| Bypass Switch | Not Provided |
| Dataline Protection | RJ-45 |
| Emergency Power OFF | No |
| Overload Protection | Yes |
| Protection Type | Sag |
| Black Out | |
| AC Surge | |
| Dataline Surge | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 2 |
| Transfer Time | 8 ms |
| Receptacle Detail | 6 x NEMA 5-15R |
